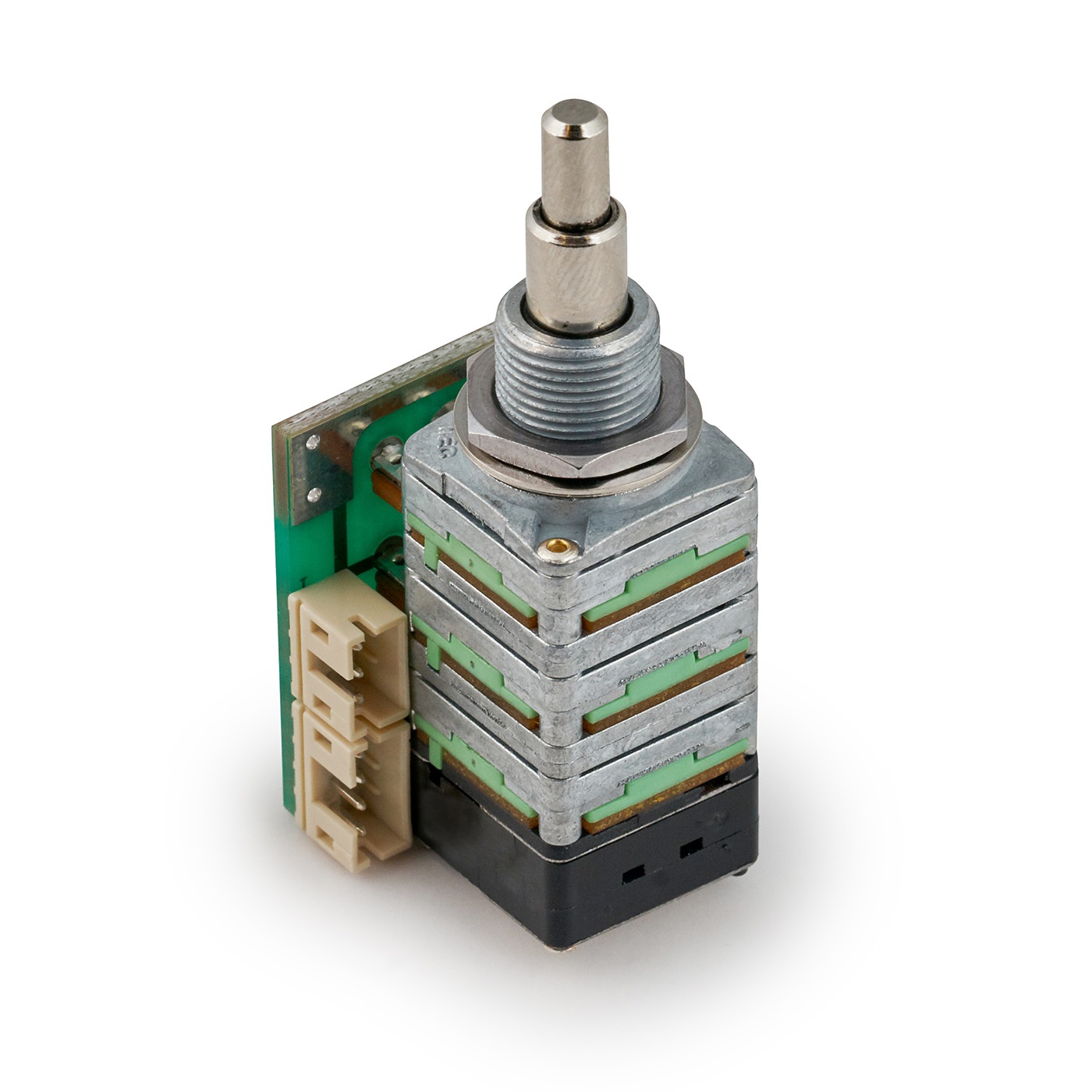

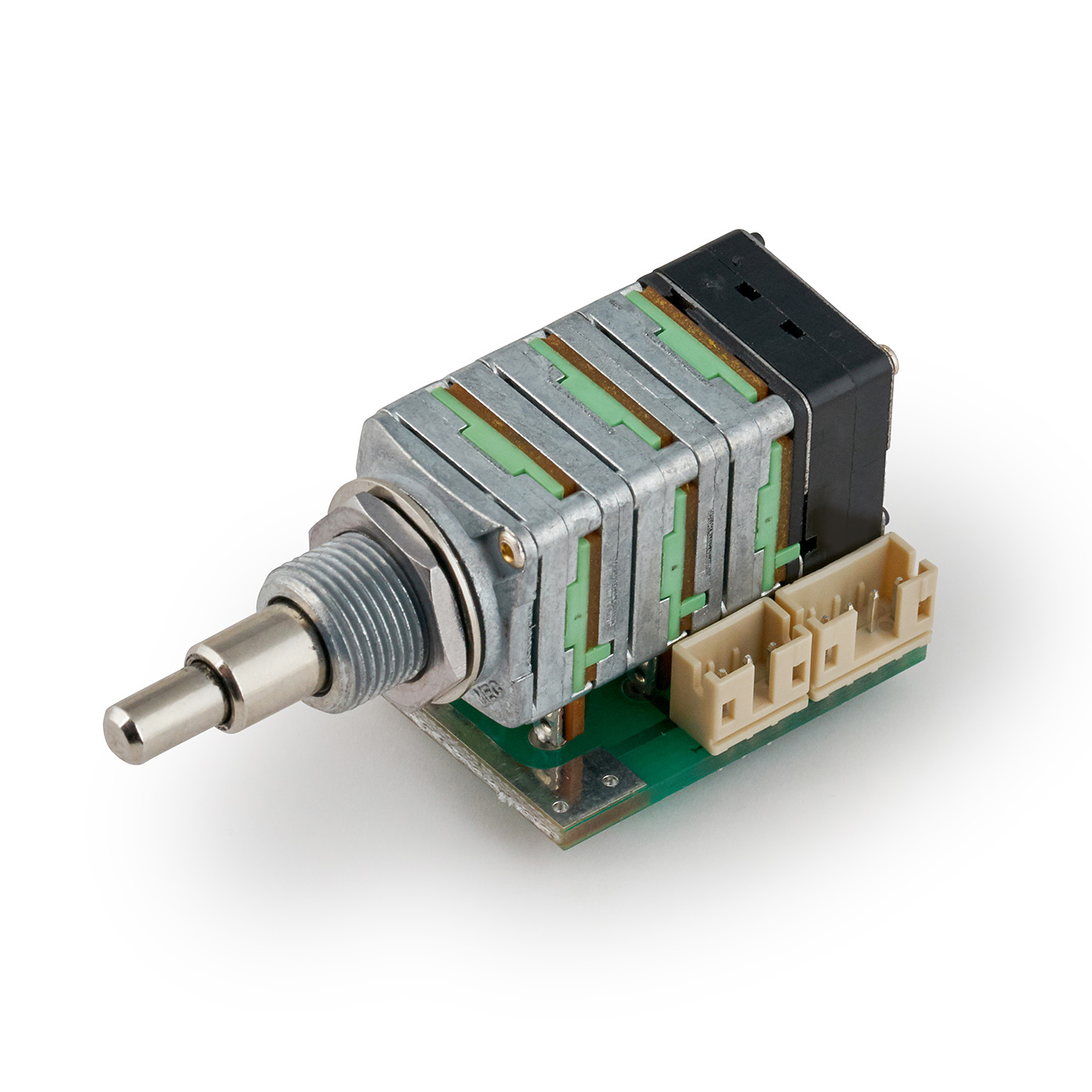

MEC Pickups Volume/Balance Push/Pull Poti Module for Passive Pickups - Vol (B500K) + Bal (05C&05A 220K), R5 Connector

Potentiometer Module

mono + balance potentiometer module with push/pull switch.
includes concentric shaft and solderless JST R5 connector.
suitable for volume control (R1) and balance (R2 & R3) for passive pickups.
thread size M10 x 0.75 mm with a mounting diameter of 10 mm.
dimensions including lugs: 24 x 22 x 32 mm.

Variants:

47⁸⁶ €

On order – delivery date confirmed after ordering Request details

Add to cart

also deliverable via

250 points of loyalty

Shipping 13.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Volume/Balance Push/Pull Poti Module for Passive Pickups - Vol (B500K) + Bal (05C&05A 220K), R5 Connector Add to cart: 47⁸⁶ €

- mono + balance potentiometer module with push/pull switch
- concentric shaft
- R1 = B500K (resistance 500 kOhm, (B) linear)
- R2 = 05A220K (resistance 220 kOhm, (A) logarithmic)
- R3 = 05C220K (resistance 220 kOhm, (C) inverse logarithmic)
- pre-equipped with PCB module
- solderless connector JST R5 2 mm
- On/On DPDT
- suitable for volume control (R1) and balance (R2 & R3) for passive pickups
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 14 mm (internal), 7 mm (external)
- shaft diameter 4 mm (internal), 6 mm (external)
- includes nut and washer
- dimensions incl. lugs (L x W x H) 24 x 22 x 32 mm

- Note: The return and refund policy does not apply to electronic components if their cables have been cut or soldered, if they show signs of use, if they have already been installed, or if other damages affecting the condition of the goods are present.
