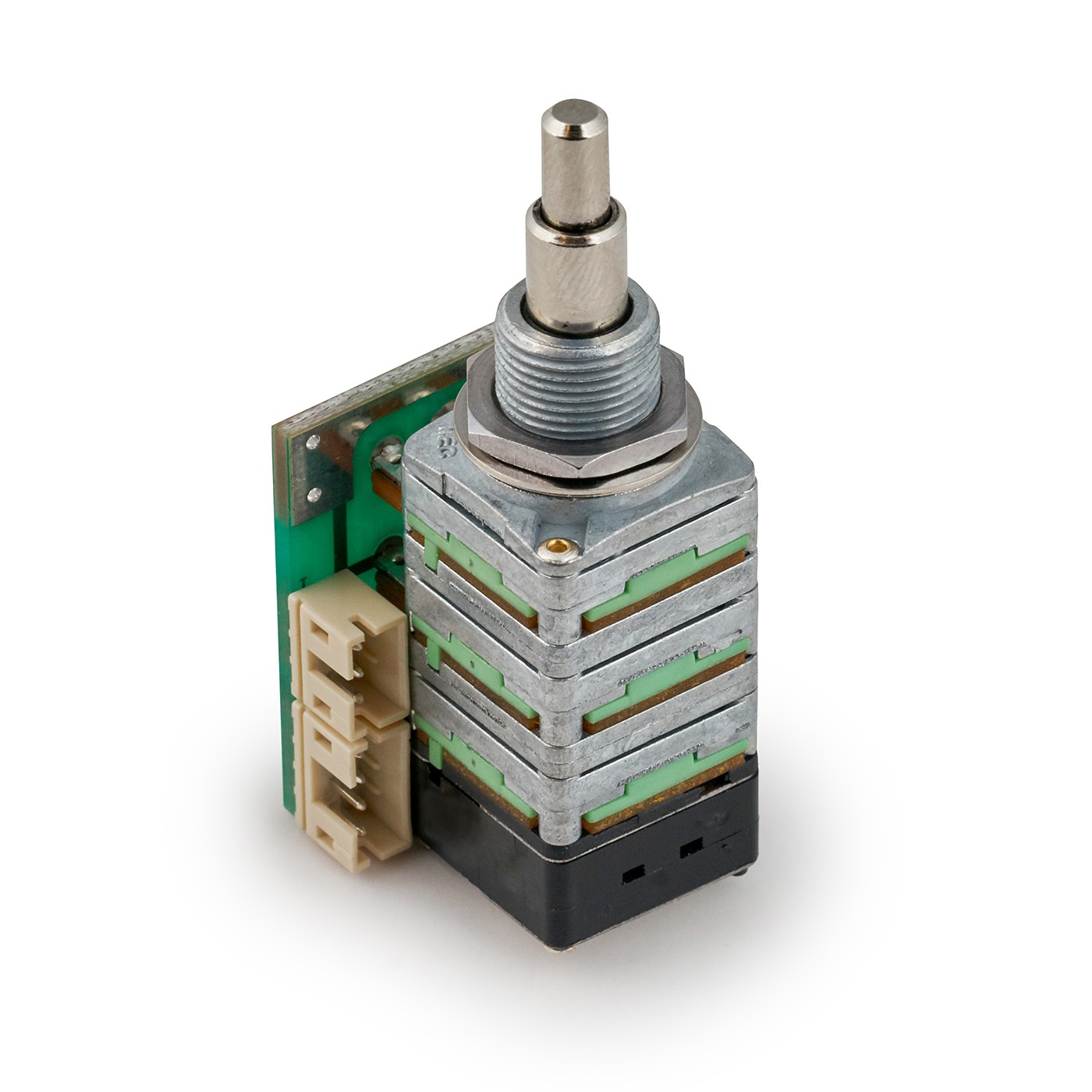

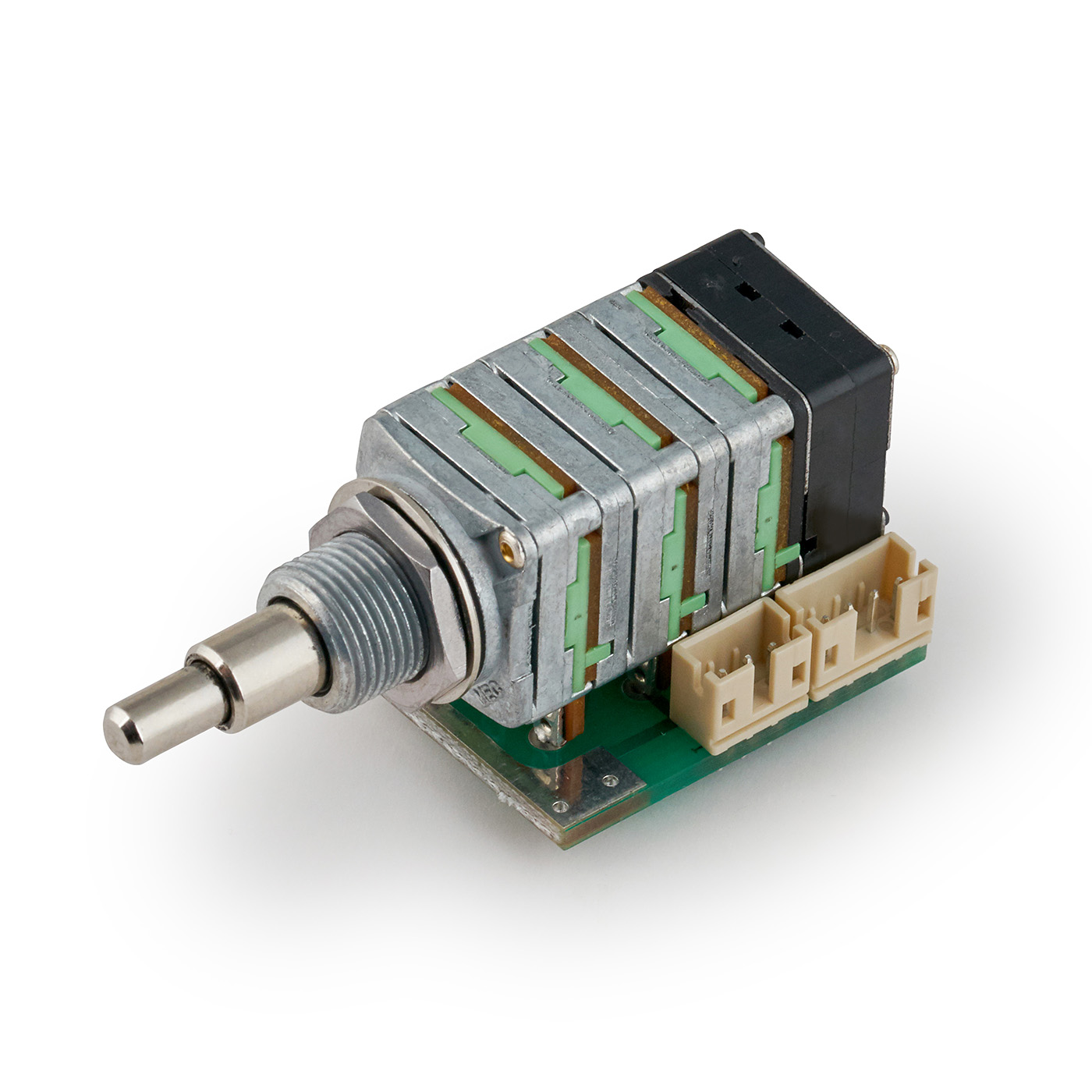

MEC Pickups Volume/Balance Push/Pull Poti Module for Active Pickups - Vol (B500K) + Bal (05C&05A 25K), R5 Connector

Potentiometer

mono potentiometer module with push/pull balance switch.
concentric shaft with solid construction.
suitable for volume control and balance for active pickups.
includes non-solder JST R5 connector and mounting hardware.
compact dimensions: 24 x 22 x 32 mm.

Variants:

48⁴³ €

On order – delivery date confirmed after ordering Request details

Add to cart

also deliverable via

253 points of loyalty

Shipping 13.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Volume/Balance Push/Pull Poti Module for Active Pickups - Vol (B500K) + Bal (05C&05A 25K), R5 Connector Add to cart: 48⁴³ €

- mono potentiometer module + balance with push/pull switch
- concentric shaft
- R1 = B500K (resistance 500 kOhm, (B) linear)
- R2 = 05A25k (resistance 25 kOhm, (A) logarithmic)
- R3 = 05C25k (resistance 25 kOhm, (C) inverse logarithmic)
- pre-equipped with PCB module
- On/On DPDT
- suitable for volume control (R1) and balance (R2 & R3) for active pickups
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 14 mm (internal), 7 mm (external)
- shaft diameter 4 mm (internal), 6 mm (external)
- non-solder JST R5 2 mm connector
- includes nut and washer
- dimensions incl. lugs (L x W x H) 24 x 22 x 32 mm

- Note: Return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have been installed, or other damages affecting the condition of the goods are present.
