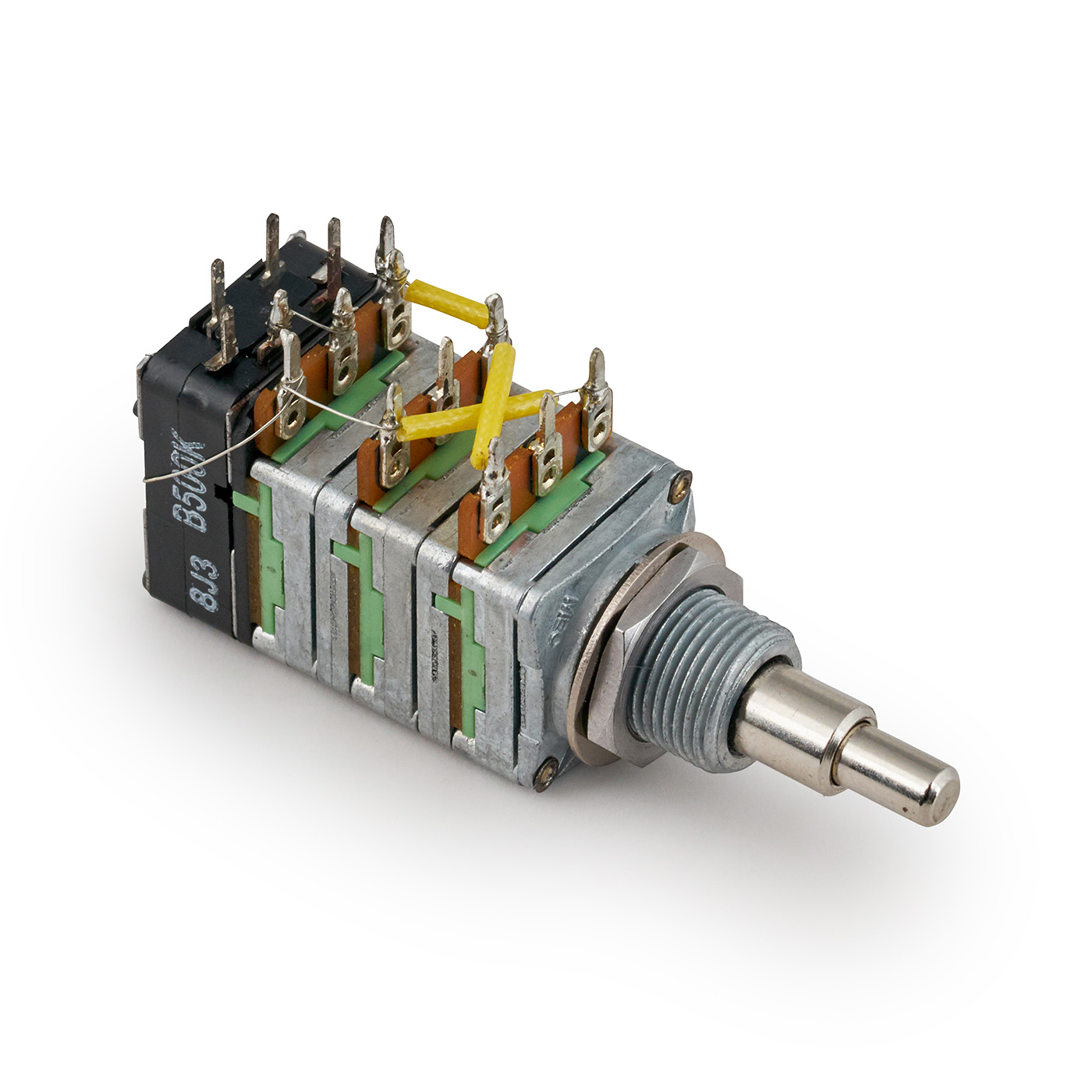

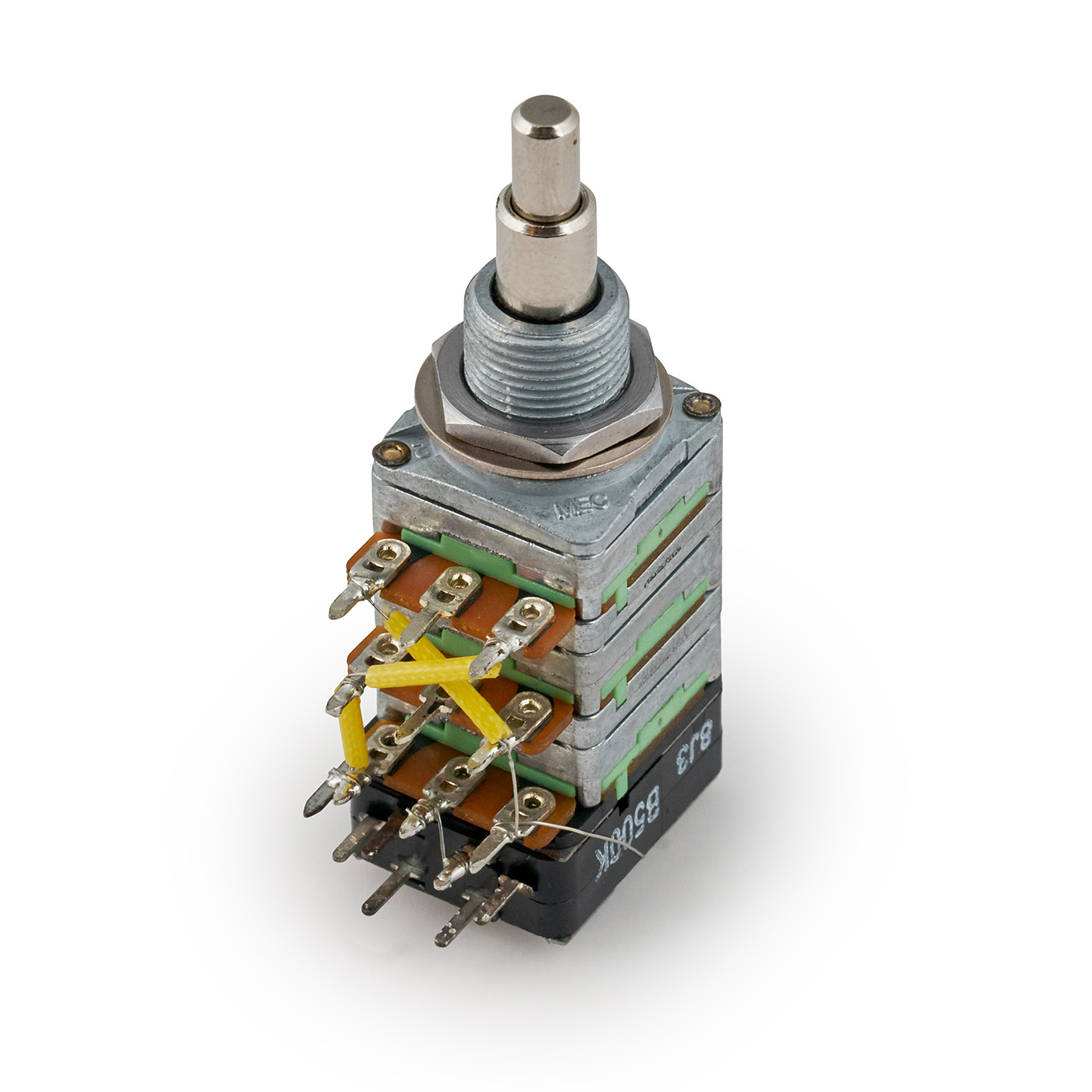

MEC Pickups Volume/Balance Push/Pull Poti Module for Active Pickups - Vol (B500K) + Bal (05C&05A 25K), Lefthand

Potentiometer

mono potentiometer module with push/pull balance switch.
concentric shaft with solid construction.
suitable for left-handed instruments and active pickups.
includes mounting hardware and dimensions of 24 x 16 x 31 mm.
note: Return policy does not apply if wires are cut or soldered.

48²⁴ €

On order – delivery date confirmed after ordering Request details

Add to cart

also deliverable via

252 points of loyalty

Shipping 13.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Volume/Balance Push/Pull Poti Module for Active Pickups - Vol (B500K) + Bal (05C&05A 25K), Lefthand Add to cart: 48²⁴ €

- Mono potentiometer module + balance with push/pull switch
- Concentric shaft
- R1 = B500K (resistance 500 kOhm, (B) linear)
- R2 = 05A25k (resistance 25 kOhm, (A) logarithmic)
- R3 = 05C25k (resistance 25 kOhm, (C) inverse logarithmic)
- Pre-soldered
- For left-handed instruments
- On/On DPDT
- Suitable for volume control (R1) & balance (R2 & R3) for active pickups
- Thread M10 x 0.75 mm
- Mounting diameter 10 mm
- Thread length 9 mm
- Solid shaft
- Shaft length 14 mm (internal), 7 mm (external)
- Shaft diameter 4 mm (internal), 6 mm (external)
- Includes nut & washer
- Dimensions incl. terminals (L x W x H) 24 x 16 x 31 mm

- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have already been installed or other damages affecting the condition of the goods are present.
