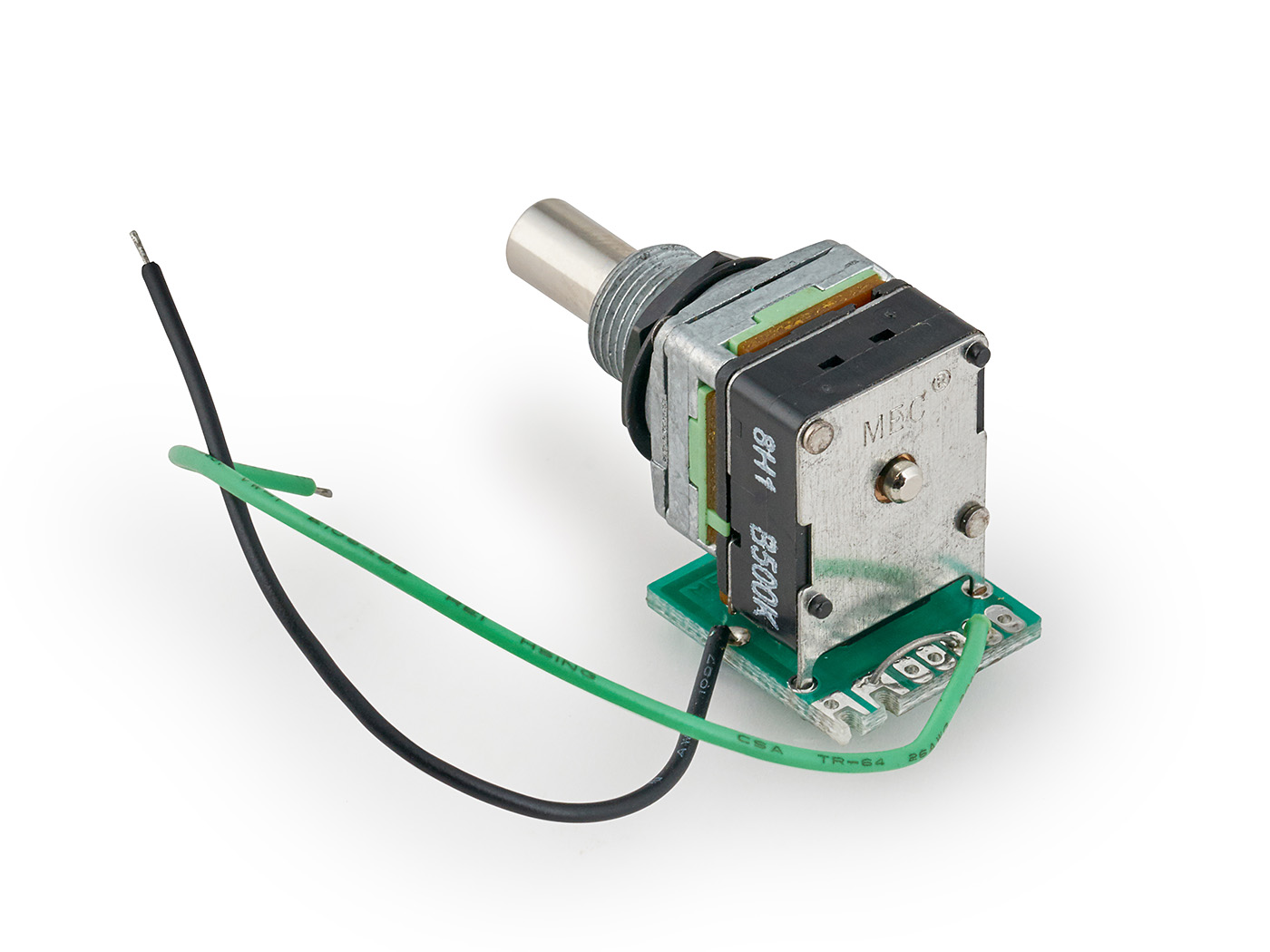

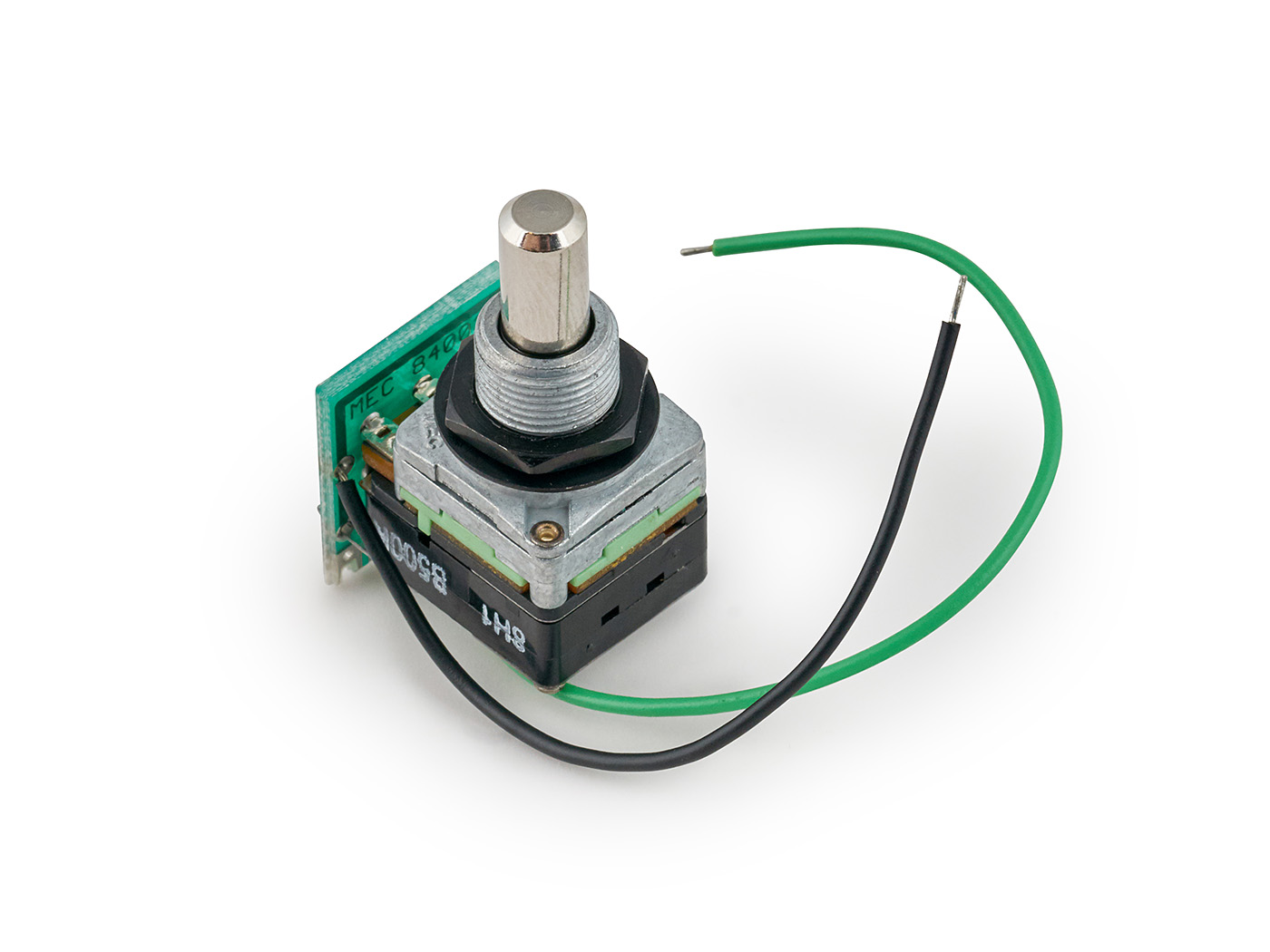

MEC Pickups Volume Pot Module, B500K, Push/Pull, with connection cables - Lefthand

Potentiometer Module

mono potentiometer module with push/pull switch for versatile control.
b500K linear resistance, ideal for left-handed instruments.
pre-equipped with MEC M 84003 PCB module for easy installation.
suitable for use as volume control for passive pickups.
compact dimensions with solid construction for durability.

Variante:

39⁵⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

205 points of loyalty

Shipping 13.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Volume Pot Module, B500K, Push/Pull, with connection cables - Lefthand Add to cart: 39⁵⁰ €

- Mono potentiometer module with push/pull switch
- Simple shaft
- B500K (resistance 500 kOhm, (B) linear)
- For left-handed instruments
- On/On DPDT
- Pre-equipped with MEC M 84003 PCB module
- Suitable for use as volume control for passive pickups
- Thread M10 x 0.75 mm
- Mounting diameter 10 mm
- Thread length 9 mm
- Solid shaft
- Shaft length 11 mm
- Shaft diameter 6 mm
- Includes nut and washer
- Dimensions incl. terminals (L x W x H) 24 x 18 x 22 mm
