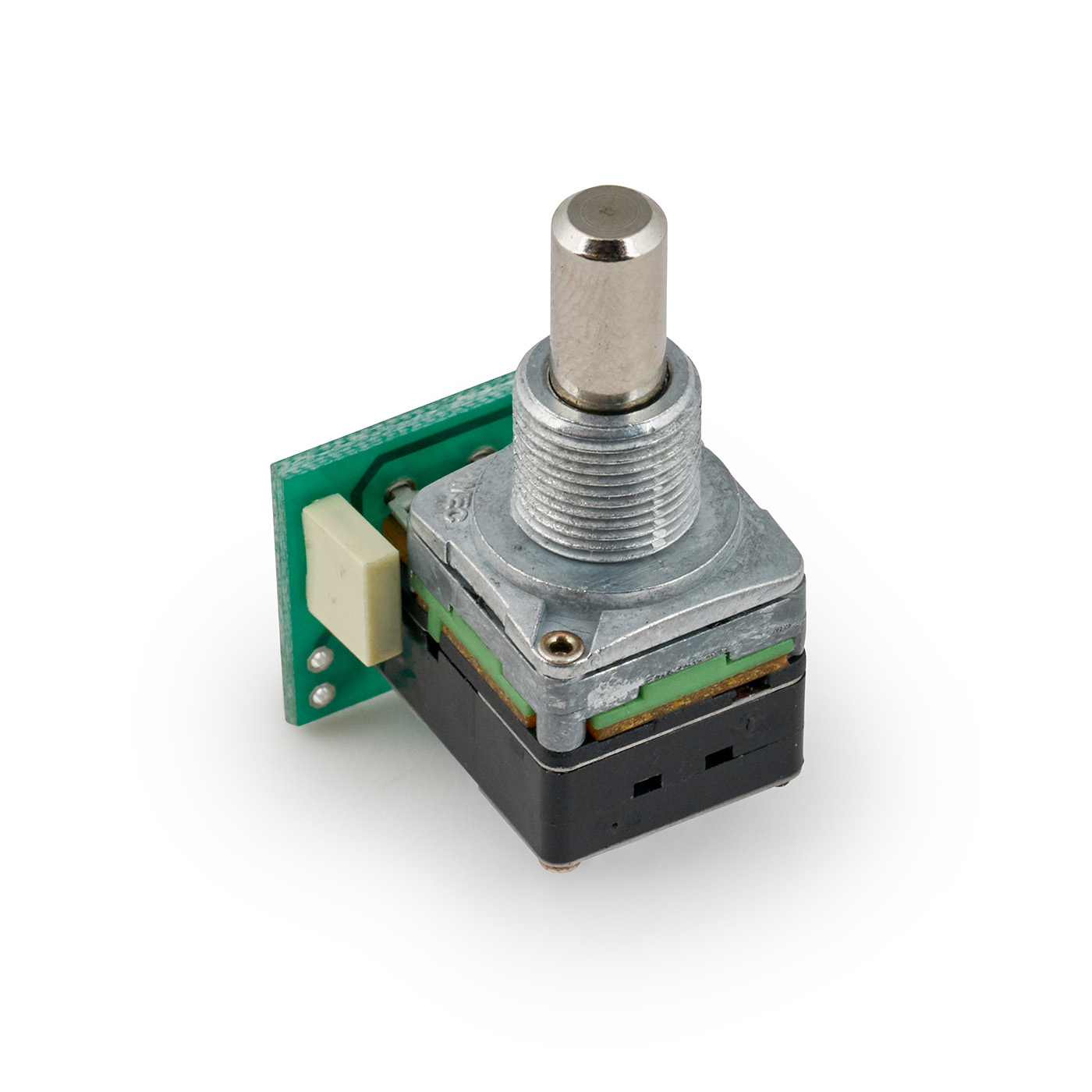

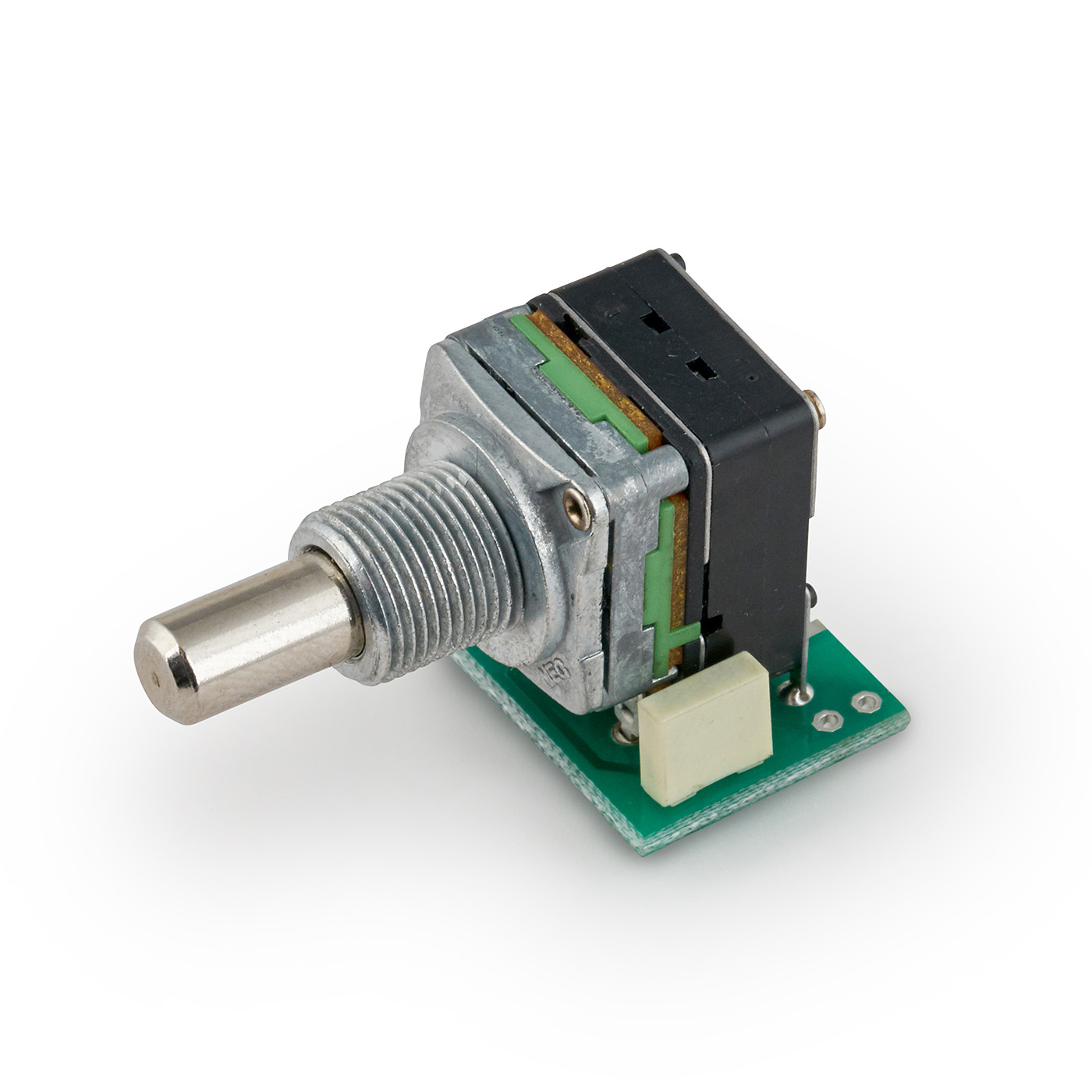

MEC Pickups Tone Pot Module, A500K Push/Pull, w/ 22 NF Capacitor

Potentiometer Module

mono potentiometer module with push/pull switch.
a500K logarithmic resistance (500 kOhm).
pre-soldered with 22 nF capacitor, suitable for passive pickups.
includes nut and washer, solid shaft with 11 mm length.
dimensions: 24 x 24 x 21 mm including terminals.

29⁷⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

154 points of loyalty

Shipping 13.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Tone Pot Module, A500K Push/Pull, w/ 22 NF Capacitor Add to cart: 29⁷⁷ €

- mono potentiometer module with push/pull switch
- single shaft
- A500K (resistance 500 kOhm, (A) logarithmic)
- pre-soldered with 22 nF capacitor
- On/On DPDT
- suitable for use as tone control for passive pickups
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 11 mm
- shaft diameter 6 mm
- includes nut and washer
- dimensions incl. terminals (L x W x H) 24 x 24 x 21 mm
- Note: Return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have been installed already, or other damages affecting the condition of the goods are present.
