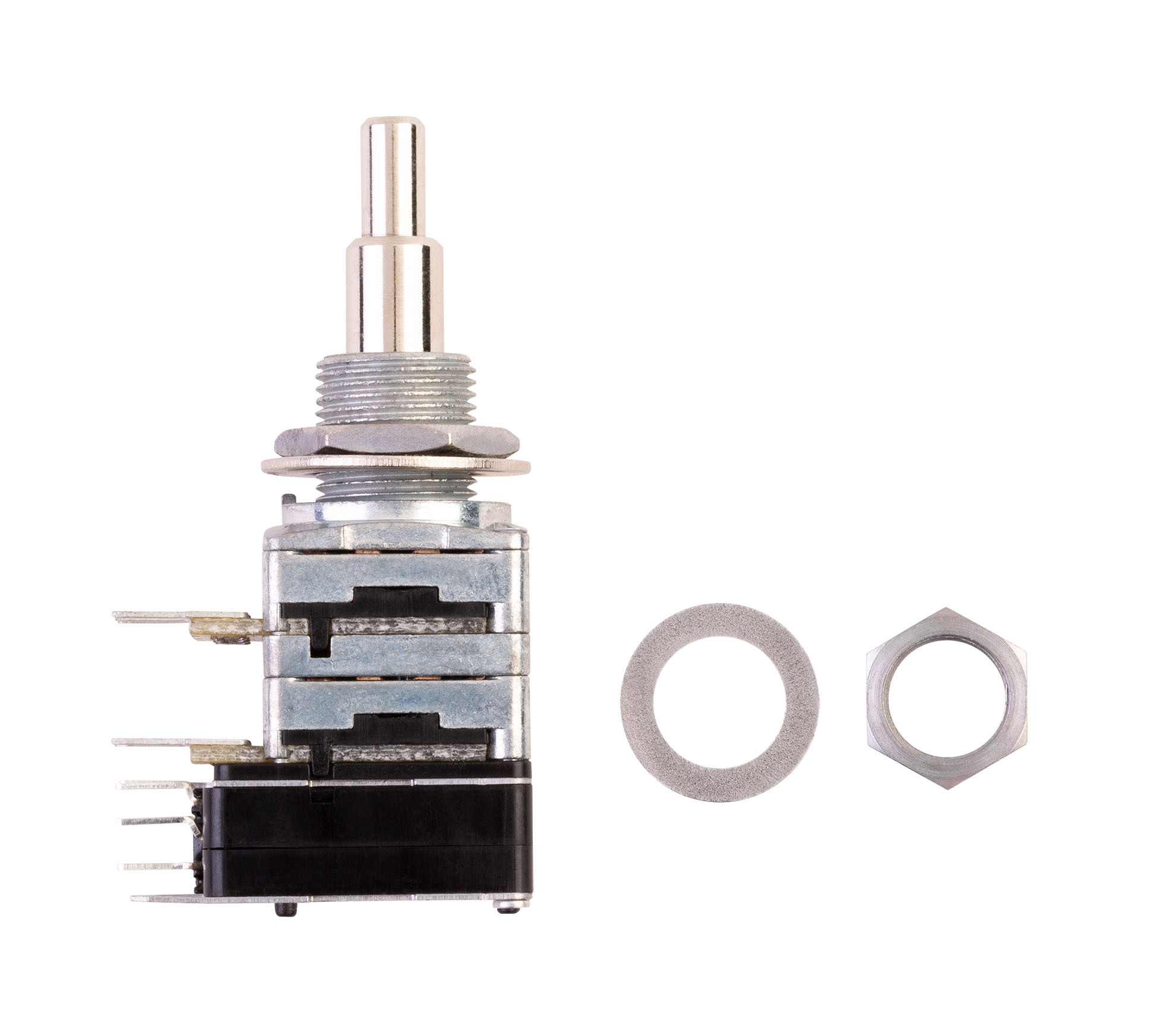

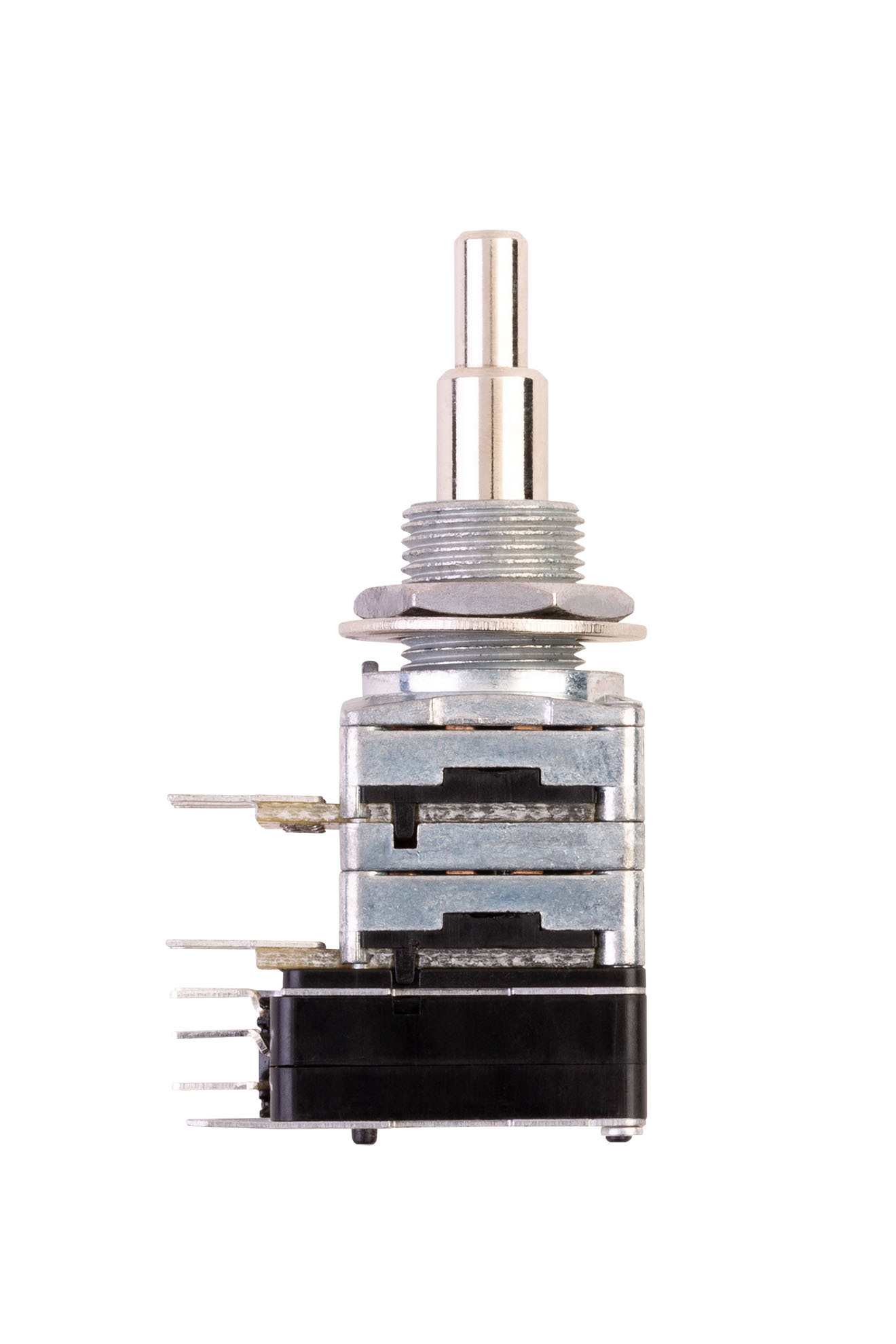

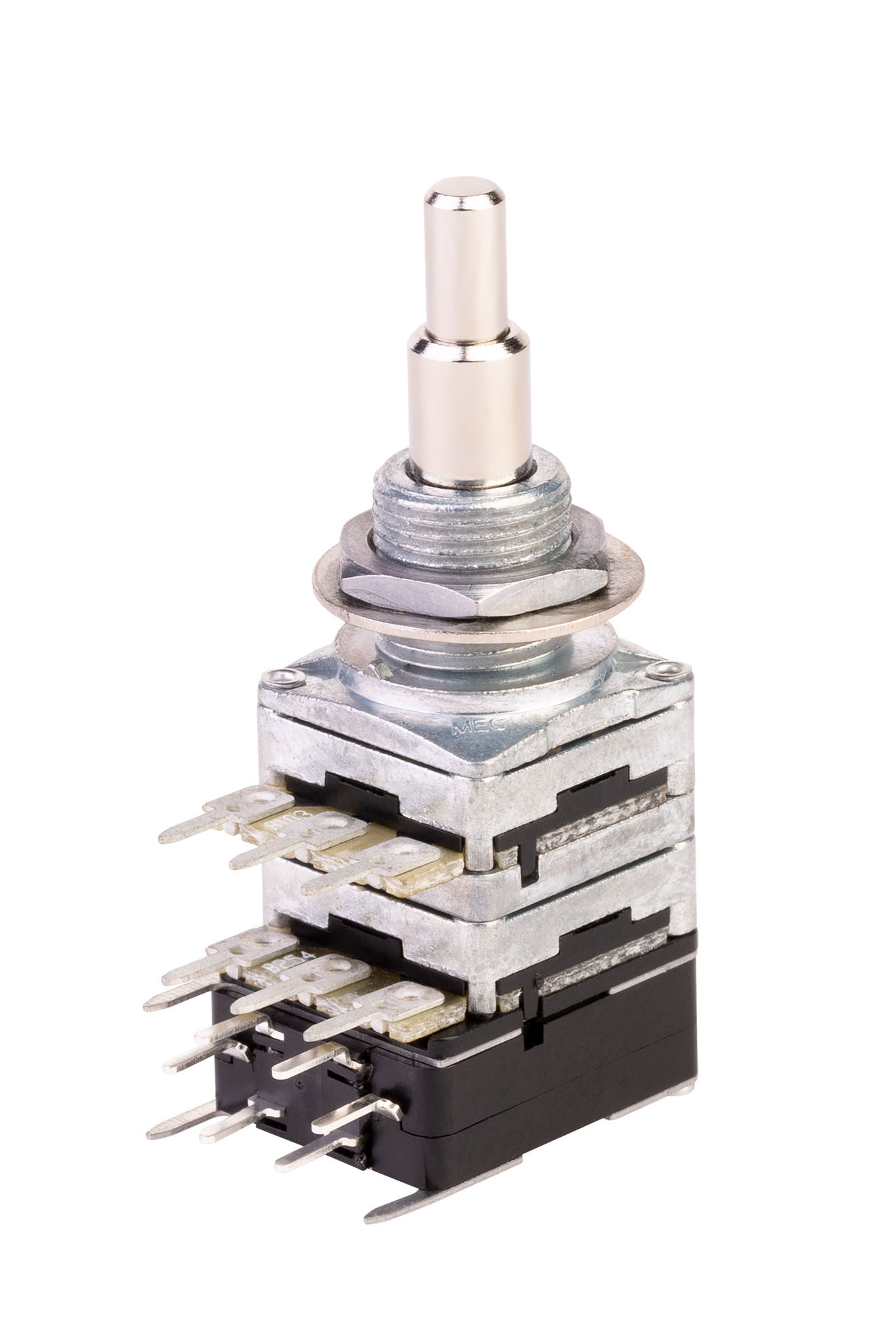

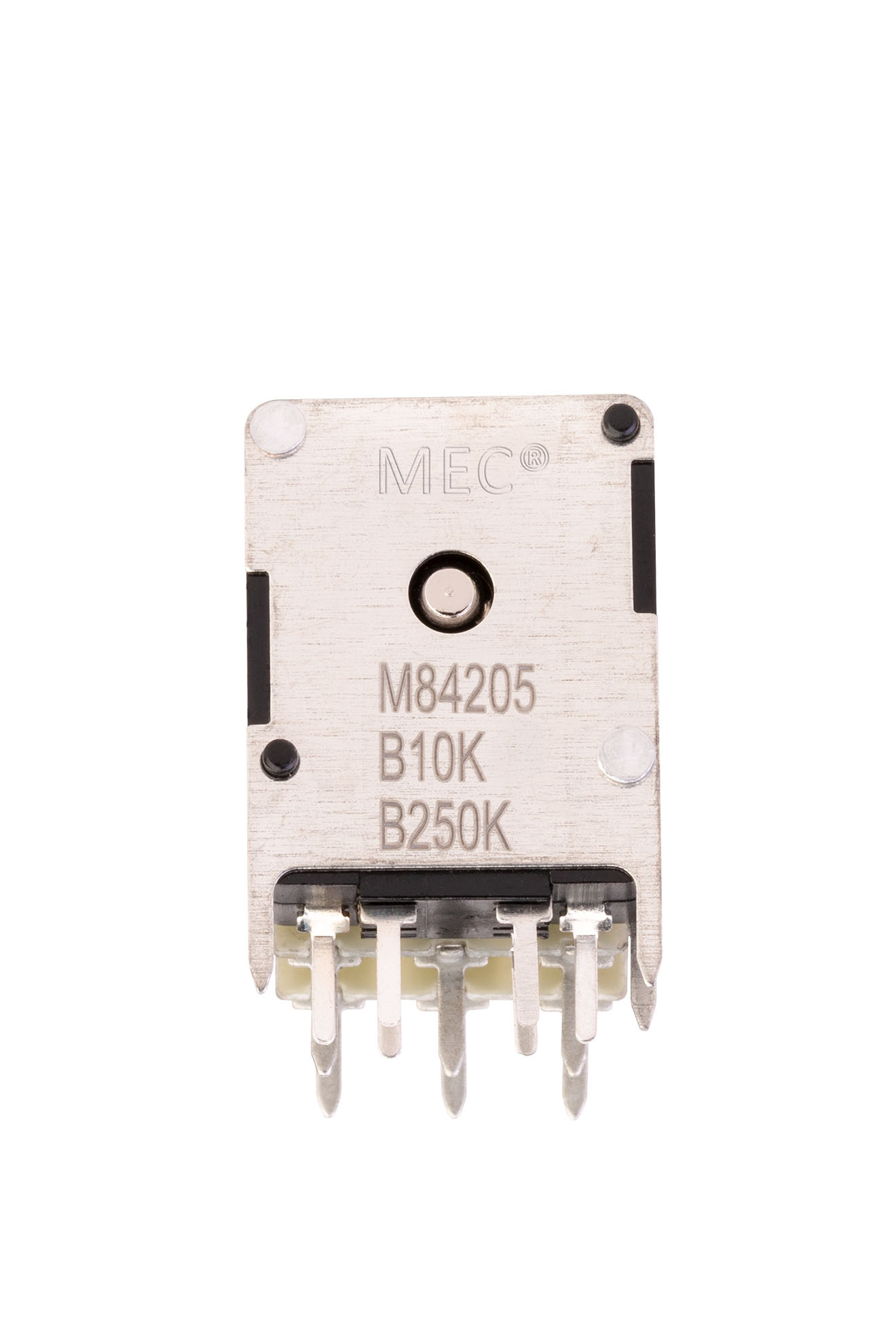

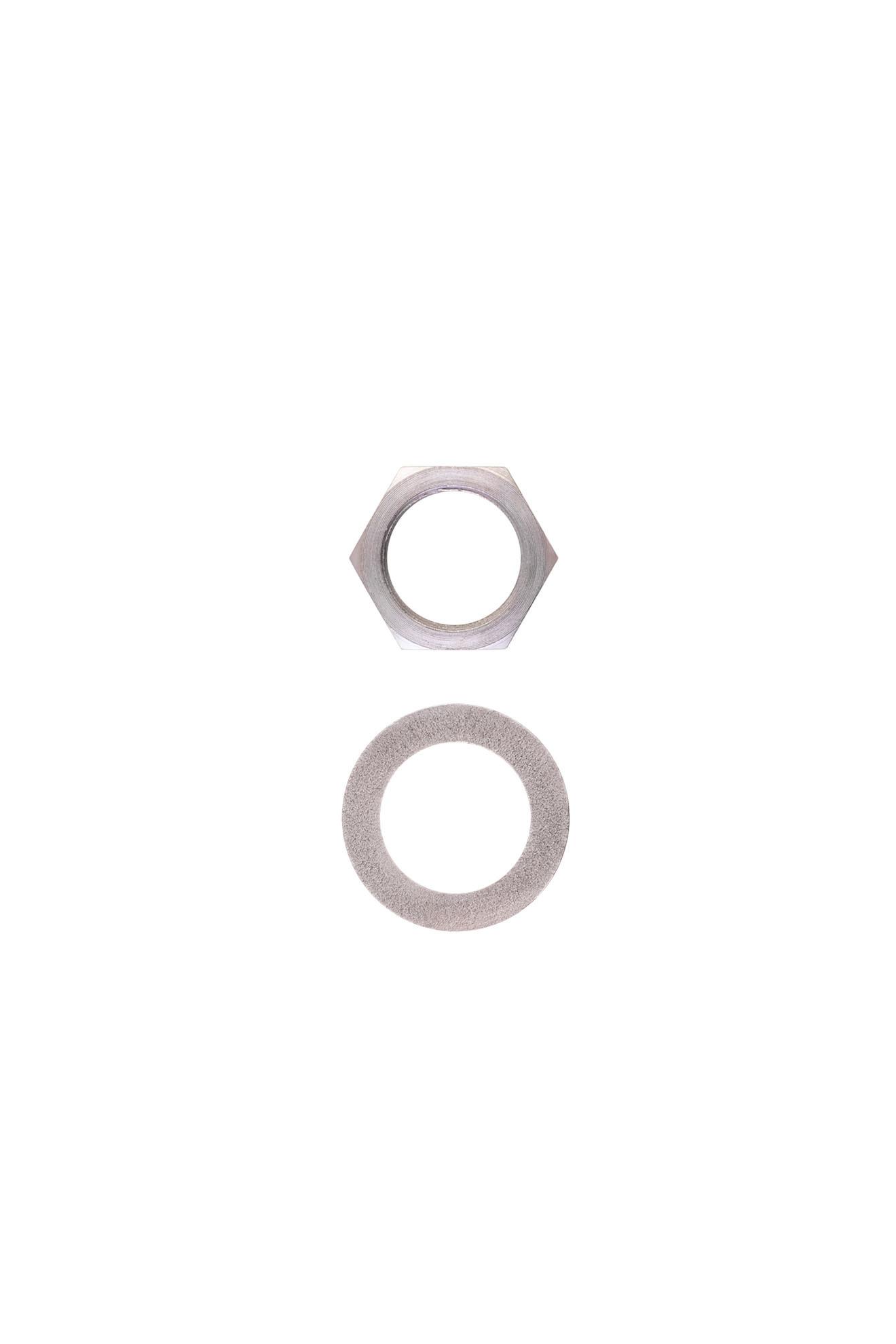

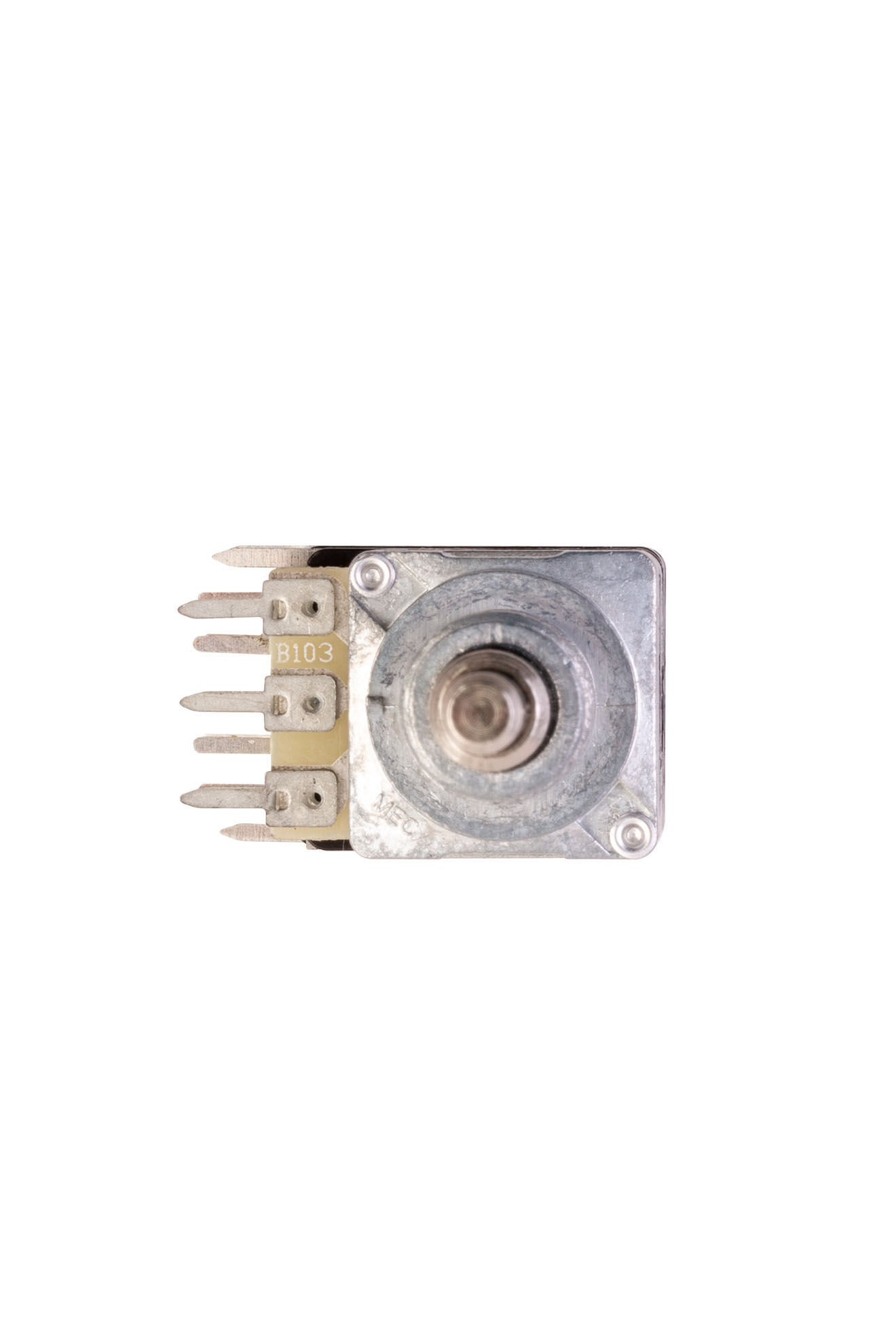

- dual mono potentiometer with push/pull switch - concentric shaft - R1 = B10K (resistance 250 kOhm, (B) linear) - R2 = B250K (resistance 250 kOhm, (B) linear) - On/On DPDT - suitable for use as volume + volume or tone + tone control for active pickups - thread M10 x 0.75 mm - mounting diameter 10 mm - thread length 9 mm - solid shaft - shaft length 14 mm (internal), 7 mm (external) - shaft diameter 4 mm (internal), 6 mm (external) - includes nut and washer - dimensions incl. terminals (L x W x H) 24 x 16 x 24 mm
- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have already been installed, or if other damages affecting the condition of the goods are present.
