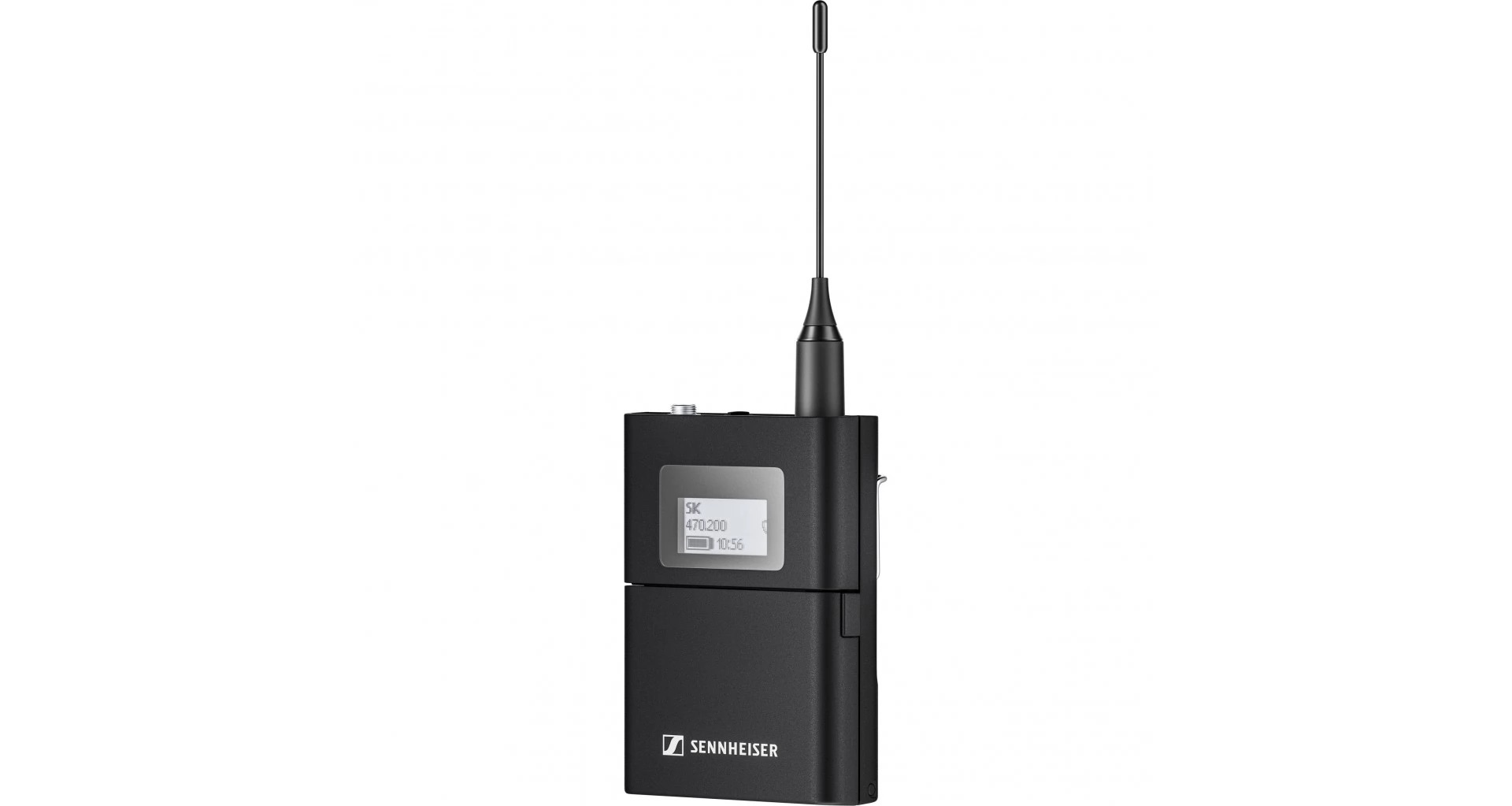

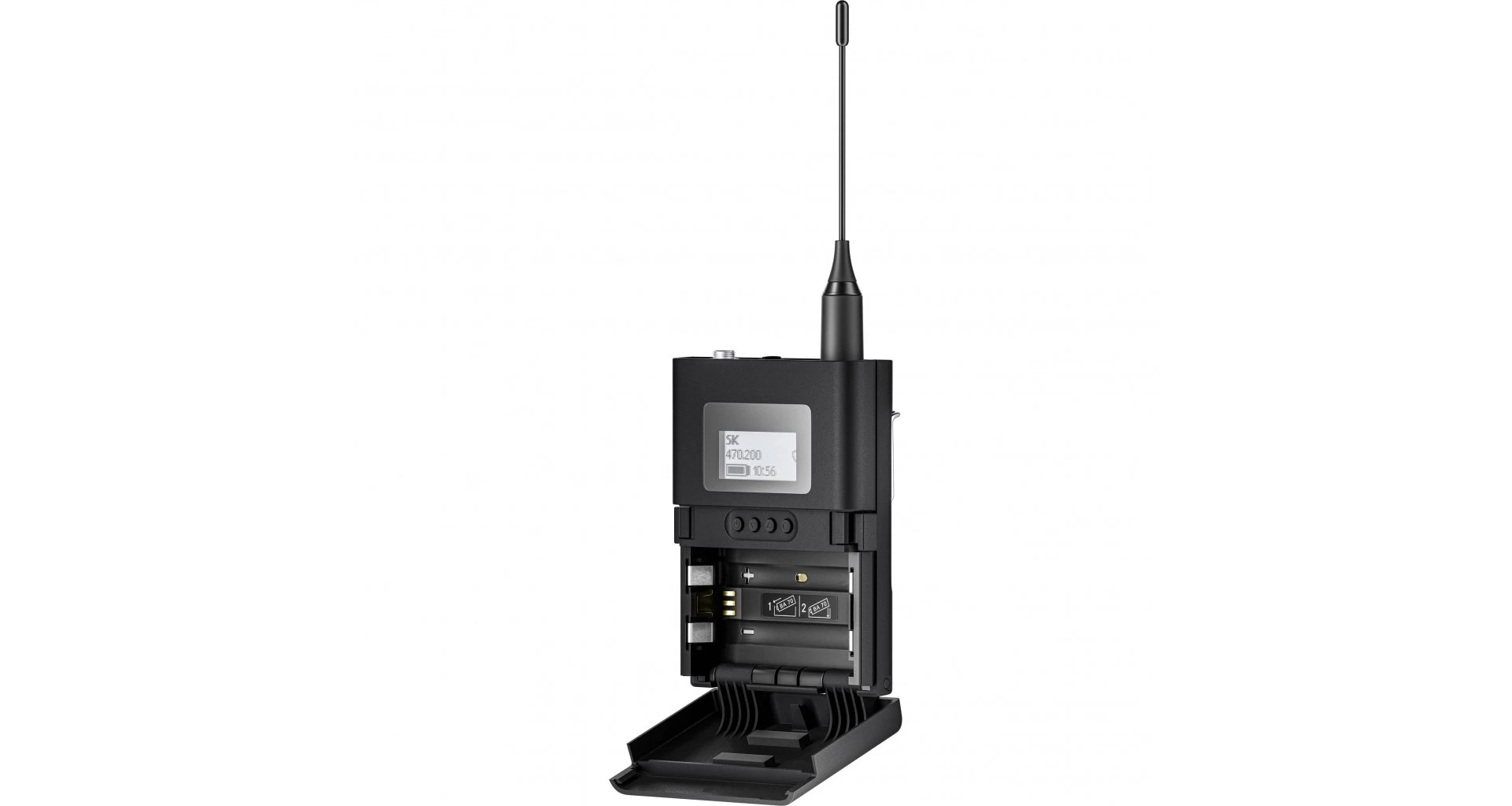

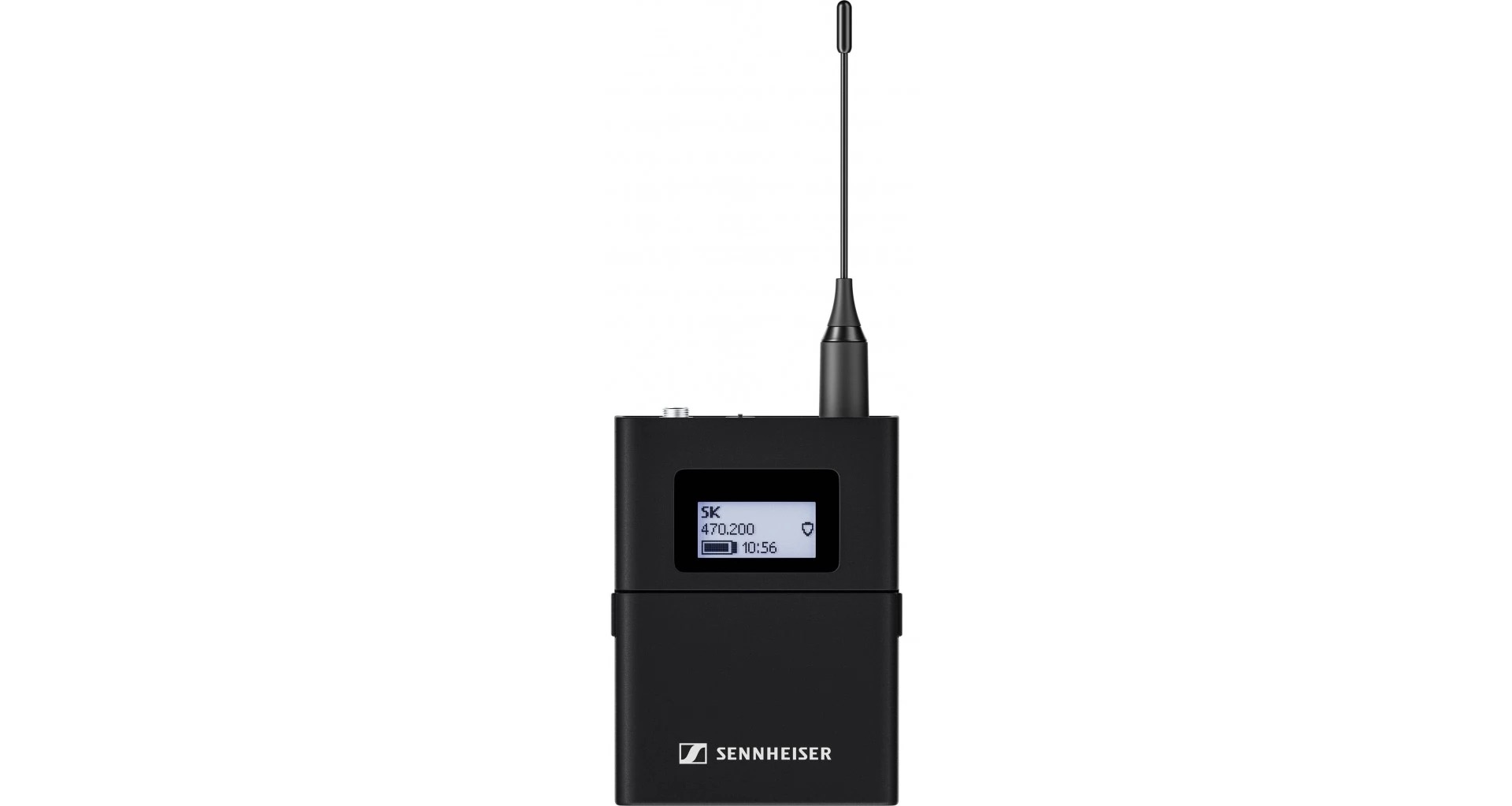

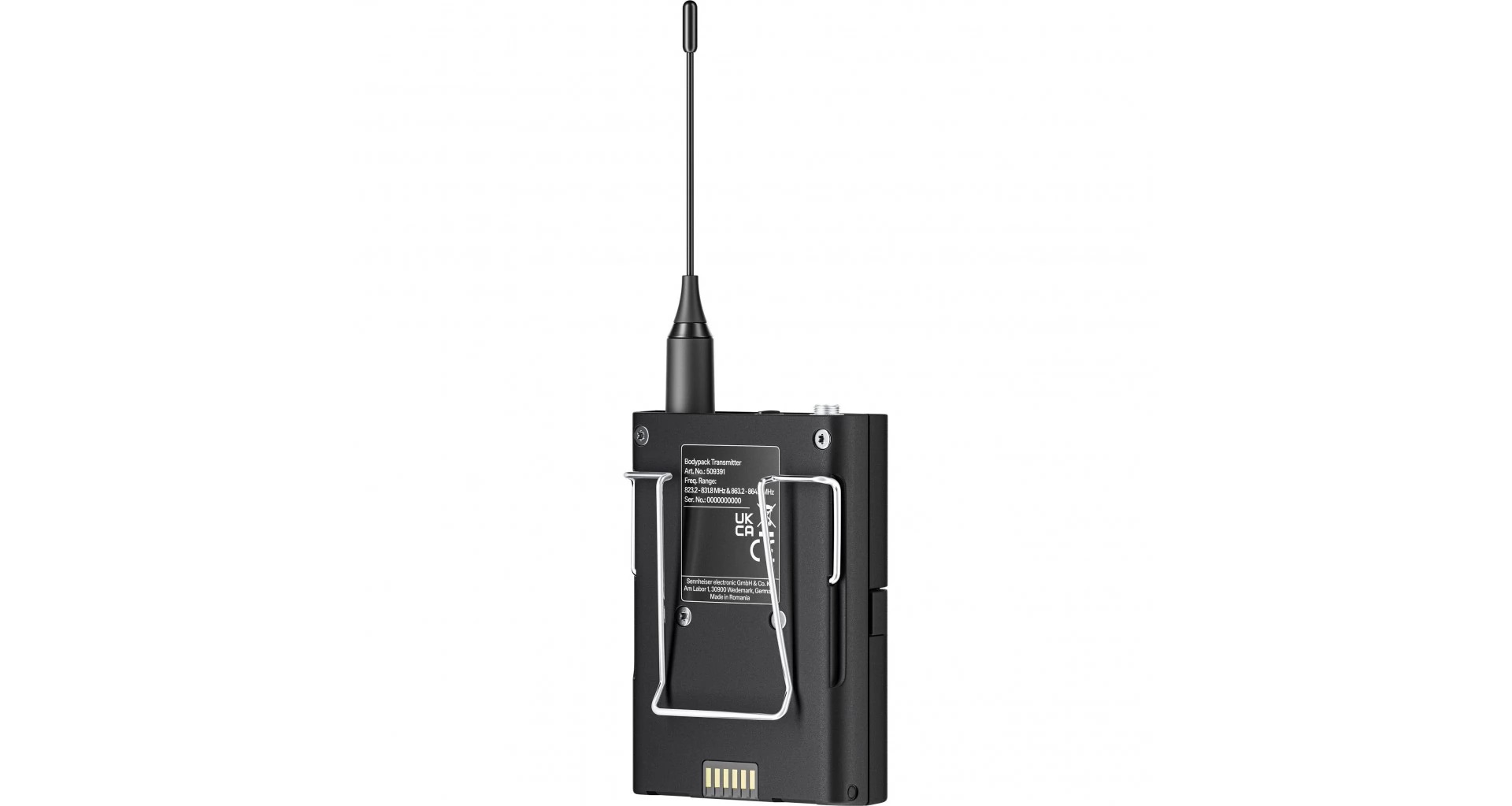

Sennheiser EW-DX SK S1-10

Sennheiser EW-DX SK S1-10 - digital bodypack transmitter for EW-DX wireless systems. It features a metal housing, E-Ink display, and can be used with lavalier microphones, headsets, or instruments with a 3.5 mm jack plug.

• Digital bodypack transmitter
• Operates in the S1-10 band: 606.2 – 693.8 MHz
• Audio codec: Sennheiser Performance Audio Codec (SePAC)
• Dynamic range: approx. 134 dB
• Latency: 1.9 ms
• Frequency response: 20–20,000 Hz (-3 dB)
• THD: ≤ -60 dB at 1 kHz
• RF power: 10 mW
• Range: up to 100 m
• Display: permanent E-Ink
• Battery life: up to 12 hours with BA 70 battery, sold separately
• Power supply: 2 × AA batteries
• Charging: contacts for CHG 70N; compatible with L 70 USB and LM 6070 module
• Mute switch: RF mute / AF mute / off
• Audio adjustment: digital audio trim and input level for microphone
• Low-cut filter: Off / 30 / 60 / 80 / 100 / 120 Hz
• Input: instrument, with cable emulation
• Microphone connector: 3.5 mm jack
• Generator: test tone
• LED: on/off configuration
• Control: buttons for configuring and locking the transmitter
• Bluetooth: 2402–2480 MHz, max. 10 mW EIRP
• Battery capacity: 2.3 Ah
• Dimensions: 63.5 × 85 × 20 mm, excluding antenna
• Weight: approx. 120 g, excluding batteries
• Housing: metal
• Contents: EW-DX SK transmitter, mounting clip, 2 AA batteries
