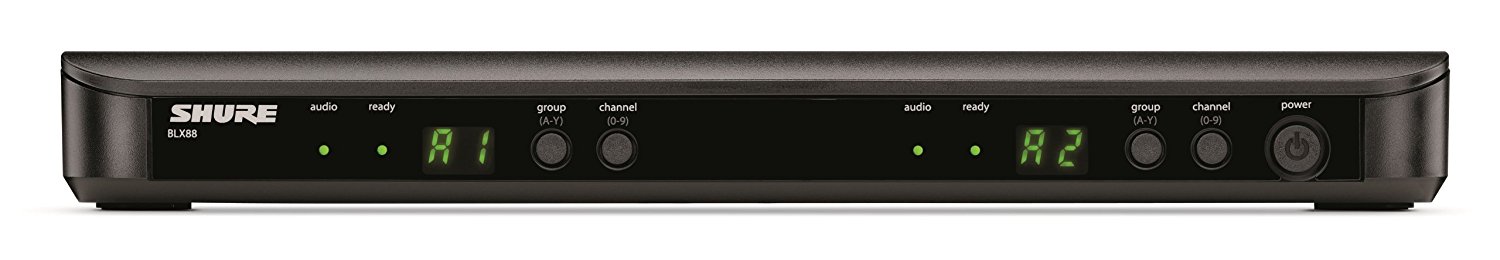

Shure BLX88

Shure BLX88, dual UHF receiver for Shure wireless systems from the BLX series:

• up to 3 systems usable in parallel on a frequency group
• 150 selectable frequencies
• automatic setting: the QuickScan function scans and finds groups with the most compatible frequencies
• ABS plastic housing, internal antennas
• outputs: 2 x XLR (balanced - 200 Ohms) and 2 x Jack (unbalanced 50 Ohms)
• RF sensitivity: 105 dBm at 12 dB SINAD, typical
• image rejection: greater than 50 dB
• operating range: 100 m in open field
• dimensions: 40 x 388 x 116 mm
• weight: 429 g
• power supply: 12–15 V DC @ 320 mA

Available in the following frequency bands:

• S8: 823 - 832 MHz
• T11: 863 - 865 MHz
• Q25: 742 - 766 MHz
