Neumann U67 Set

Neumann U67 Set - valve condenser microphone, a faithful reissue of the legendary U67, ideal for vocalists, musicians, and sound engineers in professional studios as well as in home studios. This microphone is equipped with the K67 capsule, a BV 12 output transformer, and EF86 valves that are specially selected for their exceptional sonic characteristics. Its three selectable polar patterns (omnidirectional, cardioid, and figure-8) provide versatility for both close and distant capture. The -10 dB pad raises the maximum SPL from 114 dB to 124 dB, allowing for strong sound captures without unwanted distortion. It offers a frequency response ranging from 20 Hz to 20 kHz, which can counteract the proximity effect through the selectable low-cut filter.

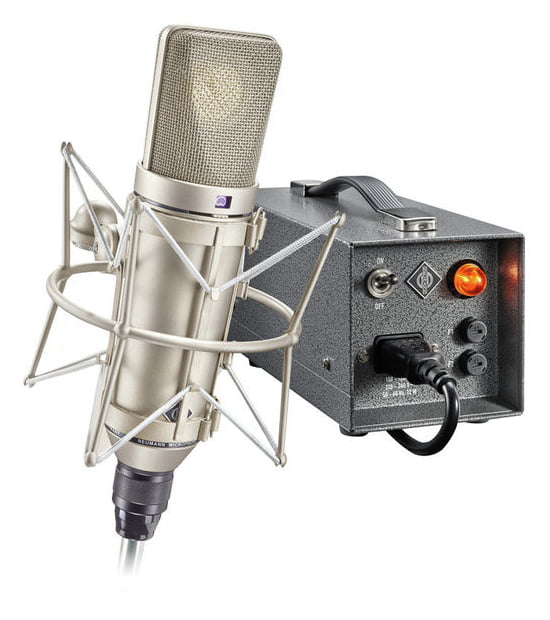

The microphone is delivered with a shock mount, a 7-pin XLR cable, and a power supply housed in a sturdy aluminium case.

Sonically, this reissue is identical to the U 67 microphones produced from the 1960s to 1971, using the same capsule and electronic design. The BV 12 output transformer is also meticulously reproduced according to the original documentation.

Technical specifications:

• Sound field: mono
• Operating principle: Pressure Gradient
• Transducer: Condenser
• Valve: yes
• Polar pattern: Cardioid, Figure-8, Omnidirectional (selectable)
• Frequency range: 20 Hz to 20 kHz
• Signal-to-noise ratio:
  • Omnidirectional: 62 dB CCIR
  • Omnidirectional: 73 dB A-Weighted
  • Cardioid: 66 dB CCIR
  • Cardioid: 77 dB A-Weighted
  • Figure 8: 63 dB CCIR
  • Figure 8: 74 dB A-Weighted
• Equivalent noise level:
  • Omnidirectional: 32 dB CCIR
  • Omnidirectional: 21 dB A-Weighted
  • Cardioid: 28 dB CCIR
  • Cardioid: 17 dB A-Weighted
  • Figure 8: 31 dB CCIR
  • Figure 8: 20 dB A-Weighted
• Max SPL: 114 dB SPL
• Pad: -10 dB
• Impedance: 200 Ohms
• Load impedance: 1 kOhm
• Sensitivity:
  • Omnidirectional: 15 mV/Pa at 1 kHz at 1 kOhm
  • Cardioid: 24 mV/Pa at 1 kHz at 1 kOhm
  • Figure 8: 16 mV/Pa at 1 kHz at 1 kOhm
• Output connector:
  • 1 x 7-Pin XLR
  • 1 x 3-Pin XLR
• Length: 200 mm
• Diameter: 56 mm
• Weight: 560 g
