LD Systems XS-200

Power Amplifier

class D power amplifier delivering 2 X 100 W at 4 Ohms and 200W in bridge mode.
multiple input options including XLR, RCA, and 6.3 mm jack connectors.
low noise fan for efficient cooling and reliable performance.
selectable operating voltage of 115 V AC / 230 V AC.
compact 1U rack design with a weight of only 3.8 kg.

229²⁸ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

1179 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

LD Systems XS-200 Add to cart: 229²⁸ €

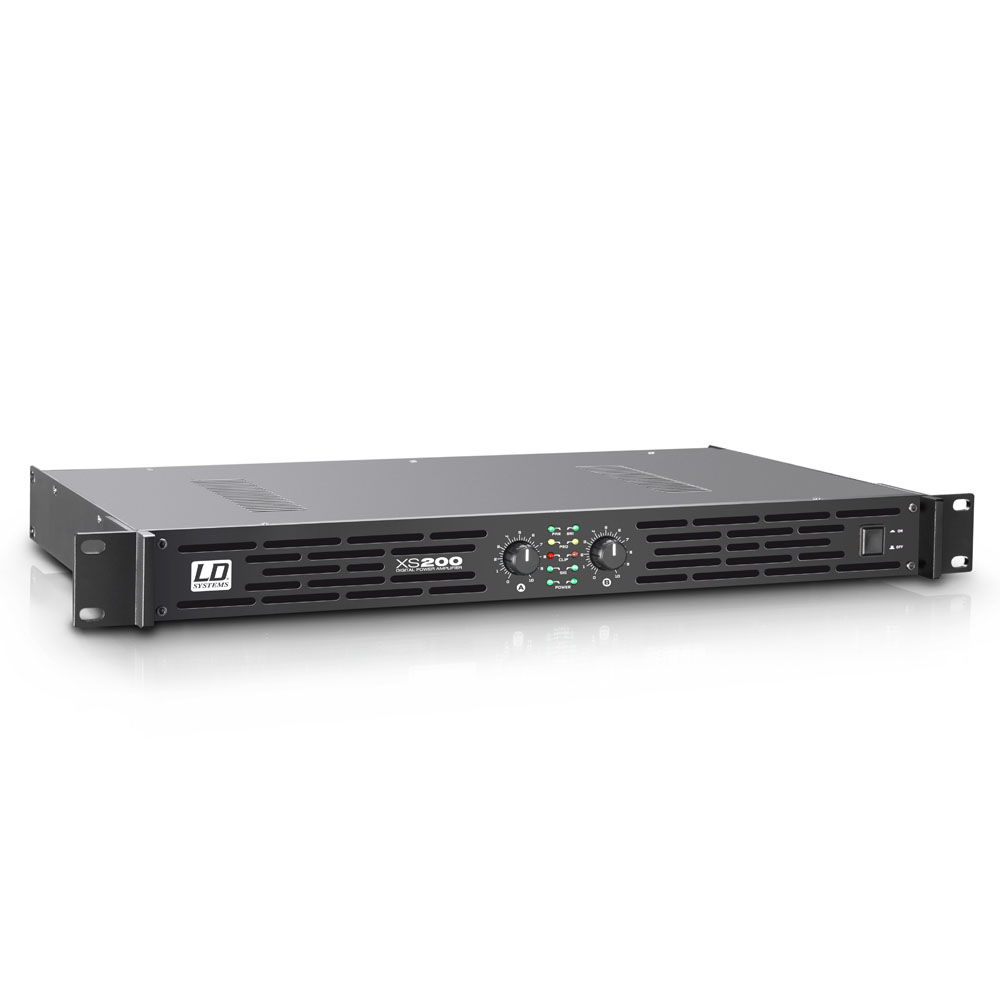

LD Systems XS-200 - power amplifier of 2 X 100 W / 4 Ohms, 2x 50W at 8 Ohms, and 200W in bridge mode, Class D amplifier. It occupies a 1U rack unit and weighs 3.8 kg. Inputs with XLR, RCA, and jack connectors, and speakon and screw outputs. On the back of the unit, the operating mode, gain level, limiter activation, and ground-lift function can be selected. On the front of the device, LED indicators show operation, signal presence, clipping, protection circuit activation, and operating mode.

Technical Specifications:

Number of channels: 2
Power (1kHz at 4 Ohms): 2 x 100W
Power (1kHz at 8 Ohms): 2 x 50W
Power (1kHz at 8 Ohms, in bridge): 200W
Amplification class: D
Frequency response: 20 - 20000Hz
THD: < 0.1 %
Gain: 30 dB / 26 dB / 24 dBdB
Protection circuits: overvoltage, soft start, overheating, short circuit, DC
Controls: On / Off, ground lift, mode, Gain, volume, limiter
Indicators: mode, protection (protection circuit activated), power, clip, signal
Line inputs: 2
Input connectors: RCA, 6.3 mm Jack
Speaker outputs: 2
Speaker output connectors: Speakon, screw
Cooling: low noise fan
Operating voltage: 115 V AC / 230 V AC (selectable)
Power consumption: 240 W
Dimensions (W/H/D): 482 / 44 / 244mm
Weight: 3.8 kg
