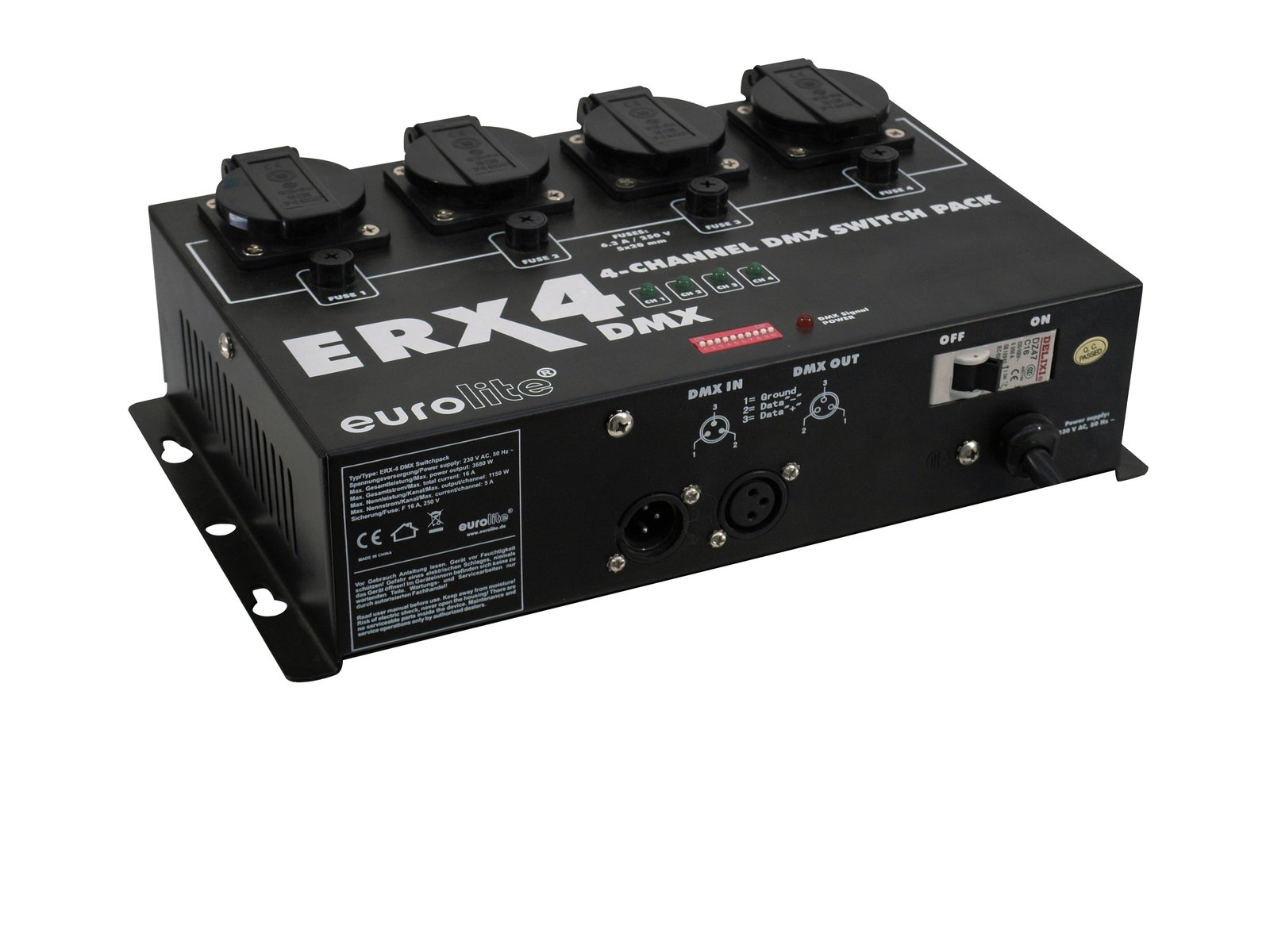

Eurolite ERX-4 DMX Switch Pack

Switch pack

relay allows for controlling luminaires with electronic transformers (e.g. LED effects)
4 controllable channels
lED indicator per channel
5 A load per channel
rugged metal housing

121⁷² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

628 points of loyalty

Shipping 14.00 €

Warranty 24 months

Returns 14 days

request details

Eurolite ERX-4 DMX Switch Pack Add to cart: 121⁷² €

4-channel switch pack, up to 5 A load per channel, control with relay

Relay allows for controlling luminaires with electronic transformers (e.g. LED effects)
4 controllable channels
LED indicator per channel
5 A load per channel
Rugged metal housing
Control via stand-alone; DMX
For application areas such as: Clubs/dancing school; Party room; theater; restaurants, bars and hotels
Silent operation

Package contents

Power supply:	230 V AC, 50 Hz
Output power:	Max. 3680 W Max. 1150 W per channal
Output current:	Max. 16 A
Power connection:	Fixed power supply cord with safety plug
Power output:	4 x Safety contact (F), hinged lid mounting version
DMX channels:	4
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Stand-alone; DMX
Control channels:	4
Color:	Black
Dimensions:	Width: 30 cm Depth: 19 cm Height: 8,5 cm
Weight:	2,51 kg
Noise classification:	Class 0 (no noise at all)
