Cameo SB-6 Dual

DMX Splitter/Booster

professional DMX splitter/booster with 2 parallel inputs.
amplifies DMX input signal to 6 electrically isolated outputs.
1U rack format, ideal for DMX network configurations.
lED indicators for power and signal status.
includes power cable with IEC connector.

157⁶⁹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

813 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Cameo SB-6 Dual Add to cart: 157⁶⁹ €

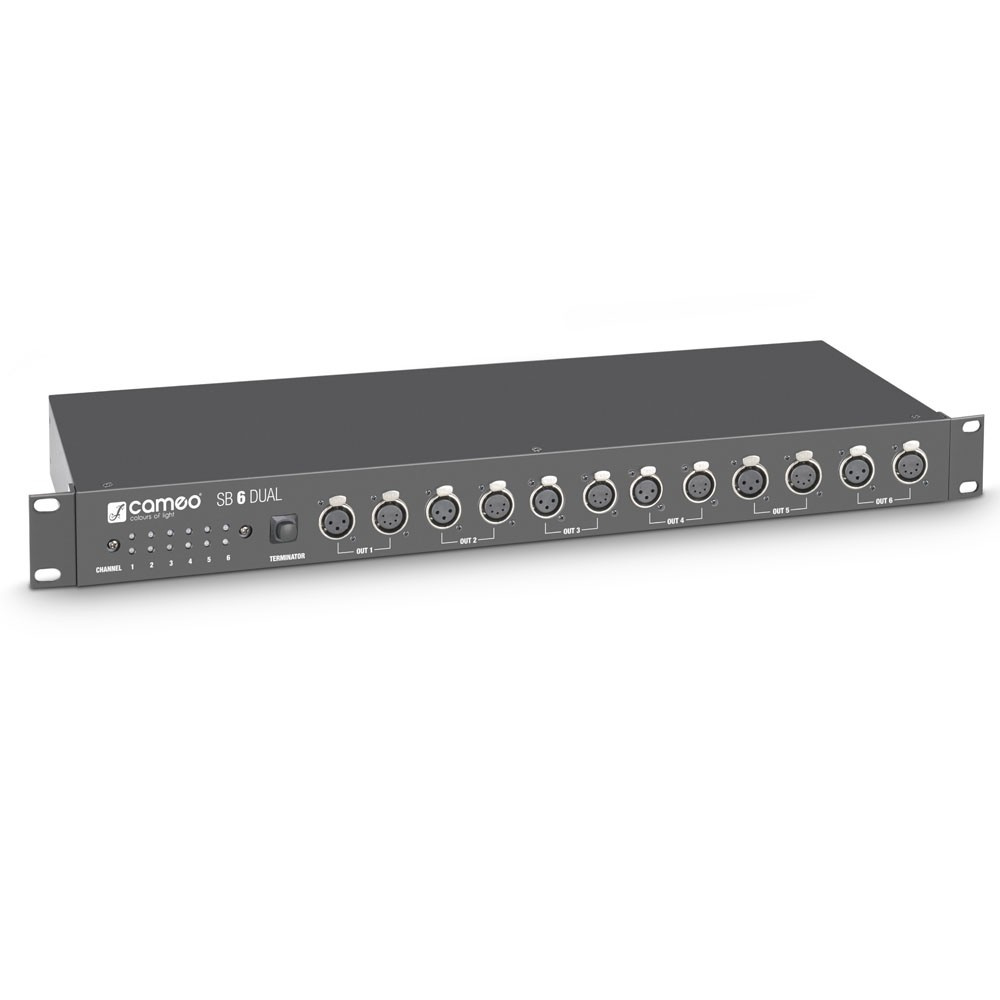

Cameo SB-6 Dual - professional DMX splitter/booster, ideal as a configuration solution for DMX networks. It has a 1U rack format and amplifies the DMX input signal, distributing it to 6 electrically isolated outputs. It connects directly to the DMX controller or DMX devices, featuring a signal input and a THRU input for signal looping, which are duplicated on the front and back of the unit and connected in parallel, with the outputs located on the back of the unit. It has LED indicators on the front of the unit that show the status of the DMX power signal, and also offers a selectable 120 Ohm termination resistor on the THRU output. It comes with a power cable with an IEC connector.

Technical specifications:

Number of DMX inputs: 2 (parallel)
DMX input connectors: XLR 3-pin male, XLR 5-pin male
DMX Thru outputs: 2 (parallel)
DMX Thru output connectors: XLR 5-pin female, XLR 3-pin female
DMX outputs: 6
DMX output connectors: XLR 3-pin male, XLR 5-pin male
Controls: Power On/Off, DMX Thru Terminator
Indicators: 6 x LED for power, 6 x LED for signal
Power connectors: IEC
Operating voltage: 230 V AC, 50 Hz
Power consumption: 15 W
Dimensions (WxHxD): 483 x 44 x 160 mm
Weight: 3 kg
Included accessories: power cable
