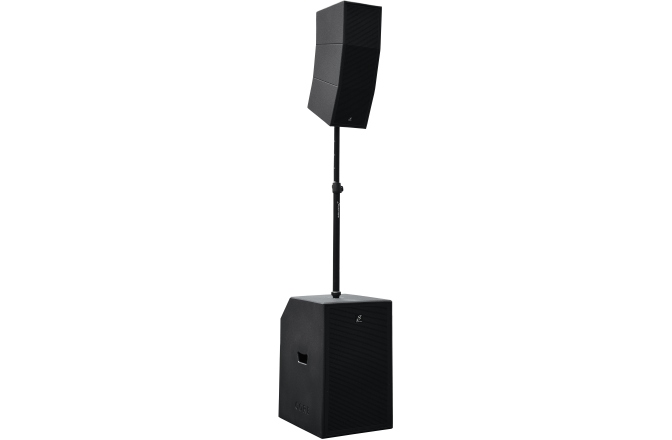

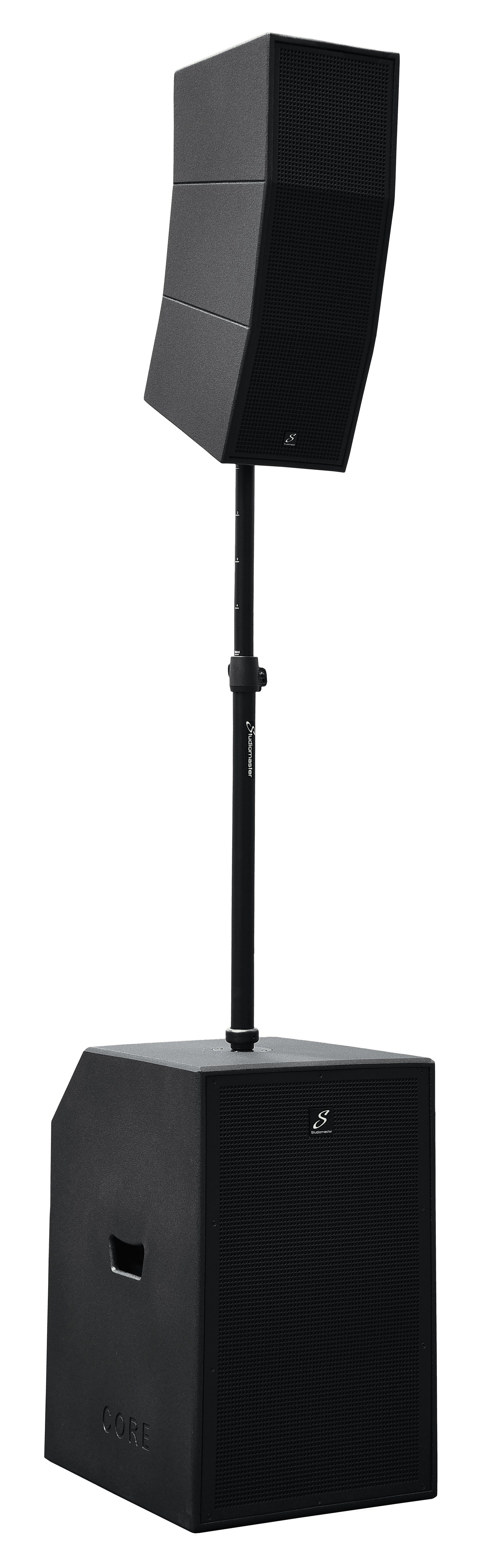

Studiomaster Core 151

The new CORE system from Studiomaster uses a specially designed curved array that ensures controlled and highly efficient sound dispersion.

The curved array is combined with a powerful bass reflex subwoofer, capable of up to 2800 W for low frequencies. The entire system thus offers 4400 W peak (1100 W RMS) in a compact and portable format, with the coverage and sound quality you expect from an ultra-compact array system.

For a complete system, CORE comes with a built-in 4-channel mixer, DSP control, and Bluetooth® connectivity.

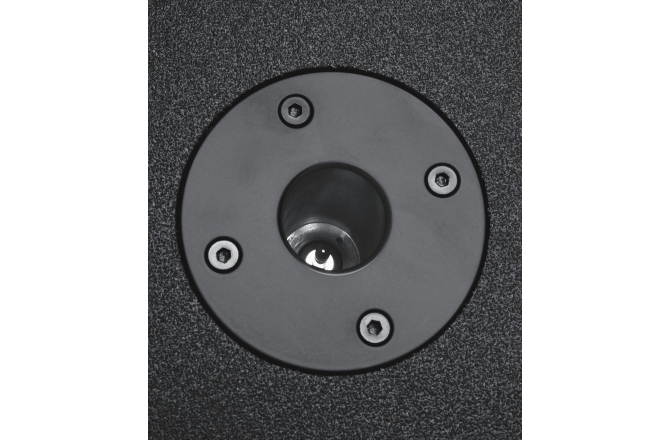

The CORE system is designed to be easy to install and use. The adjustable distance bar, with pneumatic suspension, has integrated cabling, so you simply lift the curved array, easily, and place it above the bar. Connect the power and you're ready to perform!

A true ALL-IN-ONE system, perfect for any type of event.

• vertical line array audio system with integrated mixer
• max SPL 126 dB
• frequency response 35 Hz – 18 kHz

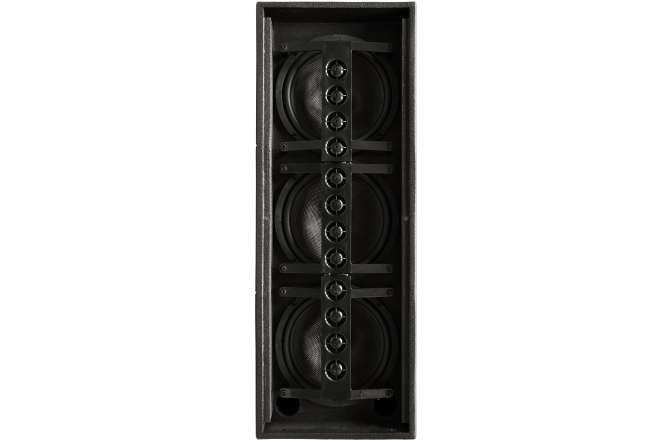

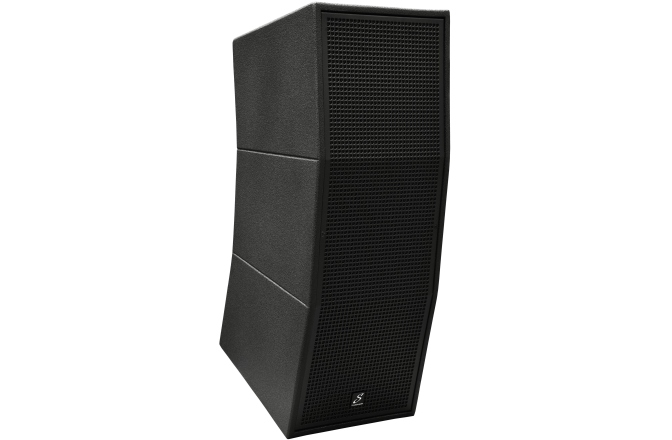

• array satellite:
  • 3 x 8" full range neodymium MF speaker
  • 12 x 1" dome tweeter HF speakers
  • 400 W (RMS) handling power
  • coverage angle 100° (H) x 55° (V)
  • dimensions 255 x 670 x 285 mm (max. 450 mm)
  • net weight 11.5 kg

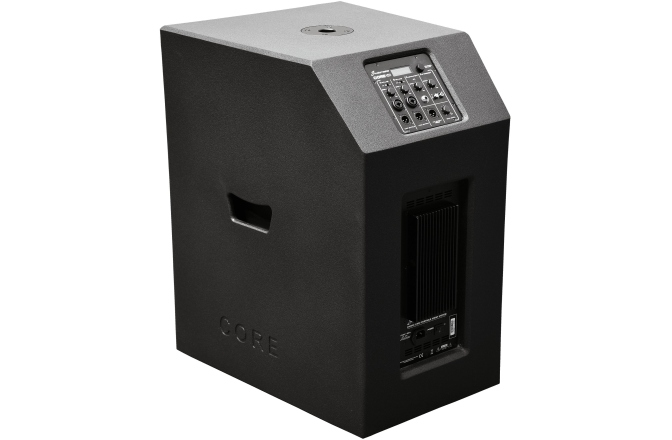

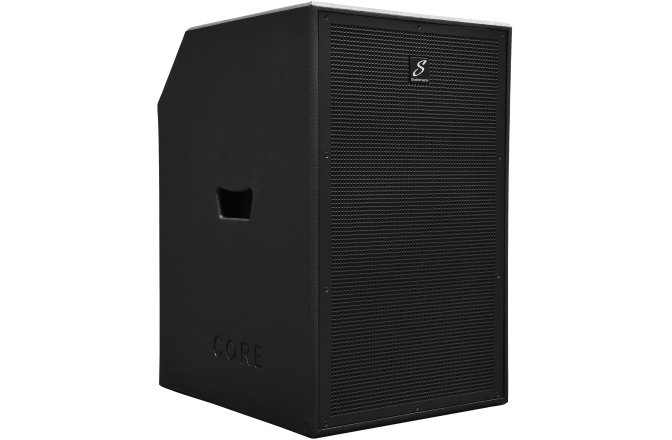

• subwoofer:
  • 1 x 15" speaker
  • 700 W (RMS) handling power
  • integrated amplifier: 700 W (LF) + 400 W (MF/HF) (RMS)
  • dimensions (L x W x H) 485 x 725 x 585 mm
  • net weight 37.5 kg

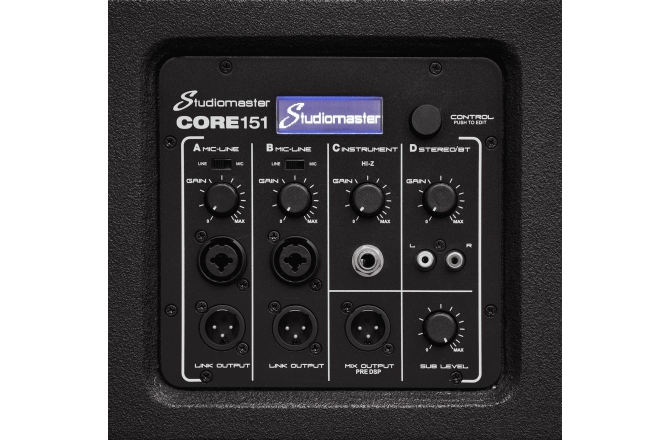

• mixer:
  • 24-bit DSP module with control for mode,
  • EQ, limiter, delay, and mix level
  • Inputs
    • 2 x microphone (XLR) / line (6.35 mm jack), balanced
    • 1 x Hi-Z instrument (6.35 mm jack)
    • 1 x stereo line (RCA) / Bluetooth®
  • Outputs:
    • 2 x balanced line/link (XLR)
    • 1 x balanced MIX line/link (XLR)
