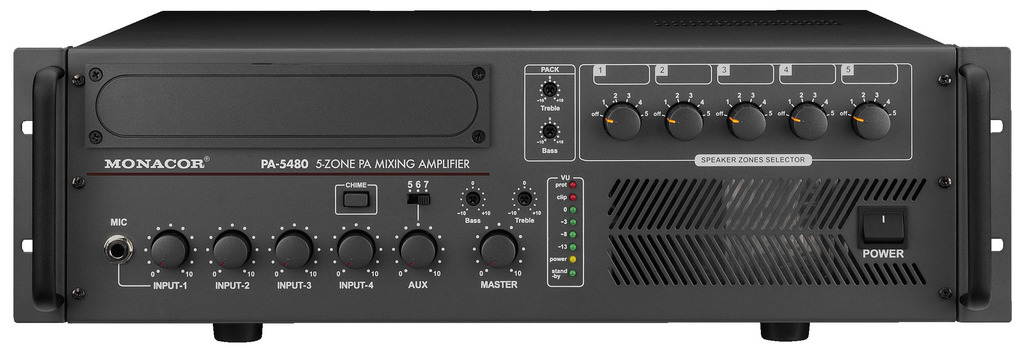

Monacor PA-5480

Zone Amplifier

1 x 480 W power with 5 individually controllable zones.
5 input channels including 3 mic/line and 2 line with 2-band EQ.
lED display for monitoring levels and fan for cooling.
phantom power support for condenser microphones.
compact dimensions with 3 rack spaces and a weight of 17 kg.

1 146⁵⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

5889 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Monacor PA-5480 Add to cart: 1 146⁵⁷ €

PA-5480 - Amplifier with 5 individually controllable zones for public address systems, power 1 x 480 W, 5 input channels (3 mic/line + 2 line) with 2-band EQ and routing matrix.

Power: 1 x 480 W
5 individually controllable zones
Control knobs for bass, treble, and master
LED display for levels
Fan
Phantom power for condenser microphones
Power Rating at 8 ohms: 1 x 480 W
Maximum output power: 680 W
Inputs: 2.5 mV/2 kΩ (mic 1), 2.5 mV/2 kΩ, 0.3 V/200 kΩ (mic/line 2-4), 0.3 V/5 kΩ (line 5-7), 0.775 V/10 kΩ (preamplifier)
Frequency range: 55-16,000 Hz
S/N Ratio: > 70 dB (mic), > 80 dB (line)
Connectors: 1 x 6.3 mm jack (mic), 2 x combo 6.3 mm/XLR (mic/line), 3 x RCA L/R (line), terminal screws (line), 1 x 6.3 mm jack (preamplifier input), terminal screws (push-to-talk mic), terminal screws (zone paging mic)
Dimensions: Width: 482 mm, Height: 133 mm, Depth: 352 mm
Rack spaces: 3
Weight: 17 kg
