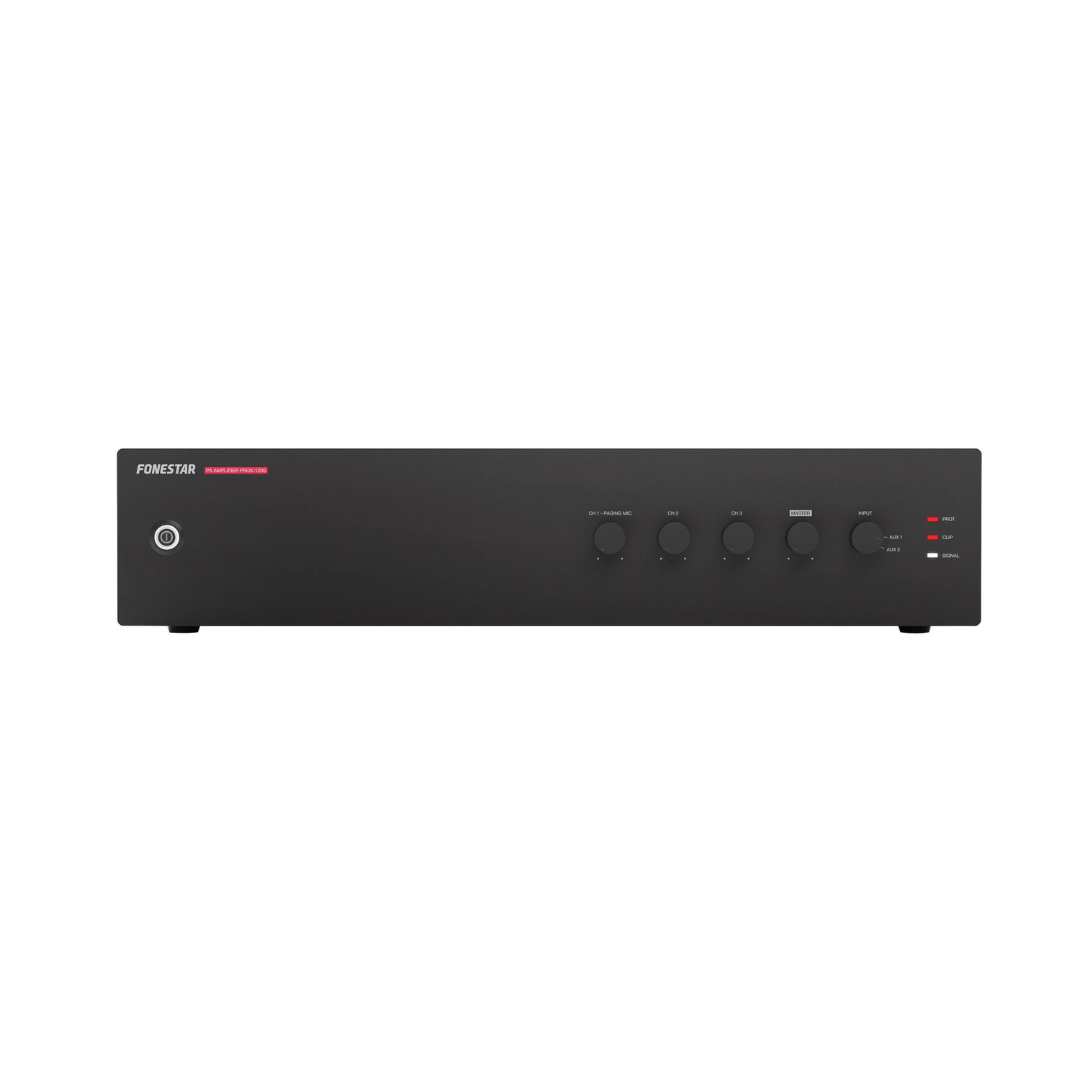

Fonestar PROX-120S


PA Amplifier

  • 120W RMS output power suitable for 100V systems or 4Ω speakers.
  • frequency response from 40 Hz to 20 kHz with low harmonic distortion.
  • multiple microphone and line inputs with phantom power support.
  • automatic mute and priority control for emergency input.
  • rack mountable design with a weight of 9.5 kg.
Fonestar
Variante:
PROX-120Z Bluetooth/USB/FM
PROX-120Z Bluetooth/USB/FM
56354
Currently unavailable. Request details
Central warehouse: 0
Add to cart
2898 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

Fonestar PROX-120S - mono amplifier of 120W, suitable for 100V speaker systems or low impedance (4Ω). It is ideal for commercial spaces, schools, restaurants, churches, or other institutions that require professional sound reinforcement.

Features:

  • Output impedance: 4Ω or 100V line (83Ω)
  • Output power: 120W RMS
  • Frequency response: 40 Hz – 20 kHz (-10 dB)
  • Harmonic distortion (THD+N): < 1% at 1 kHz
  • Signal-to-noise ratio: > 77 dB
  • Cooling: Forced, temperature controlled
  • Operating temperature: 0° – 40°C
  • Maximum humidity: 95%
  • Power supply: 230/115 V AC, 50-60 Hz, consumption 320 W
  • Fuse: 230 V – 3.15 A / 115 V – 6 A
  • Dimensions: 433 x 89 x 360 mm
  • Rack mountable: 2U, compatible with 19”
  • Weight: 9.5 kg

Connections

  • Microphone inputs:
    • 1 x combo XLR + 6.3 mm jack with phantom power +48V
    • 2 x Euroblock (terminal block) with phantom +48V
  • Line / auxiliary inputs:
    • 2 x RCA + Euroblock (for line signal)
    • 2 x RCA + Euroblock (for auxiliary sources)
  • Emergency input:
    • Euroblock connector (100V line signal)
  • Outputs:
    • 1 x line (2 x RCA)
    • Speaker output 100V or 4Ω (screw connection)

Priority & Control:

  • Input priority:
    • The 100V emergency input has maximum priority
    • Automatic mute via contact
    • Channel 1 can have priority over all others
    • Channels 2 and 3 can have priority over auxiliary inputs
    • LED indicators:
    • Power on, protection, peak signal, active output
  • Control:
    • Microphone volume
    • Mic/line/phantom selector
    • Overall volume (master)
    • Auxiliary source selector
    • Tone (bass and treble ±10 dB at 100 Hz and 10 kHz)
    • Microphone gain adjustment
    • Priority activation sensitivity (VOX)

Product code: PROX-120S

Unit of sale: piece

Specifications:
Amplifier type: with mixer - without zones
Amplification (RMS): 120 W
Number of channels / output zones: 5
