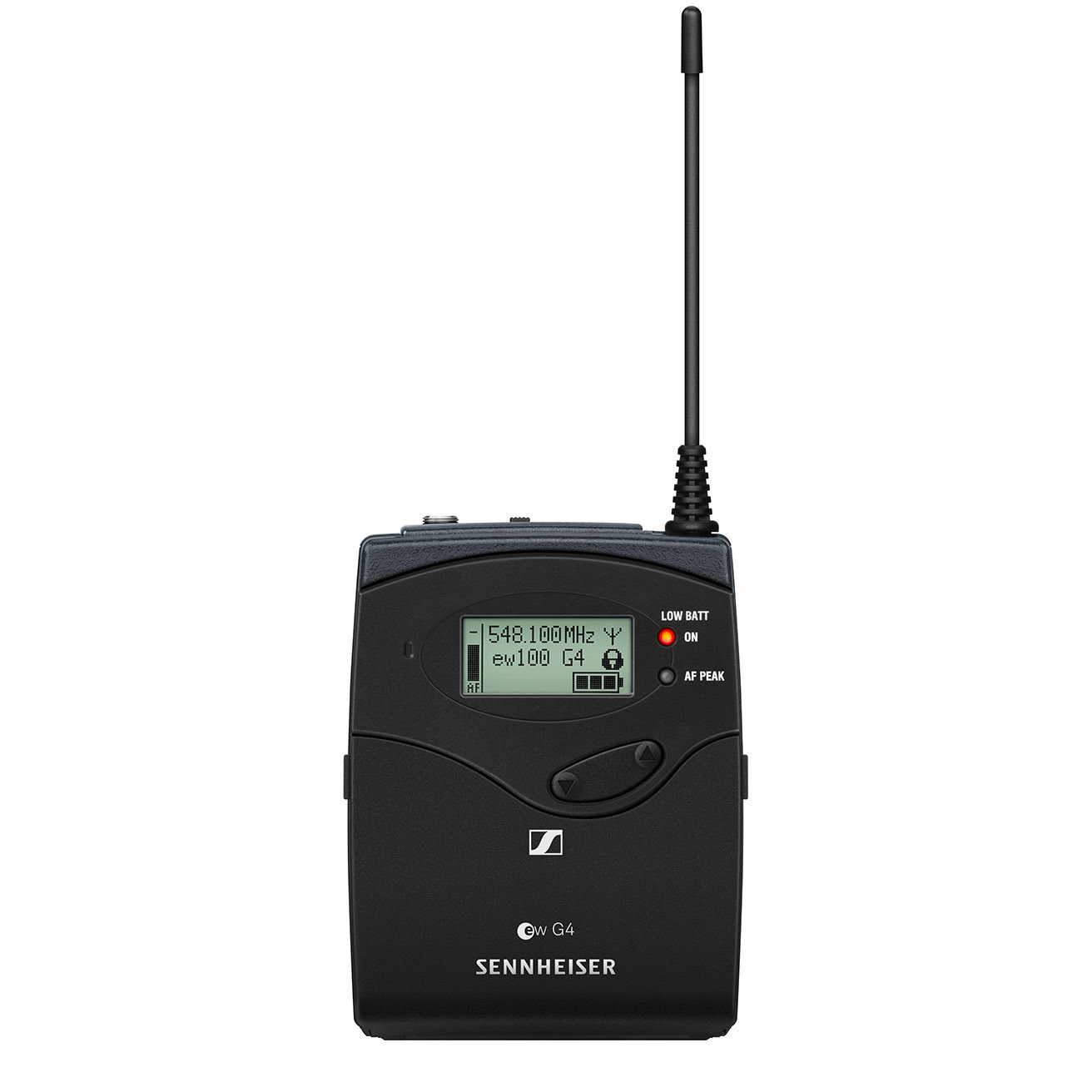

Sennheiser SK 100 G4 / B

Bodypack transmitter compatible with Sennheiser EM 100 G4 receivers.

• robust metal housing
• 42 MHz band with 1680 selectable frequencies
• 20 frequency banks, each with 12 channel presets, 1 bank with 12 programmable channels
• pilot tone for eliminating RF interference
• infrared synchronization
• illuminated graphic display
• HDX compander
• battery level displayed on the receiver screen!
• contacts for charging the BA2015 module.
• programmable mute function
• UHF band B: 626 - 668 MHz (other bands available on special order)

Technical specifications:

• dimensions: 82 x 64 x 24mm
• microphone connection: locking 3.5mm jack ew
• THD: <0.9%
• weight: 160 g
• maximum RF output power: 30mW
• operating time: >8 hours
• input voltage: 1.8V
