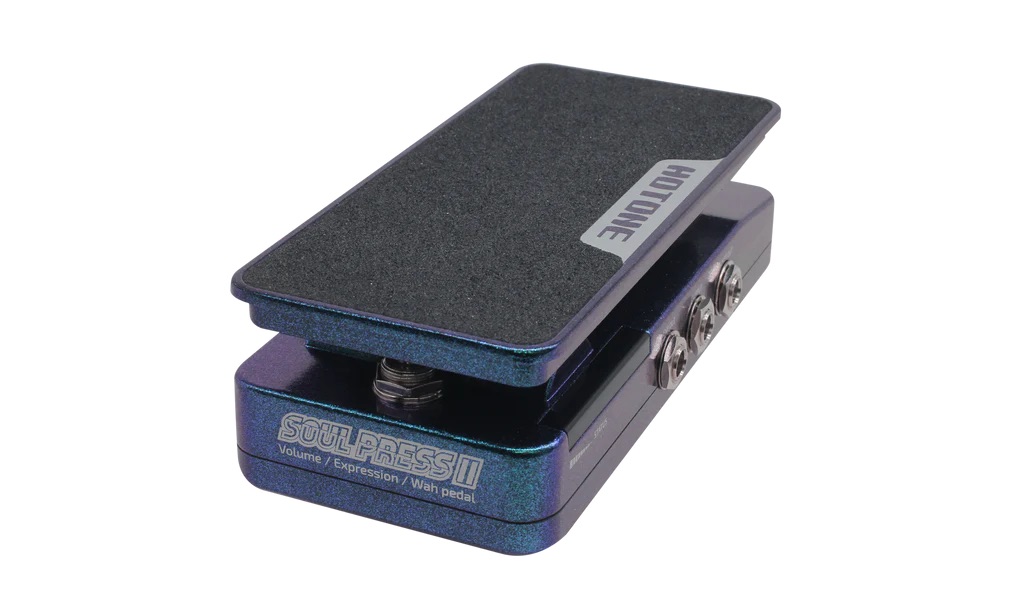

HoTone Soul Press II

Hotone Soul Press II - 4-in-1 active pedal for electric guitar, combining Volume, Wah, Volume/Wah, and Expression functions in a compact and versatile design. It is ideal for both stage and studio.

Equipped with an active volume circuit, the Soul Press II eliminates signal loss, while the LED indicators display the pedal's position in real-time. The Q and TONE adjustments allow for tweaking the wah character, from soft sounds to aggressive attacks.

• 4-in-1 active pedal: Volume / Wah / Volume+Wah / Expression
• True Bypass
• Active volume circuit for lossless sound
• STATUS LED indicators for real-time pedal position
• Q control (Wah filter range)
• TONE selector: Warm / Classic
• Footswitch for Effect Bypass
• Ergonomic design, non-slip surface
• Durable metal axle aluminum alloy housing
• Compatible with other effects and processors via EXP output

Connectors:

• Input: 3 mm Jack
• Output: 3 mm Jack
• Tuner Output: 3 mm Jack (out of the signal chain)
• Expression Output: 6.3 mm TRS Jack
• Power Connector: 5 × 2.1 mm, centre negative

Power & specifications:

• Power: 9V DC or 9V battery
• Power consumption: 30 mA
• Input impedance: 1 MΩ
• Output impedance: 100 Ω
• Wah range: Warm: 290 Hz – 1.4 kHz, Classic: 360 Hz – 1.8 kHz
• Dimensions (L x W x H): 81 × 162 × 51 mm
• Weight: 500 g
