Audac WP 205 White

Panel type mixer

wall-mounted mixer for ARES5A active speaker system.
converts stereo audio or balanced microphone signals.
output level of +12 dB.
individual input level control for microphone and line.
compact dimensions: 80 x 80 mm.

Variants:

101⁴¹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

501 points of loyalty

Shipping 25.00 €

Warranty 24 months

Returns 14 days

request details

Audac WP 205 White Add to cart: 101⁴¹ €

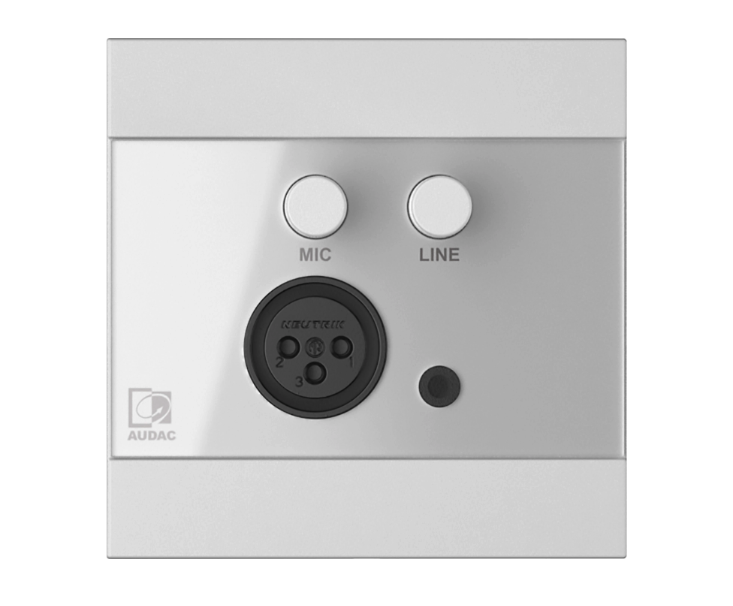

WP 205 white is a wall-mounted mixer designed to be used in combination with the ARES5A active speaker system. It converts the signal from a stereo audio source at line level (such as a tuner, mobile devices, ...) or a balanced microphone signal to the corresponding differential signal input on the ARES5A (RJ45).

Output level +12 dB
Inputs
- 3.5 mm stereo jack/line
- Microphone input - female XLR
- EURO TERMINAL BLOCK output connection with 8 pins (3.81 mm pitch)
Control
- Individual input level control for microphone and line
- Phantom Power (DIP switch on the back)
- Low-cut activation/deactivation (Microphone) (DIP switch on the back)
- Mono/Stereo switch (DIP switch on the back)
Dimensions 80 x 80 mm
Colours White (RAL9003)
