Zoom V6 SP
35395 €
Currently unavailable.
Request details
Central warehouse: 0

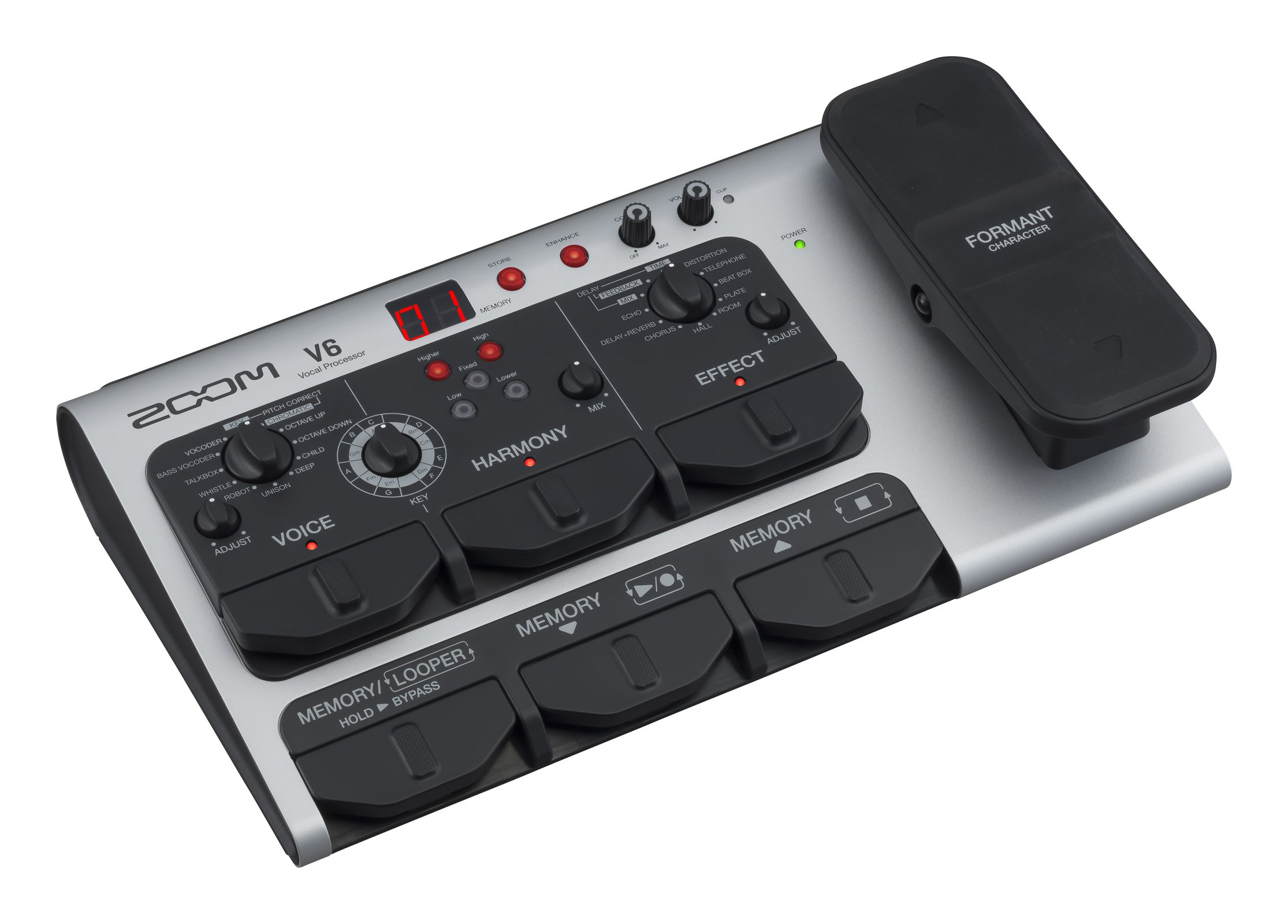

Zoom V6 SP - Equipped with professional vocal effects, built-in looper and the new Formant pedal, no matter the style you perform, the V6 will elevate your music to the next level.
The back panel of the V6 - labelled A-G
A - MIC IN XLR
B - PHANTOM POWER SWITCH
C - CONTROL PEDAL IN
D - USB/AUDIO INTERFACE OUT
E - LINE OUT/VOLUME CONTROL
F - XLR OUT
G - POWER IN
- The V6 offers over 10 studio effects
- Simultaneously use up to three vocal processors from the Voice, Harmony and Effect sections
- Formant Shift pedal for real-time vocal character adjustment
- Looper for recording up to 3:30
- 40 preset corrections created by professional vocalists and sound engineers
- 100 memory locations for storing user-created patches
- Built-in compressor for optimising input signal levels
- Built-in amplifier for optimising input signal frequencies through equalisation and de-essing
- USB 2.0 audio interface capable of recording up to 16/24/32 bits, 44.1 kHz
- USB port for firmware updates, power and audio recording
- Line output for connecting to external mixing consoles
- Dedicated volume control headphone output
- Operates for 3.5 hours on four AA batteries
- AC adapter included
- Optional expression pedal offers advanced control over effect parameters
- VOCAL PROCESSOR V6-SP
- Voice section: 12 types
- Effects section: 10 types
- Harmony section: 5 types
- Number of patch memories: 100
- Sampling frequency: 44.1 kHz
- A/D conversion: 24-bit oversampling 128×
- D/A conversion: 24-bit oversampling 128×
- Signal processing: 32 bits
- Frequency response: 20 - 20,000 Hz (+1 dB/−3 dB) (200 kΩ load)
- 2-digit LED display with 7 segments
- INPUT
- MIC IN jack:
- XLR Input Gain: +3 – +40 dB
- Maximum input level: +4 dBu
- Input impedance: 3 kΩ or greater (1 kHz)
- Phantom power: +48 V
- MIC IN jack:
- OUTPUTS
- OUTPUT:
- XLR jack Maximum output level: +8 dBu
- Output impedance: 50 Ω (HOT-GND, COLD-GND, 1 kHz) 100 Ω (HOT-COLD, 1 kHz) GROUND LIFT (switchable)
- PHONES:
- Mini stereo jack Maximum output level: 20 mW + 20 mW (into 32 Ω load)
- EQUIVALENT INPUT NOISE (When phantom is off)
- −125 dBu or less (A-weighted, 150 Ω input, input gain +40 dBu)
- NOISE (RESIDUAL NOISE)
- −75 dBu
- CONTROL INPUT
- FP02 input
- POWER
- AC adapter (9 V DC 500 mA, centre negative) (ZOOM AD-16) 4 AA batteries (approximately 3.5 hours of continuous operation when using alkaline batteries)
- USB connector: Micro USB Audio interface operation: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit
- Power can also be supplied via the USB port
- When using a cable designed for power only, other USB functions cannot be used
- EXTERNAL DIMENSIONS
- 181 mm (H) × 320 mm (W) × 77 mm (D)
- WEIGHT
- 1.56 kg (excluding batteries)
- OUTPUT:
