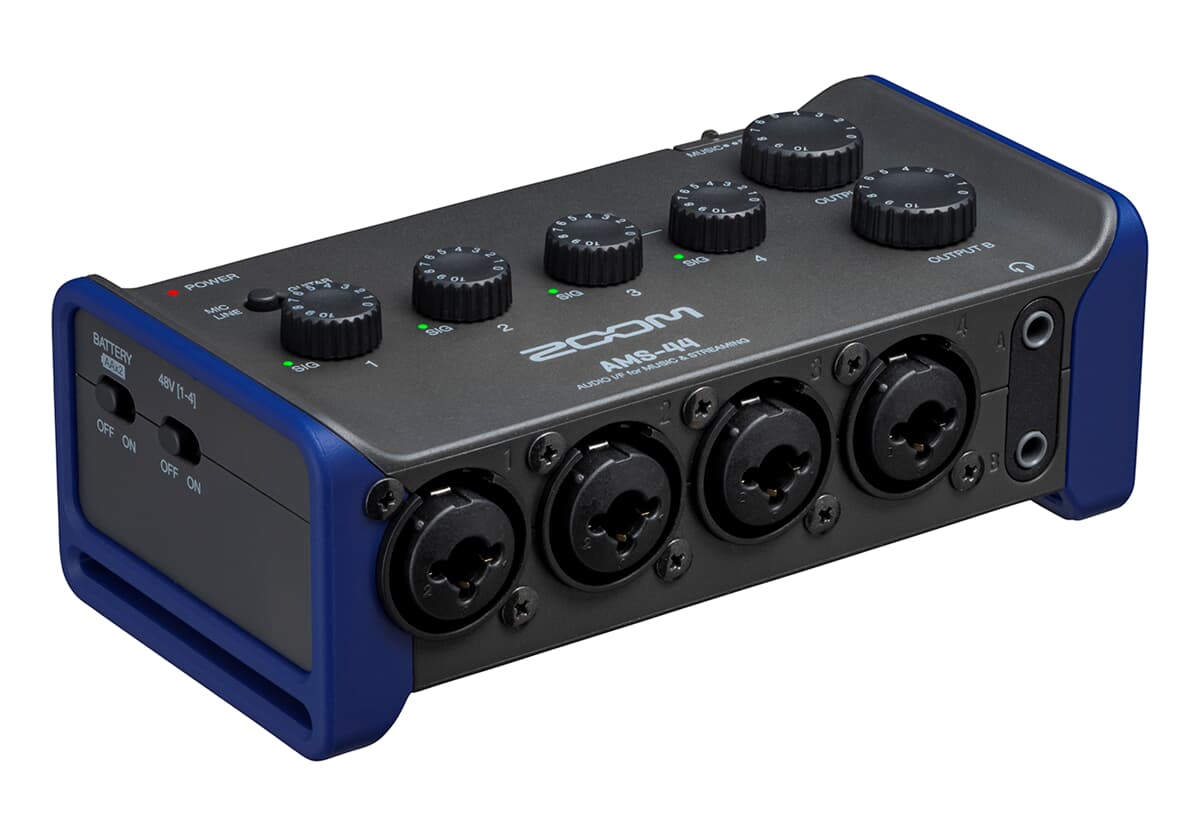

Zoom AMS-44 - The AMS-24 and AMS-44 feature an innovative switch for music/streaming. When you switch to Music mode, you can record in your DAW with extensive input and output routing options. When you switch to Streaming mode, all inputs are combined into a single signal, allowing you to stream easily without the need for complicated additional software.
Whether you are recording or streaming, the AMS-44 keeps your setup simple. It features four combo XLR/TRS inputs along with high-performance Zoom preamps with low noise. The interface also includes two outputs for headphones and two TRS outputs for external monitors.
- Number of microphone inputs: 4
- Number of line inputs: from 3 to 8
- Number of instrument inputs: 1
- Number of analog outputs: from 3 to 4
- Max. Sample rate: 96 kHz
- Interface: USB-C
- Max. usable analog channels simultaneously: 4
- Max. usable digital channels simultaneously: 0
- Max. Resolution: 24 bits
- Combo jack type MIC/GUITAR
- Type: XLR/TRS combo
- Input gain: −∞ – +58 dB / −∞ – +50 dB (GUITAR)
- Input impedance:
- XLR: 2.7 kΩ (MIC)
- TRS: 18 kΩ / 330 kΩ (GUITAR)
- Max input level:
- XLR: +6 dBu (MIC)
- TRS: +22 dBu / +8.5 dBu (GUITAR)
- Phantom power +48 V
- Output (standard phone jacks)
- Type: TRS phone jacks (balanced impedance)
- Max output level: +10 dBu (at 0 dBFS)
- Output impedance: 100 Ω
- Output (headphone jack)
- Type:
- 3.5 mm mini stereo jack
- 30 mW + 30 mW (load 32 Ω)
- Output impedance: 10 Ω
- USB
- USB Type-C (audio interface function)
- Use a USB cable that supports data transfer (USB bus power is supported)
- DC 5V: USB Type-C (for power)
- Line IN:
- Type: 3.5 mm mini stereo jack
- Input impedance: 20 kΩ
- Max input level: +1.5 dBu
- Frequency response:
- 44.1 kHz: ±1 dB (20 Hz – 20 kHz)
- 96 kHz: ±1.5 dB (20 Hz – 40 kHz)
- Equivalent input noise: −120 dBu or less (IHF-A) at +58dB/150Ω input
- Audio interface:
- Input and output channels:
- Recording: 4 channels
- Playback: 4 channels
- Sample rates: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
- Bit depth: 24 bits
- Interface: USB 2.0
- Class: USB Audio Class 2.0
- Power:
- 2 AA batteries (alkaline, lithium or rechargeable NiMH)
- AC adapter (ZOOM AD-17): DC 5 V/1A (USB bus power is supported)
- Nominal current:
- USB/AC adapter (5 V): 350 mA
- Batteries (2.4 V): 560 mA
- Estimated continuous operation time using batteries:
- 44.1 kHz, 48 V off, with load for 32Ω headphones
- Alkaline batteries: approximately 3 hours
- NiMH batteries (1900 mAh): approximately 4.5 hours
- Lithium batteries: approximately 8.5 hours
- Power consumption: 5 W max
- Dimensions (L x W x H): 129.0 × 74.0 × 46.0 mm
- Weight: 177 g
- Weight (including batteries): 223 g
