RME MADIface USB

Audio interface

compact audio interface with 128 channels, supporting up to 64 channels for recording and playback.
simultaneous use of both MADI inputs for full access to all channels, mixed and routed by TotalMix.
high-quality bidirectional format converter and active repeat function, even without a computer.
uSB 2.0 interface, bus-powered, compatible with Windows and Mac OS X.
includes DIGICheck, RME's analysis tool for detailed monitoring.

840⁸⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

4130 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

RME MADIface USB Add to cart: 840⁸⁶ €

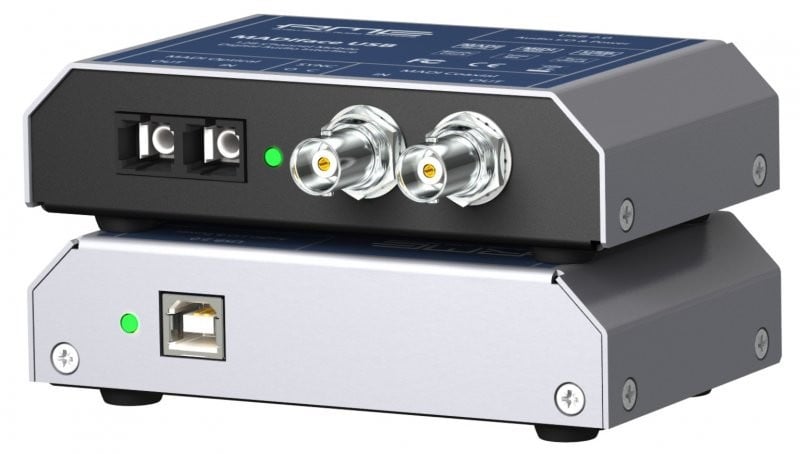

RME MADIface USB is a compact audio interface with 128 channels, supporting up to 64 channels for recording and playback via Mac and Windows. Both inputs can be used for truly redundant operation.

Optionally, both MADI inputs can be used simultaneously for full access to the inputs and outputs of the 128 channels, mixed and routed by TotalMix. Even without a computer, this small-sized box offers a high-quality bidirectional format converter and an active repeat function.

Inputs/outputs: 2 x MADI I/O, optical and coaxial (BNC)
MIDI input/output: via virtual MIDI port
Clock modes: master (internal) and slave (MADI input)
Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/DDS)
Jitter: - TotalMix: 2048 channel mixer with 48-bit internal resolution
Interface: USB 2.0, bus-powered
Includes DIGICheck, RME's analysis tool
Operating systems: Windows Vista/7/8, Mac OS X (10.6 or newer)

Product code: ZD-032312

Unit of sale: piece

Specifications:

Number of I/O channels:	64x64
Analog inputs:	no
Analog outputs:	no
48V phantom power:	no
Maximum resolution:	24-bit / 192kHz
Optical ADAT I/O channels:	no
MIDI I/O:	no
Wordclock:	no
Headphone output:	no
Power via interface:	Da
Integrated control interface:	no
Low-latency monitoring:	no
Microphone preamp channels:	0
Drivers:	ASIO2, CoreAudio
S/P-DIF:	no
USB type input:	USB-B
