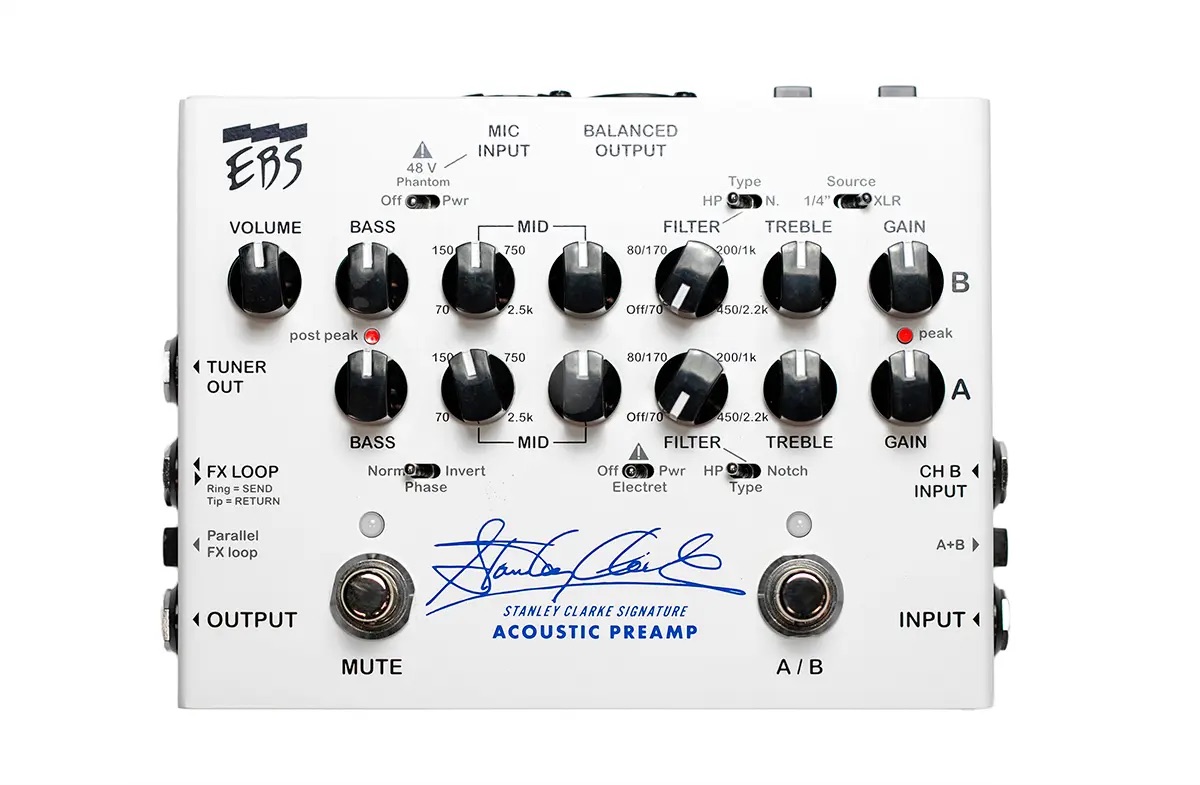

EBS Stanley Clarke Pre Amp

EBS Stanley Clarke Pre Amp – Preamplifier with 2 channels for acoustic instruments.

• 2-channel preamplifier (A/B or A+B)
• 2 footswitches for A/B Mute
• Individual High Pass/Notch filter for each channel
• Effects Loop (series/parallel)
• Control:
  • 2 x gain
  • Treble
  • Midrange filter
  • Midrange frequency band
  • Bass
  • 1 x volume
  • Buttons for: Gnd Lift, SPKR Sim, Parallel FX Loop
  • Switches: Source (1/4"/ XLR), Phase (Normal/Invert), Electret (Off/PWR), 2x Type (HP/Notch)
• Connections:
  • 2 x 6.3 mm jack inputs
  • XLR microphone input (channel B) requiring Phantom Power 48 V
  • Electret (channel A)
  • Tuner output: 6.3 mm jack
  • AUX input: 3.5 mm jack
  • Headphone output: 3.5 mm jack
  • Pre/post Bal output: XLR
  • Main output: 6.3 mm jack
• Input impedance 100 kohm
• Dimensions: 168 x 124 x 53 mm
• Weight: 660 g
• Included power supply 9 V DC, 500 mA
