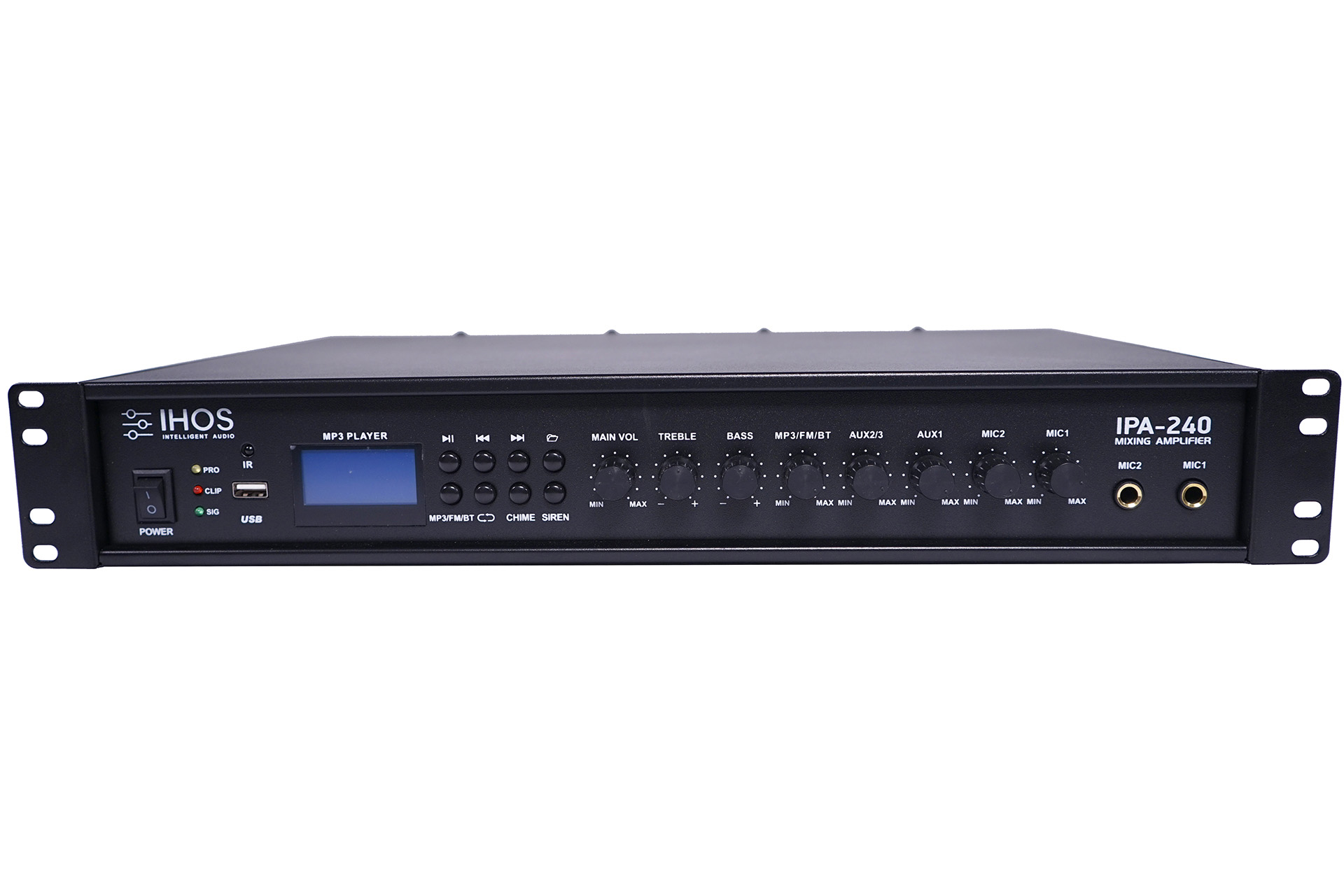

FOS IPA-240 - Mixer amplifier for public address systems, with a nominal power of 240 Watts. It is ideal for both standard installations (8 Ohms) and for line voltage systems (70V/100V), equipped with modern playback features (MP3, Bluetooth, FM Tuner) and multiple connection options.
Mixer amplifier for public address Nominal Power: 240 Watts.
Versatile Outputs: Supports both types of speaker systems:
Constant Voltage (High Impedance): 100V, 70V.
Constant Resistance (Low Impedance): 8 Ohms.
Integrated Media Player:
MP3 Player (USB interface).
Bluetooth.
FM Tuner.
LCD Screen.
IR control function (infrared).
Tone Control: Equalizers (EQ) for Treble and Bass for the Master output.
Treble: +/- 12 dB 10kHz.
Bass: +/- 12 dB 100 Hz.
Extended Protection: Includes protection against AC short circuit, overheating, overvoltage, overcurrent, short circuit, DC and muting at startup.
Connectivity:
Microphone Inputs: 2 x Mic inputs (6.3mm TS, unbalanced).
Line Inputs (Aux): 3 x Line/Aux inputs (Stereo RCA, unbalanced).
Line Output (Aux Output): 1 x Line output (Stereo RCA, unbalanced).
Input Sensitivity:
Mic: -60dB, 600 Ohms.
Aux: -20dB, 310k Ohms.
Aux Output: 0dB, 600 Ohms.
Frequency Response: 20 Hz – 20 kHz
Signal-to-Noise Ratio (S/N):
Microphone Input: >66dB.
AUX Input: >75dB.
Total Harmonic Distortion (T.H.D.): <0.5% at 1 kHz, at 1/3 of nominal power.
Power Supply: 220-240VAC, 50/60Hz.
Power Consumption: 250 Watts (at nominal power).
MP3/FM EQ Effects: 5 preset EQ sound effects for the audio output of the MP3 player and FM tuner.
