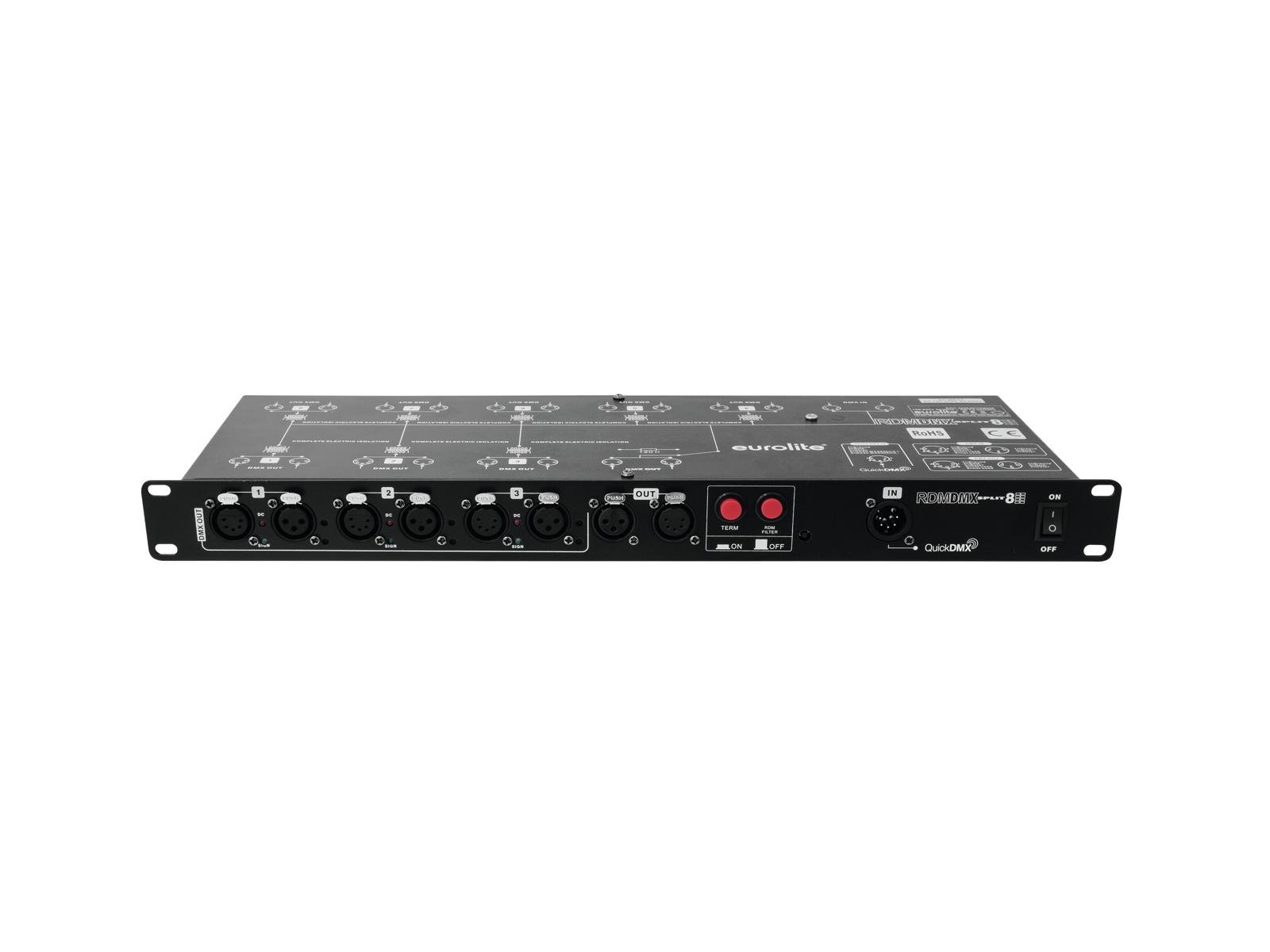

Eurolite DMX Split 8X RDM Splitter

DMX Splitter

dMX splitter for splitting one DMX input signal to 8 DMX outputs
switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
input and outputs XLR 3-pin and 5-pin each
each DMX output with independent driver and status indicator
input and outputs galvanically isolated

262¹³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

1287 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Eurolite DMX Split 8X RDM Splitter Add to cart: 262¹³ €

Splitter (RDM) with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets

DMX splitter for splitting one DMX input signal to 8 DMX outputs
Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
Input and outputs XLR 3-pin and 5-pin each
Each DMX output with independent driver and status indicator
Input and outputs galvanically isolated
Input and outputs with a set of respective power supply and internal fuse
Switchable termination resistor
Control via QuickDMX via 5-pin XLR (M) mounting version (optional); RDM
(19") 48.3 cm rack installation 1 U

Package contents

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	5 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	8 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator 8 x 5-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator 1 x 5-pin XLR (F) mounting version Bypass 1 x 3-pin XLR (F) mounting version Bypass
Control:	QuickDMX via 5-pin XLR (M) mounting version (optional); RDM
Control elements:	Bypass/terminating resistor switch, power switch
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48,3 cm Depth: 14,5 cm Height: 4,45 cm
Weight:	2,55 kg
