Cameo SB8.3

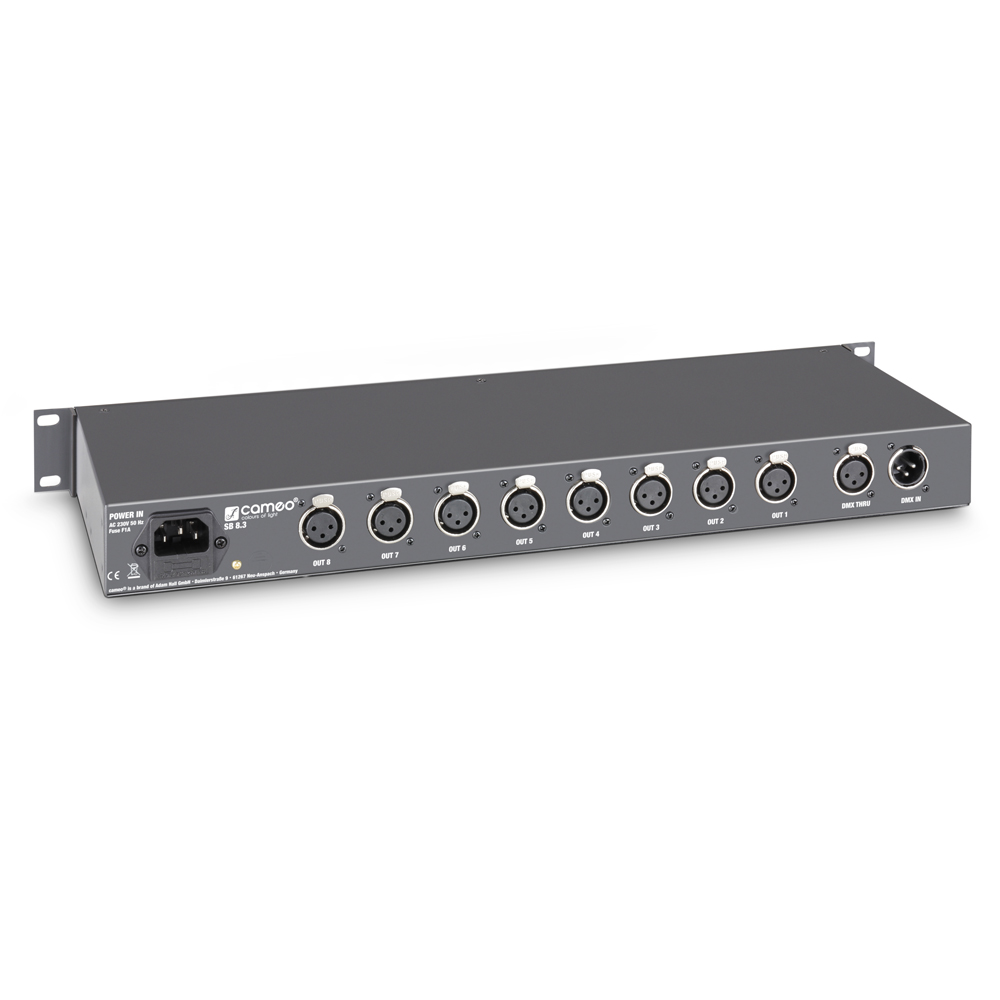

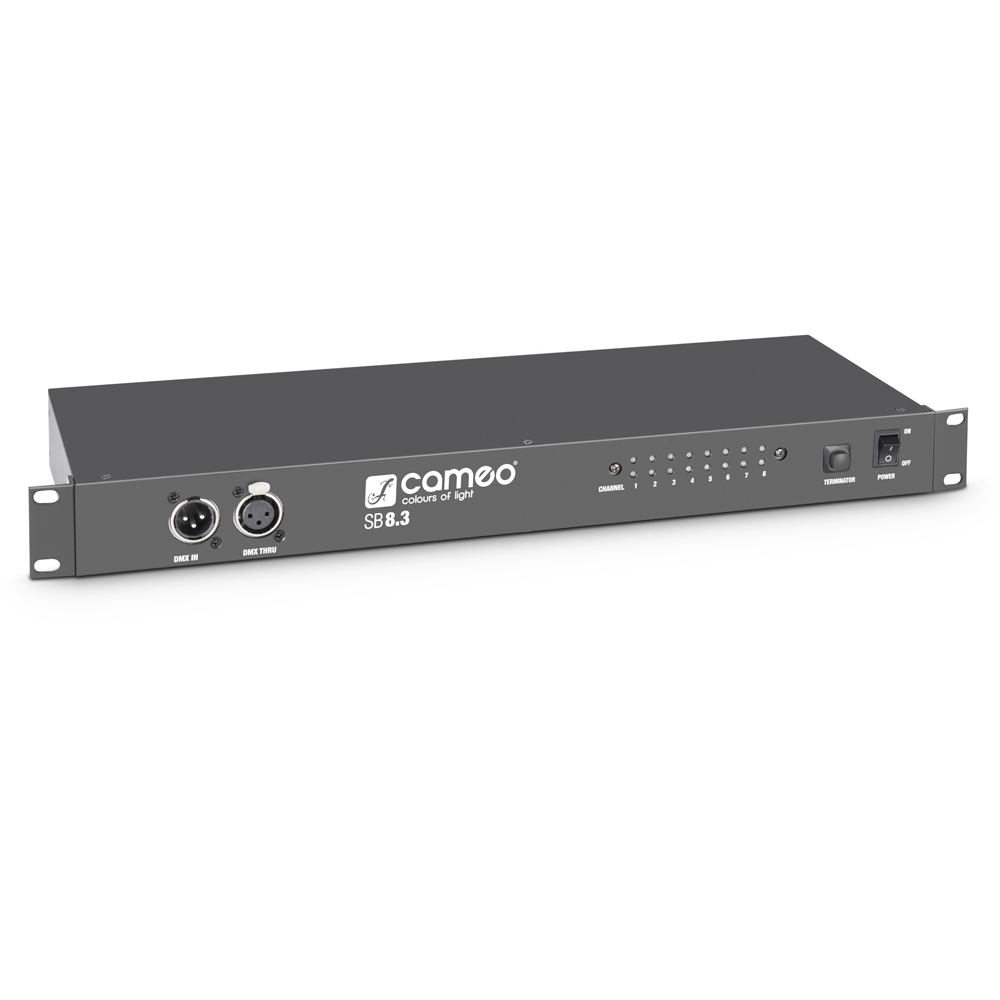

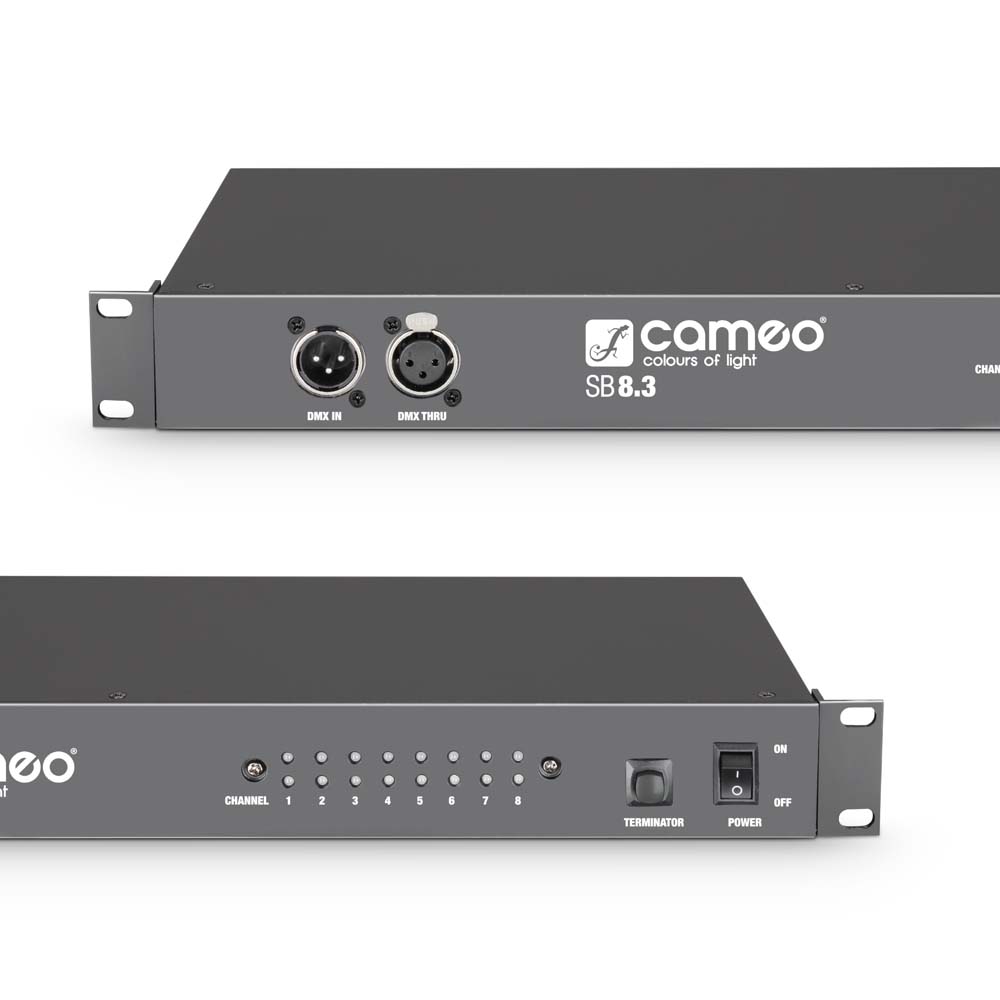

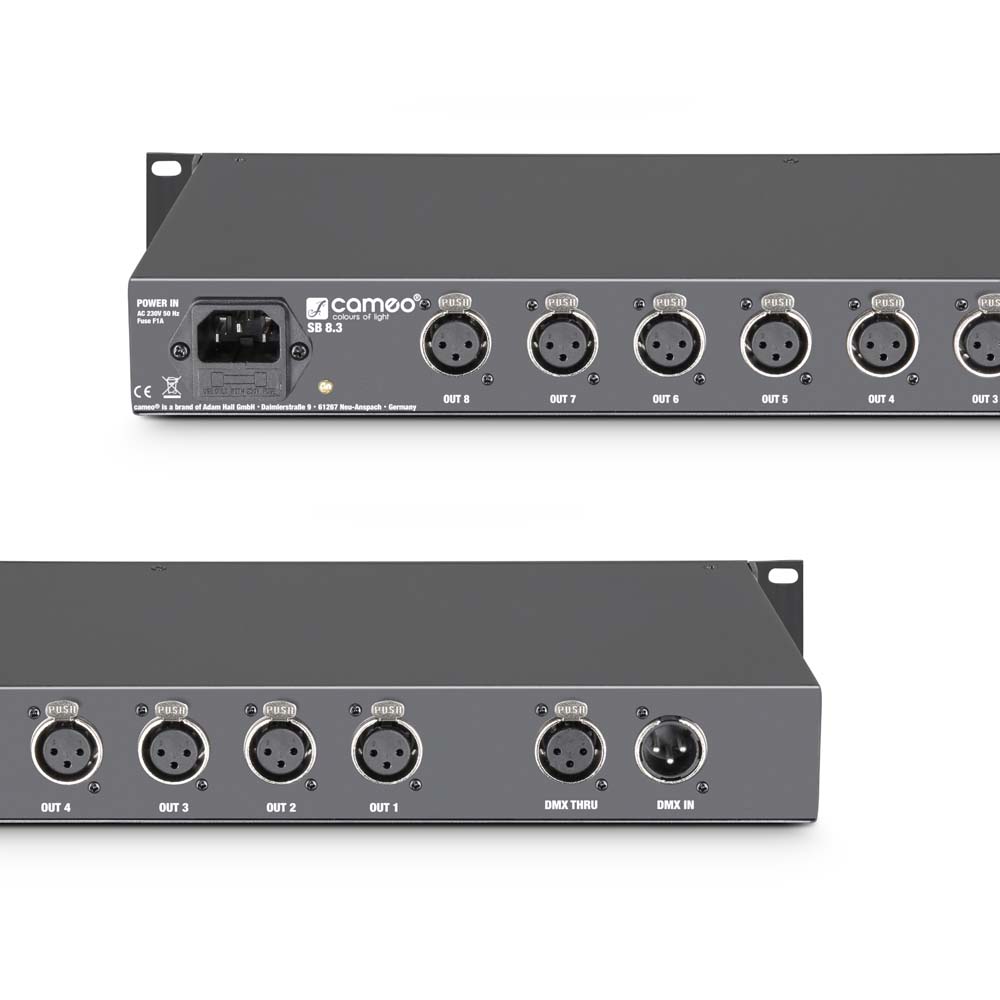

Cameo SB8.3 - DMX splitter / booster with 8 channels, is the professional solution for DMX network configuration. It occupies a 19" rack unit and amplifies the DMX input signal, distributing it to 8 electrically isolated outputs. It can be connected directly to the DMX controller or to DMX devices. The input and thru connectors are duplicated and are located on both the front and back of the unit, connected in parallel. LED indicators for power and DMX status are on the front of the unit. IEC cable included. It is also available in a 5-pin version (CLSB85). It has a selectable 120 Ohm terminal resistor on DMX Thru and for the on/off button.

• Type: DMX 512 protocol
• DMX Inputs: 2 (parallel)
• DMX Input Connectors: 3-pin XLR male
• DMX Thru Output: 2 (parallel)
• DMX Thru Output Connectors: 3-pin XLR female
• DMX Outputs: 8 (electrically isolated)
• DMX Output Connectors: 3-pin XLR female
• Controls: Power On/Off, DMX Thru Terminator
• Indicators: 8 x Power LED, 8 x Signal LED
• Power Connector: IEC
• Power Supply: via transformer
• Operating Voltage: 230 V AC, 50 Hz
• Power Consumption (max.): 15 W
• Dimensions (W x H x D): 483 x 44 x 160 mm
• Included Accessories: power cable
