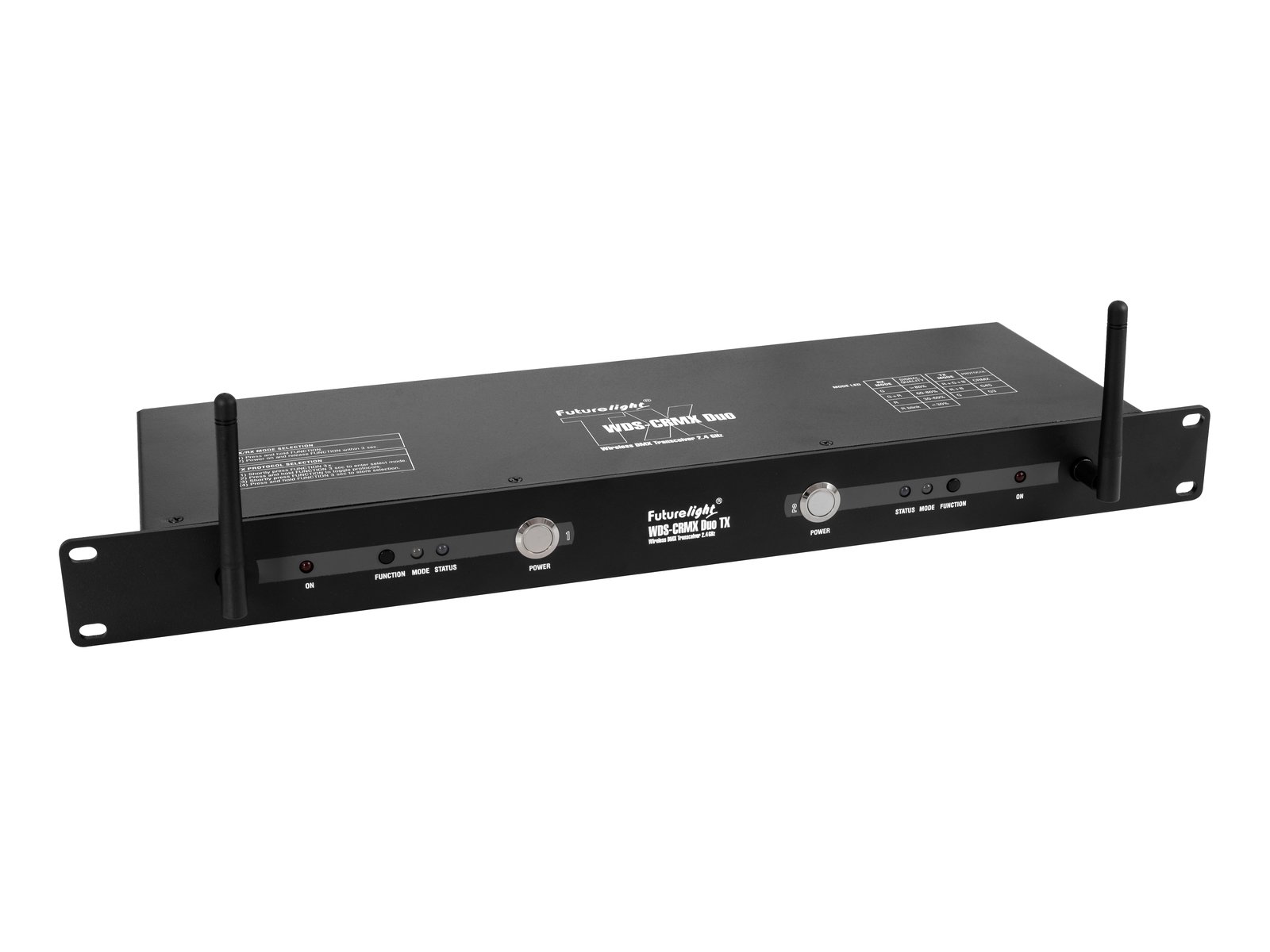

FutureLight WDS-CRMX Duo TX Wireless DMX Transceiver

DMX Transmitter/Receiver

transceiver, to be used as transmitter or receiver
control via CRMX by LumenRadio; W-DMX by wireless solution
adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
can receive and process up to 1024 DMX channels
can transmit up to 1024 DMX channels

523⁰⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

2579 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

FutureLight WDS-CRMX Duo TX Wireless DMX Transceiver Add to cart: 523⁰⁰ €

Wireless DMX system 2.4 GHz - two transceivers with CRMX unit in 19" housing

Transceiver, to be used as transmitter or receiver
Control via CRMX by LumenRadio; W-DMX by wireless solution
Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
Can receive and process up to 1024 DMX channels
Can transmit up to 1024 DMX channels
Operating range up to 600m with line-of-sight
Multicolored LED indicator
Mains input and output for power linking up to 8 units
(19") 48.3 cm rack installation 1 U

Package contents

1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	3 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:	P-Con (gray), mounting version
Device fuse:	T 1 A Fuse serviceable
DMX channels:	Input 1024 Output 1024
DMX input:	2 x 3-pin XLR (M) mounting version 2 x 5-pin XLR (M) mounting version
DMX output:	2 x 3-pin XLR (F) mounting version 2 x 5-pin XLR (F) mounting version
Control:	CRMX by LumenRadio; W-DMX by wireless solution
Status LED:	DMX, level meter, power
Carrier frequency:	2,4 GHz
Modulation:	GFSK
Antenna gain:	3 dBi
Parallel mode:	Max. 10 transmitter
Range:	Range up to 600m with line-of-sight
Color:	Black
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Length: 48,3 cm Depth: 14,0 cm Height: 44 cm
Weight:	1,33 kg
