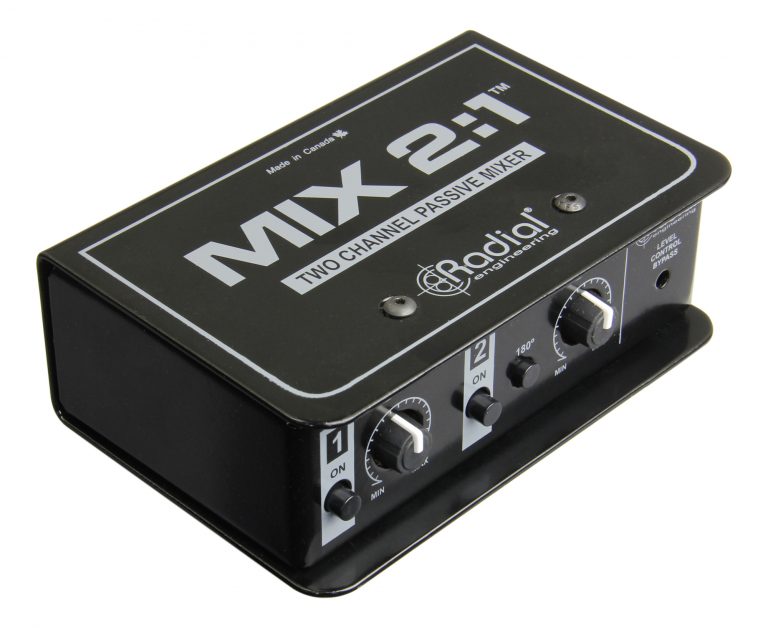

Radial Engineering MIX2:1

Passive Mixer

passively sums two audio channels into one mono output.
equipped with 6.3 mm TRS and XLR balanced connectors.
features individual level controls and a bypass function.
includes groundlift with individual switch.
compact design with a frequency response of 20 - 20,000 Hz.

187⁰⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

919 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Radial Engineering MIX2:1 Add to cart: 187⁰⁶ €

Radial Engineering MIX2:1 - A compact, simplistic yet extremely useful mixer that passively sums two audio channels into a single mono channel. This allows you to easily mix the stereo outputs of a console, recording interface, or portable playback device into a mono output, or to mix any two signals together and adjust their level settings individually.

2 x inputs with 6.3 mm TRS connectors
2 x XLR inputs
Groundlift with individual switch
Individual control knobs
”Level Control Bypass” function
180° polarity inversion
Input impedance: 8 Ohms
Frequency response: 20 - 20,000 Hz
Dimensions: 12.7 x 8.3 x 4.7 cm
Weight: 0.8 kg

Product code: 7452735
