Palmer PRM-LS

Signal Splitter

modular passive signal splitter with 4 channels.
includes one XLR input, one parallel XLR output, and 2x isolated transformer XLR outputs per module.
nominal input/output impedance of 600 Ohms.
maximum input and output level of +20 dB.
durable metal housing with electrostatic paint finish.

333⁶⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

1638 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Palmer PRM-LS Add to cart: 333⁶⁷ €

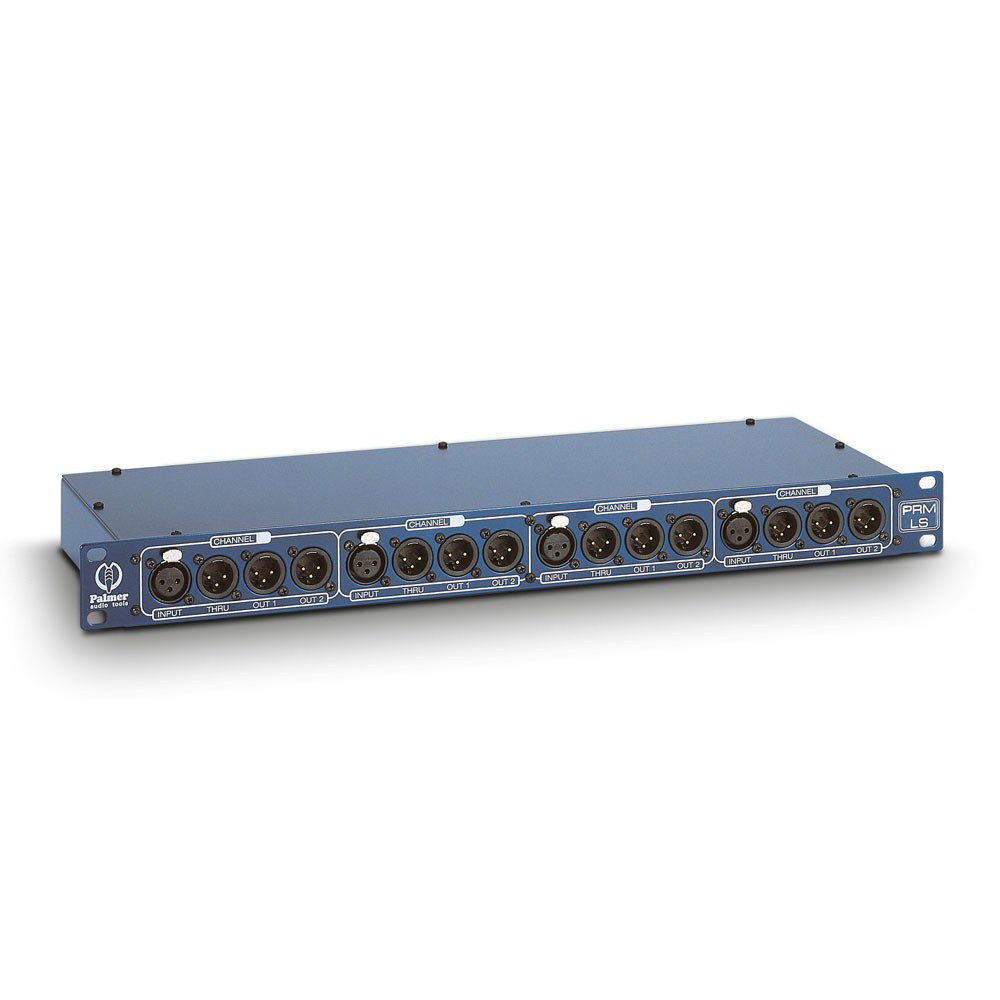

Palmer Pro PRM-LS - modular passive signal splitter with 4 channels. Each module of the PRM-LS has 4 channels, comprising one XLR input, one parallel XLR output, and 2x isolated transformer XLR outputs. Thanks to the audio frequency transformers, the sound is unaffected, and background noise is prevented. Nominal input/output impedance: 600 Ohms. Input level +20 dB. Weight 2.3 kg, dimensions 480x165x45 mm.

Technical specifications:

Type: splitter
Split type: 1 in 2+1
Channels: 4
Inputs: 4
Input connectors: XLR
Maximum input level: +20 dB
Number of split outputs per channel: 2
THRU outputs per channel: 1
Maximum output level: +20 dB
Output connectors: XLR
Isolated transformer outputs: yes
Housing: metal
Finish: electrostatic painted
Dimensions (W/D/H): 480x165x45 mm
Weight: 2.3 kg
