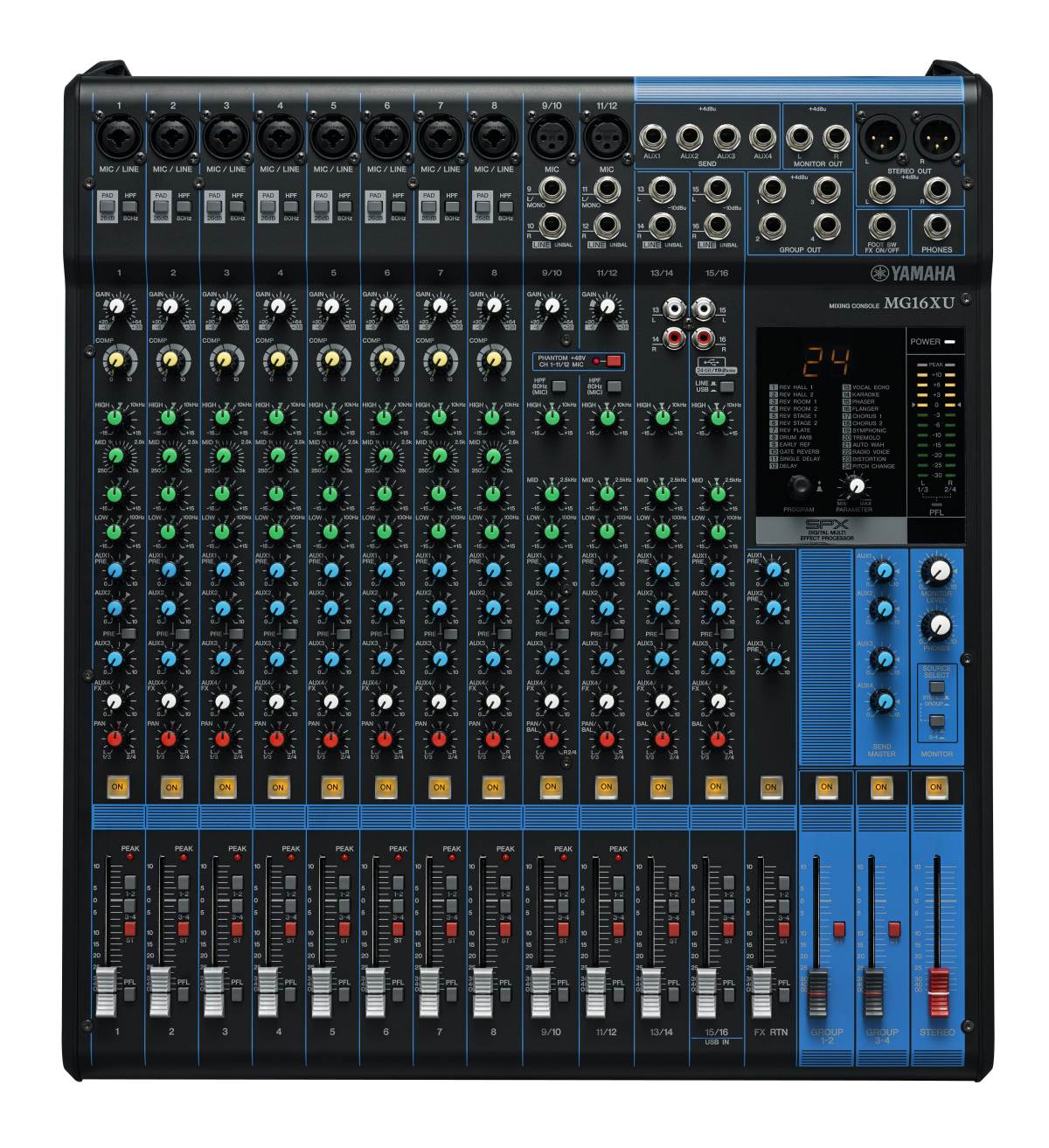

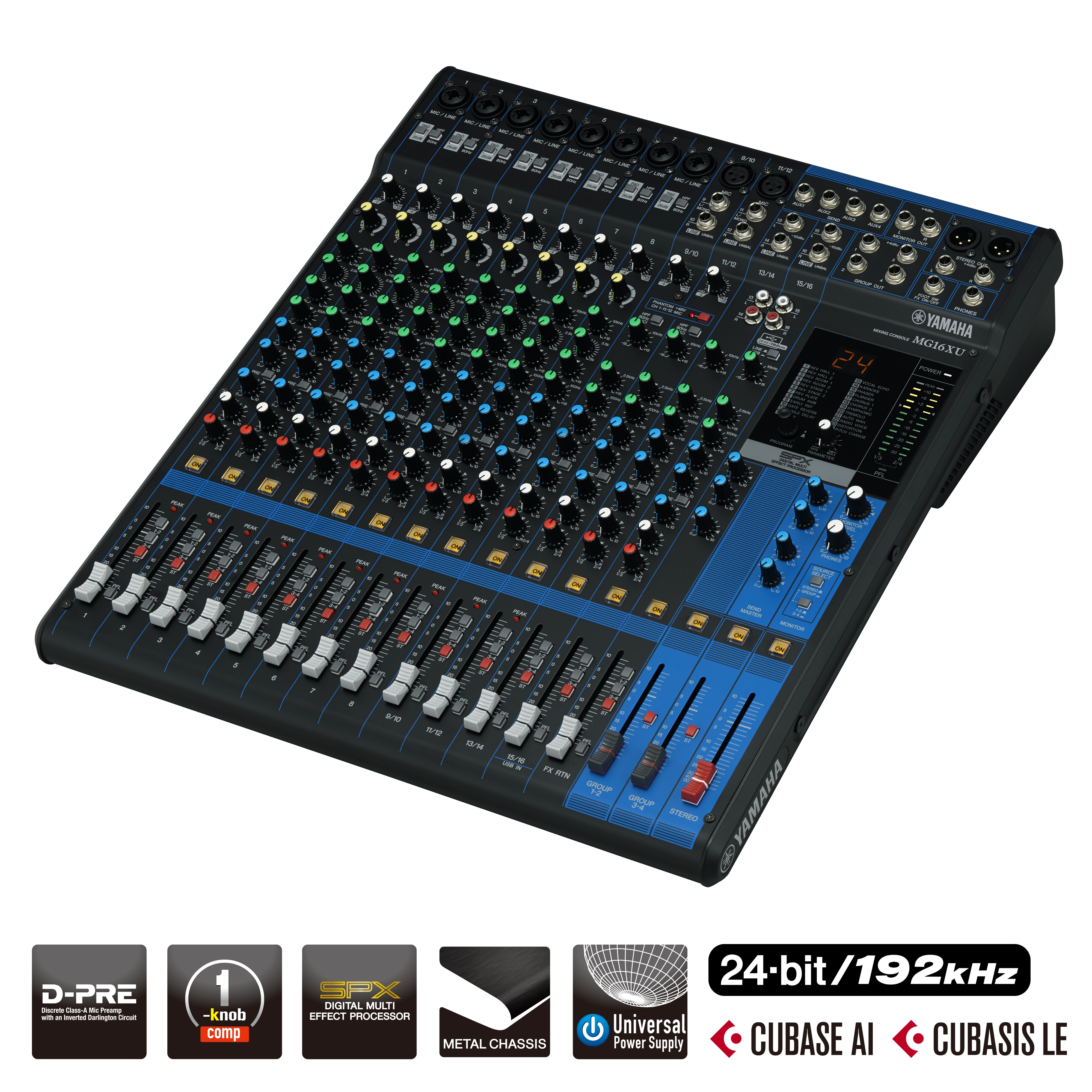

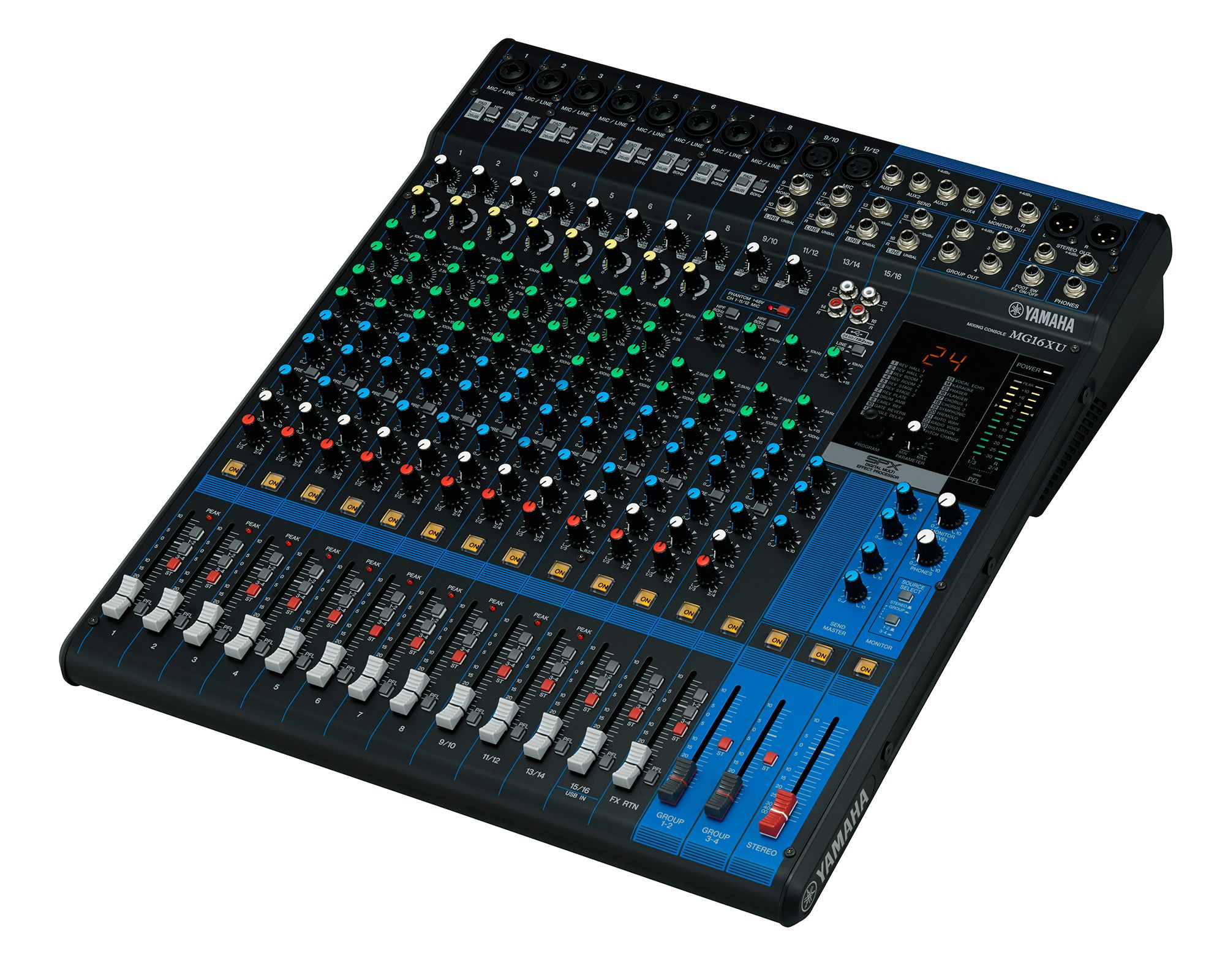

Yamaha MG 16XU

Yamaha MG 16XU, mixing console with 16 channels, maximum 10 microphone / 16 line (8 mono + 4 stereo), 4 x sub-groups + 1 stereo group, audio interface via USB and effects processor:

• 10 microphone channels / 16 line (8 mono + 4 stereo)
• SPX effects processor with 24 programs
• USB audio interface 24-bit / 192 kHz
• 8 x microphone/line inputs with combo XLR/Jack connection
• channels 9/10 and 11/12 can be used for microphone or stereo line signal
• 4 x group buses + 1 stereo bus
• 4 auxiliaries
• 3-band equalizers
• D-Pre preamplifiers with inverted Darlington circuit
• compressor on channels 1-8
• 26 dB pad and high-pass filter at 80 Hz on channels 1-8
• Phantom Power supply of +48V
• balanced XLR outputs
• rack mounting kit included
• solid metal housing
• dimensions: 444 x 130 x 500 mm
• weight: 6.8 kg
