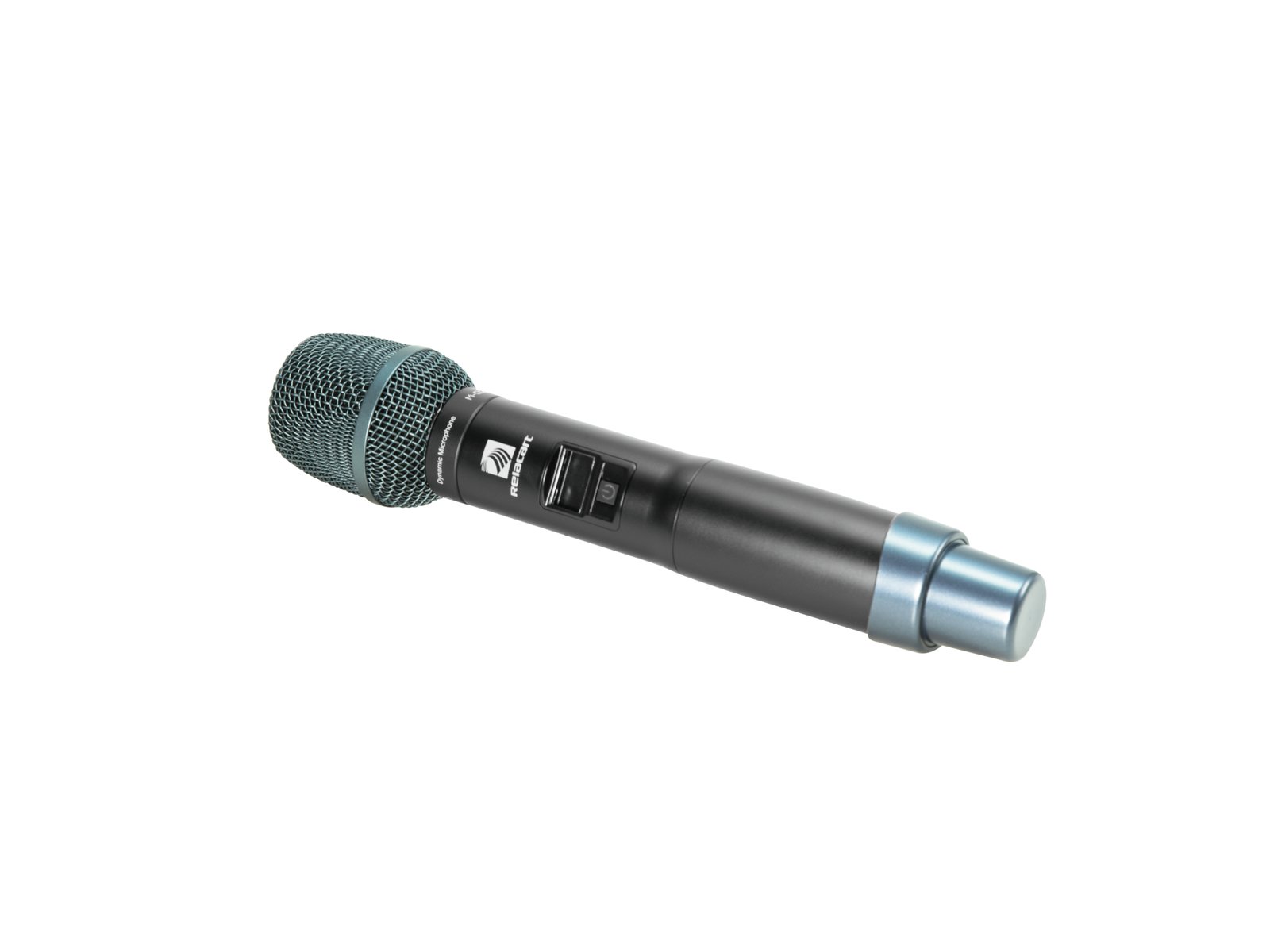

Relacart UH-222D Microphone

Wireless Handheld Transmitter

microfon de mână dinamic cu tehnologie de ton pilot UHF (PLL)
carcasa ergonomica din aliaj de aluminiu, aplicabila pentru turism
10 grupuri cu 90 de frecvențe fixe pe o lățime de bandă de comutare de 11 MHz
sincronizare ușoară și fără erori între receptor și transmițător prin semnal infraroșu
puterea de ieșire RF Hi/Low reglabilă

120⁶⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

615 points of loyalty

Shipping 16.00 €

Warranty 24 months

Returns 14 days

request details

Relacart UH-222D Microphone Add to cart: 120⁶⁷ €

Handheld microphone with PLL multi-frequency transmitter

Dynamic handheld microphone with UHF pilot tone technology (PLL)
Ergonomic aluminium alloy housing, suitable for touring
10 groups with 90 fixed frequencies across a switching bandwidth of 11 MHz
Easy and error-free synchronisation between receiver and transmitter via infrared signal
Adjustable RF output power Hi/Low
Adjustable gain level Hi/Mid/Low
Capsule M-022
Directly compatible with Shure SM58 capsule
Polar pattern: Super cardioid
OLED display
UHF 863 - 865 MHz License-free and approved in Europe
UHF 823 - 832 MHz License-free and approved in large parts of Europe
Operating range up to 80 m

Package contents

Type:	Handheld transmitter
Power supply:	3 V DC
Capsule type:	Dynamic
Polar pattern:	Super cardioid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	120 - 16000 Hz
Sensitivity:	-53 dB
Max. SPL:	145 dB
Display type:	OLED display
Display:	Battery level, frequency, channel
Control elements:	Gain switch (high-mid-low), transmitter power switch (high-low)
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:	90 switchable frequencies In 10 groups with up to 10 preset frequencies each
Modulation:	FM
RF output power:	10 mW
Range:	Operating range up to 80 m
Bandwidth switching:	11 MHz
Switch:	On/off/mute switch
Material:	Aluminium
Dimensions:	Length: 26 cm Diameter: Ø 5.4 cm
Weight:	280 g
