LD Systems U306 BPH

Name: LD Systems U306 BPH
Brand: LD Systems
SKU: LDU306BPH
Price: 196.36 EUR
Availability: BackOrder

Wireless headset set

UHF Band: 655 - 679 MHz, operating range of 100m in open field.
supports 6 simultaneous systems on the frequency band.
transmitter/receiver synchronization via infrared ASC.
receiver with metal housing and audio frequency range of 25 Hz - 16 kHz.
headset microphone with cardioid pattern and frequency range of 20 - 20,000 Hz.

196³⁶ €

On order – delivery date confirmed after ordering Request details

Add to cart

also deliverable via

1022 points of loyalty

Shipping 16.00 €

Warranty 24 months

Returns 14 days

request details

LD Systems U306 BPH Add to cart: 196³⁶ €

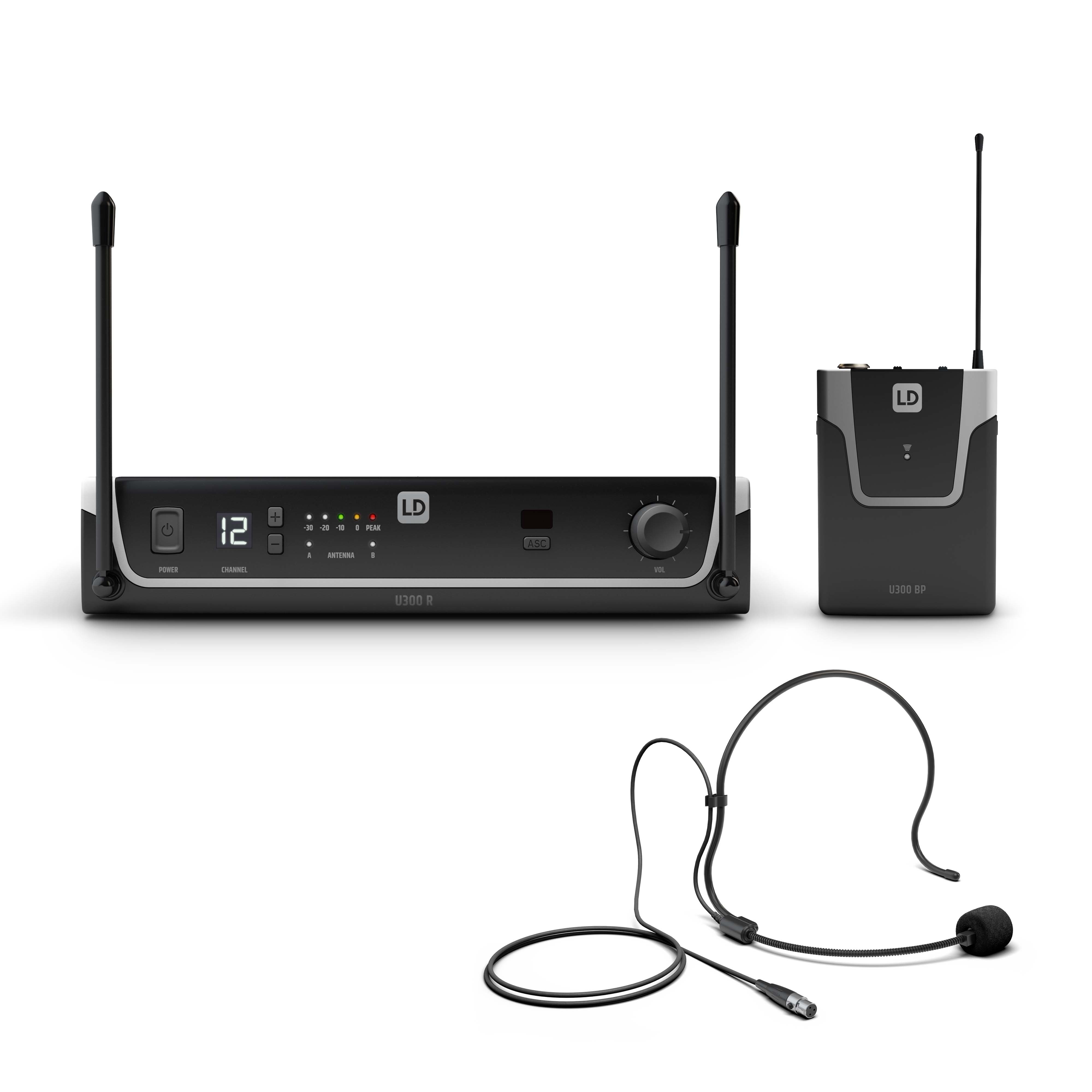

U306 BPH - wireless set with bodypack transmitter and headset microphone, UHF Diversity system with FM technology featuring 12 channels, recommended for semi-professional applications:

UHF Band: 655 - 679 MHz
operating range of 100m in open field
allows the use of 6 simultaneous systems on the frequency band
transmitter/receiver synchronization via infrared, ASC
receiver U306R:
- metal housing
- audio frequency range (+/-3 dB): 25 Hz - 16 kHz
- 12 preset UHF frequencies
- squelch, pilot tone
transmitter U306 BP
- RF power of 10 mW,
- powered by 2 x AA batteries,
- operating time of approximately 10 hours
- controls: switchable gain, on/off
headset microphone WS1001MH:
- condenser type
- cardioid pattern
- impedance: 680 Ohms
- frequency range: 20 - 20,000 Hz
- mini XLR connector with 3 pins

Product code: LDU306BPH

Unit of sale: set

Specifications:

Capsule type:	condenser
Polar pattern:	cardioid
Communication frequency, global classification (MHz):	600 - 700
System type:	Analog
Integrated antennas in receiver housing:	No
