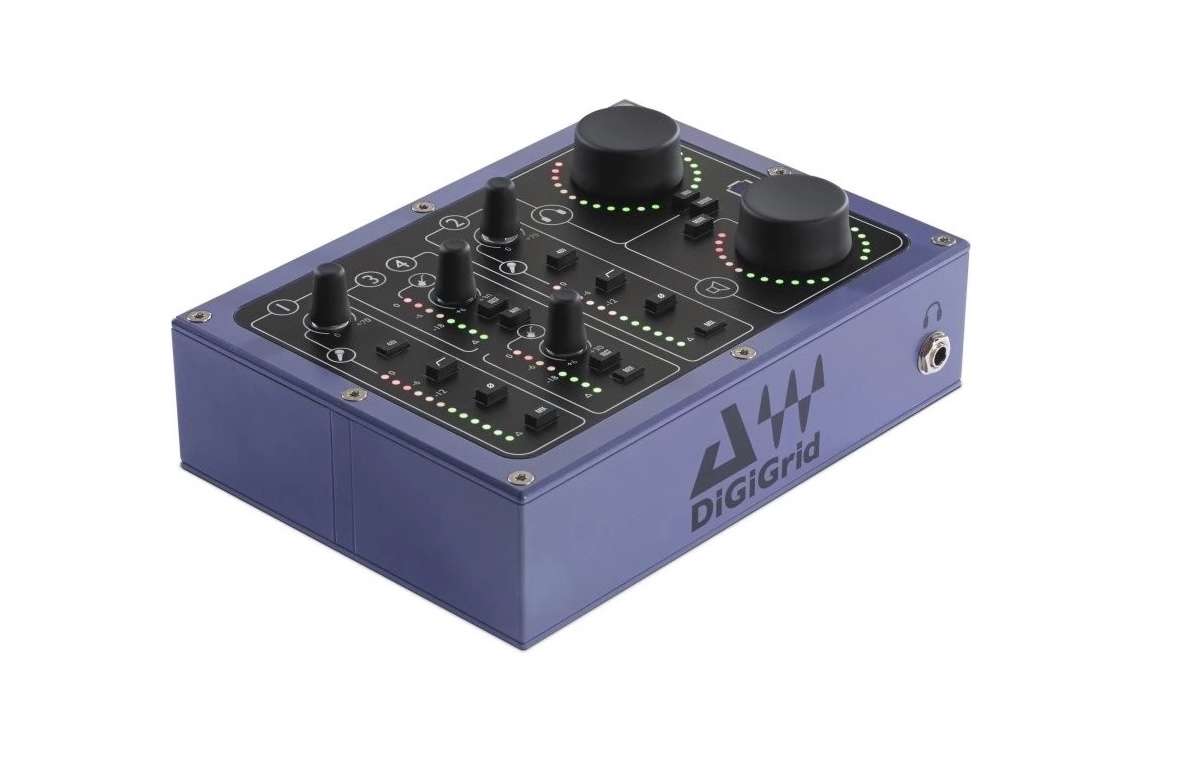

DiGiGrid DiGiGrid D - Audio interface with four inputs and six outputs, offering great flexibility in various applications. Inputs 1 and 2 are for microphone/line, while inputs 3 and 4 are for line/instrument. It features two outputs with level control for monitoring and two fixed line outputs. It is ideal for monitoring with headphones or speakers, both at home, in the studio, and on the go. Additionally, it enhances your preferred DAW to expand recording capabilities.
Like the entire range, expansion is simple: DiGiGrid D integrates perfectly with other DiGiGrid products, providing the user with more I/O and additional functionality.
Features:
Compact format: 4 inputs, 6 outputs, 96 kHz
Can be used standalone or as an interface in a larger DiGiGrid system
Analog control for sonic performance
Designed for any application: studio, educational, live
Professional quality audio interface for PC and MAC
High resolution for input and output
Connects to the SoundGrid network via Ethernet cable (Cat 5e/Cat 6)
Specifications:
Microphone Input:
Input impedance: 1K5Ω
Gain: from 0 to +70dB
Frequency response: (Analog - Analog) -3dB
Harmonic distortion: 0.005% (40dB Gain)
EIN noise: -127dB (70dB Gain)
High Pass filter: -3dB 100Hz 18dB/Octave
Line Input:
Input impedance: 1MΩ/10KΩ
Gain: from +6 to +30dB
Frequency response: (Analog - Analog) -3dB
Harmonic distortion: 0.005%
Noise: Min Gain -82dBu, Max Gain -73dBu
Headphones:
Gain range: from infinity to +10dB
Maximum output level:
16Ω: 2.3V
32Ω: 3.7V
100Ω: 6.0V
200Ω: 7.5V
600Ω: 8.8V
Monitor Outputs:
Maximum output level: +22dBu
Output impedance: 50Ω
Harmonic distortion: 0.005%
Weight and Dimensions:
Weight: 1.7kg
Dimensions: 78.5 x 220.5 x 160mm
System Requirements:
Apple Mac with Intel i5 or newer, 6 GB RAM, OS 10.8.5 or newer
PC with Intel i5 or better, 8 GB RAM, WIN 7 SP1 / 8.1 / 10
