Vogels 7675 PRO, 40"-77", max.35 kg, Black

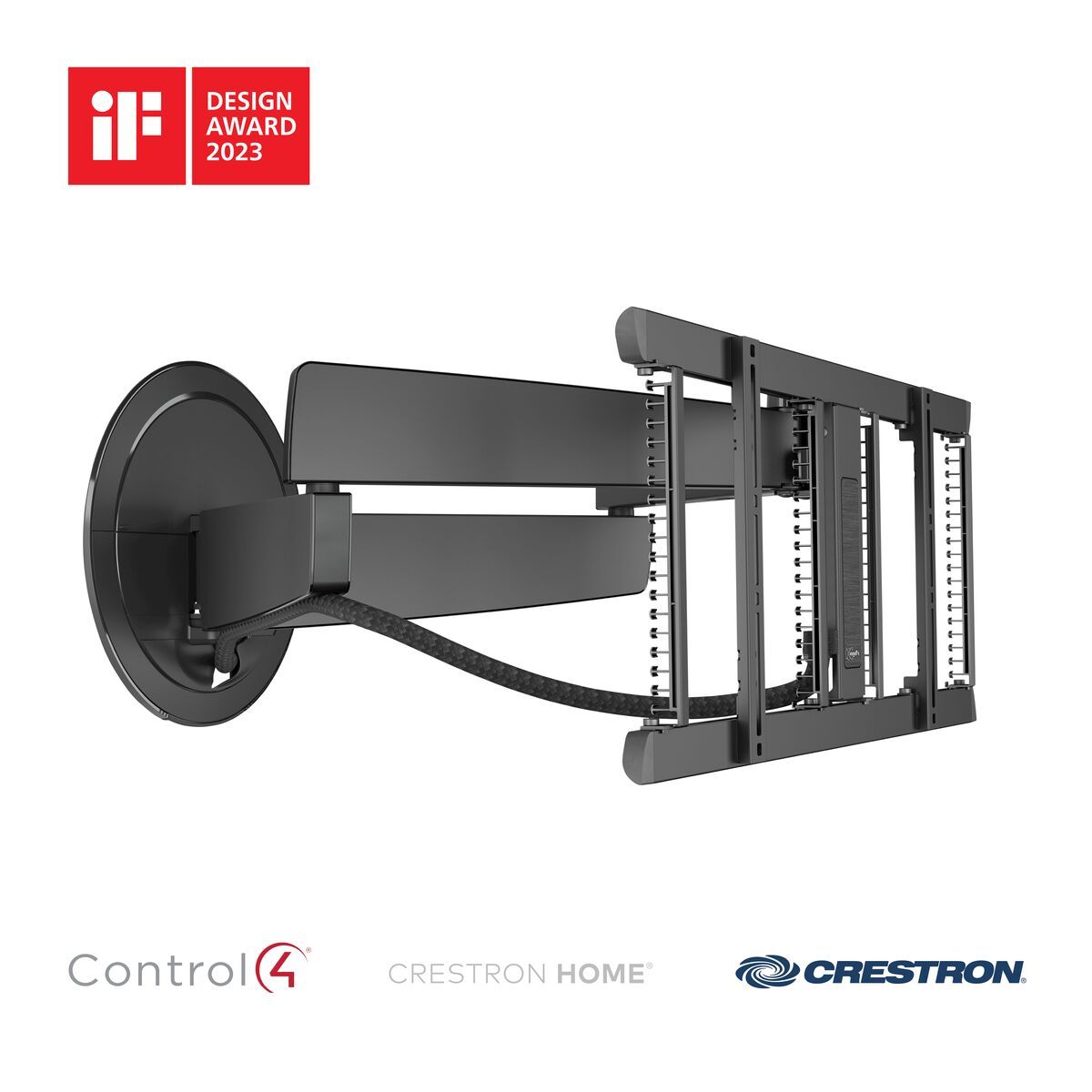

The SIGNATURE MotionMount PRO wall mount from Vogel's is a motorised mounting system that can rotate the mount up to 120° and is suitable for screens between 40 and 77 inches, weighing up to 35 kg. It is equipped with Ethernet and RS-232, ideal for luxury offices and hotel environments.

• This mount is preconfigured for Crestron and Control4 home control systems.
• Installation is straightforward, with all components included and 3D-Leveling™ for easy adjustment.
• The mount automatically moves to a preferred setting when the screen is turned on and can return to the initial position when it is turned off.
• The Cable Inlay System (CIS®) conceals cables, and the aluminium cable column TVA 7000 is available for situations where cables cannot be hidden in the wall.
• The system is secure, with electronic protection for the screen and TÜV certification.


  Technical specifications

  Unique box EAN: 8712285354984
  Series: SIGNATURE
  Minimum screen size (inch): 40
  Maximum screen size (inch): 77
  VESA:
  • 200 mm x 100 mm
  • 200 mm x 200 mm
  • 200 mm x 300 mm
  • 300 mm x 200 mm
  • 300 mm x 300 mm
  • 400 mm x 200 mm
  • 400 mm x 300 mm
  • 400 mm x 400 mm
  • 600 mm x 200 mm
  • 600 mm x 300 mm
  • 600 mm x 400 mm
  Minimum distance from wall (mm): 77
  Maximum distance from wall (mm): 715
  Maximum weight load (kg): 35
  Rotation: Moves forward and rotates (up to 120°)
  Colour: Black
  In the box:
  • Wall mount
  • Interface
  • Wall mounting kit
  • TV fixing kit
  • Quick installation guide
  • DrillRight™ AR application
  • Drilling template
  • Hex key
  • Cable handle
  • Infrared remote control
  • AC power adapter
  • HDMI cable - 2M
  Cable management:
  • Integrated cable management
  • Cable insertion system CIS®.
  • Cable handle
  App controlled: Yes
  Warranty for electrical parts: 2 years
  Remote controlled: Yes
  Motorised: Yes
  Voltage:
  100-240V
  50/60 Hz
  Standard remote control: RS-232
  Minimum horizontal drilling model (mm): 200
  Maximum horizontal drilling model (mm): 600
  Minimum vertical drilling model (mm): 100
  Maximum vertical drilling model (mm): 400
  Number of arms: 3
