Eurolite DMX Split 4 Mini Splitter 3pol

DMX Splitter

mini splitter with 3-pin XLR terminals
rugged metal housing
1 x device, 1 x power cord, 1 x user manual, 4 x foot

Variante:

111⁸⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

569 points of loyalty

Shipping 16.00 €

Warranty 24 months

Returns 14 days

request details

Eurolite DMX Split 4 Mini Splitter 3pol Add to cart: 111⁸⁰ €

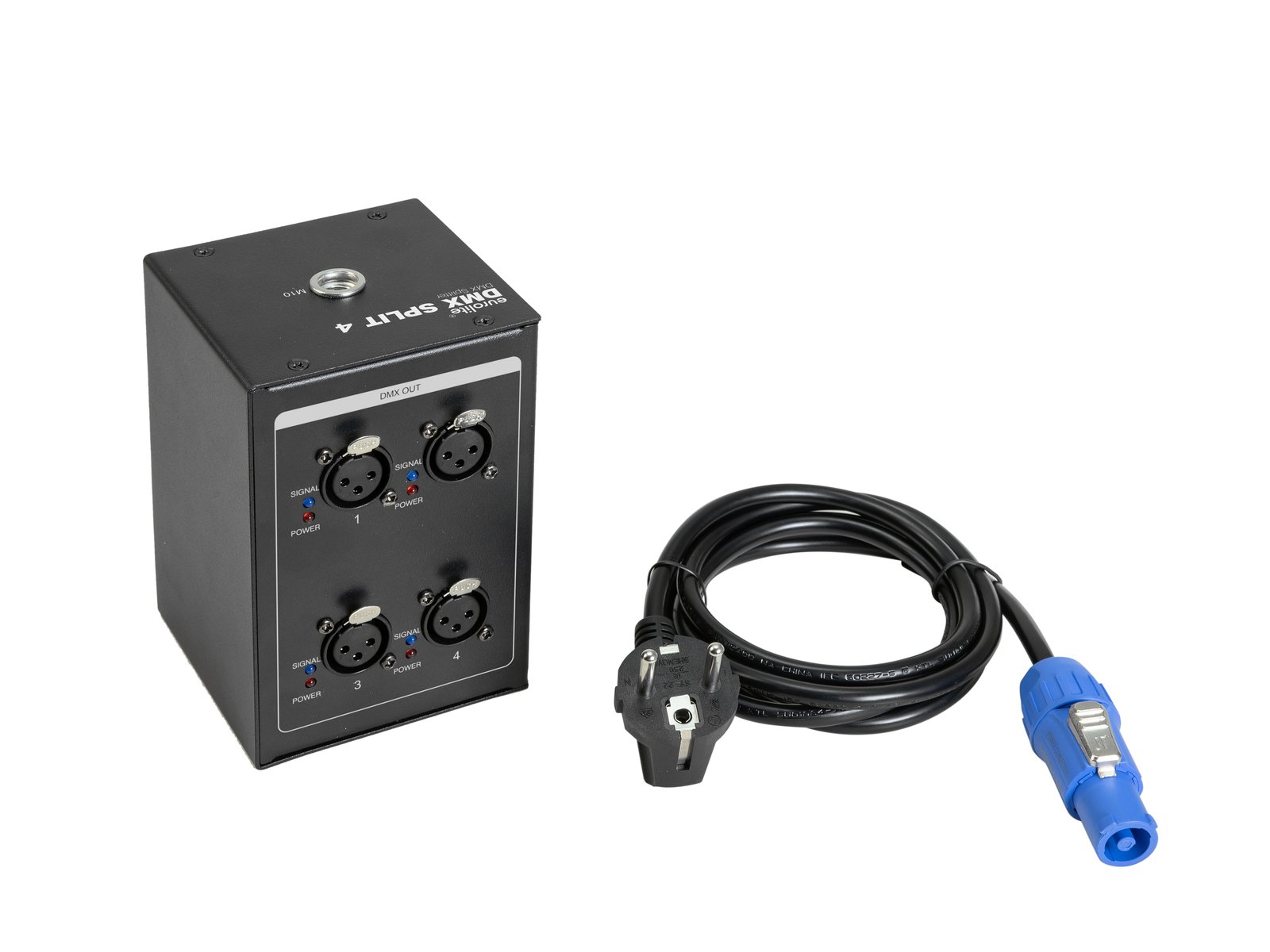

This compact 4-fold splitter is designed for reliable distribution of DMX512 signals in rigs. The unit features 3-pin XLR connectors with status indicators, and a M10 threaded insert for truss attachment. Delivery includes a power cord.

4-fold DMX splitter for truss mounting

Mini splitter with 3-pin XLR terminals
Rugged metal housing

Package contents

1 x device, 1 x power cord, 1 x user manual, 4 x foot

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	1,5 W
Output current:	Max. 10 A
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	4 x 3-pin XLR (F) mounting version Separate (galvanic) 1 x 3-pin XLR (F) mounting version Bypass
Status LED:	Power, DMX
Dimensions:	Length: 9 cm Width: 9,5 cm Height: 14 cm
Weight:	990 g
