Showtec Compact Power Light Set 4

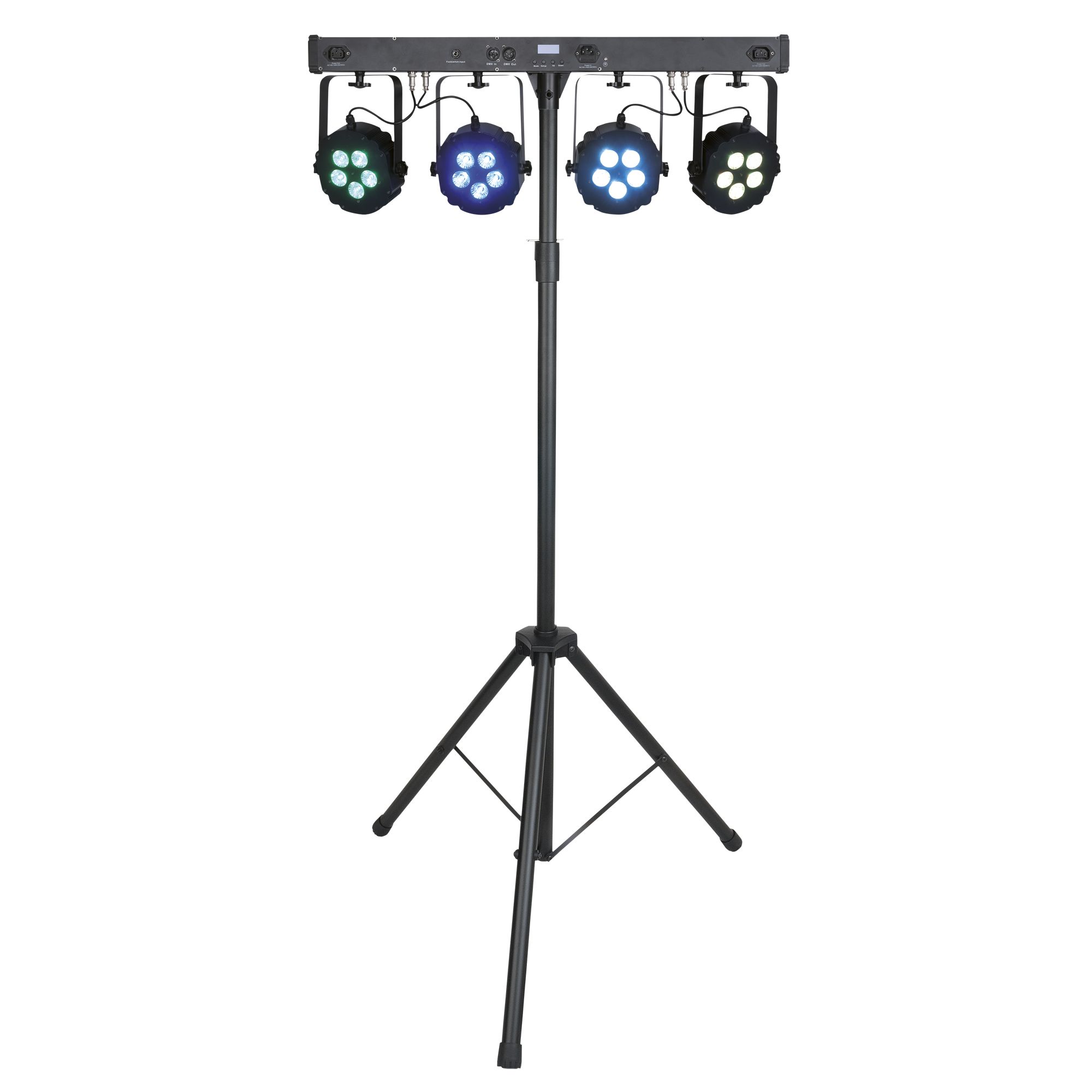

Showtec Compact Power Light Set 4 is a T-bar with 4 RGBW LED spots mounted on a light stand, delivered in a rigid case (hard case) and with a transport bag for the stand. It is a plug and play set, with integrated chase programmes, which can also be controlled via DMX or with the optional footswitch. In DMX mode, it offers multiple DMX personalities: a basic mode for simple control and advanced modes for full control. Due to its short setup time and high luminous power, the Compact Power Light Set 4 is the ideal solution. The white LED also allows for the creation of special pastel shades.

Light Source

• Type of light source: LED
• Number of sources: 20
• Power source: 4 W
• Colour mode: multicolour
• Colour type: RGBW
• LED power current: 0.33 A
• Refresh rate: 7800 Hz
• Laser: no

Optics

• Beam angle (circular): 25°

Control and Programming

• Control modes: DMX, footswitch, Master/Slave, sound activation, stand-alone
• DMX channels: 4, 5, 6, 8, 10, 16, 19
• Protocol: DMX
• Display: LCD
• Dimming curves: linear, quadratic, inverse quadratic, S-curve

Dynamic Effects

• Dimmer: 0–100%
• Strobe: 0–20 Hz

Electrical Specifications and Connections

• Power supply: 100–240 V AC, 50/60 Hz
• Consumption: 90 W
• Input power connector: IEC
• Output power connector: IEC
• DMX input connector: XLR 3 pins
• DMX output connector: XLR 3 pins

Mechanical Specifications

• Height: 70 mm (2.756″)
• Width: 845 mm (33.268″)
• Depth: 55 mm (2.165″)
• Weight: 7 kg (15.432 lb)
• Protection rating: IP20 (indoor use only)
• Housing: aluminium
• Colour: black

Product Properties

• Cooling: convection

Thermal Specifications

• Maximum ambient temperature: 40 °C (104 °F)

Included in the Package

• Cables: IEC cable
• Accessories: bag, stand
