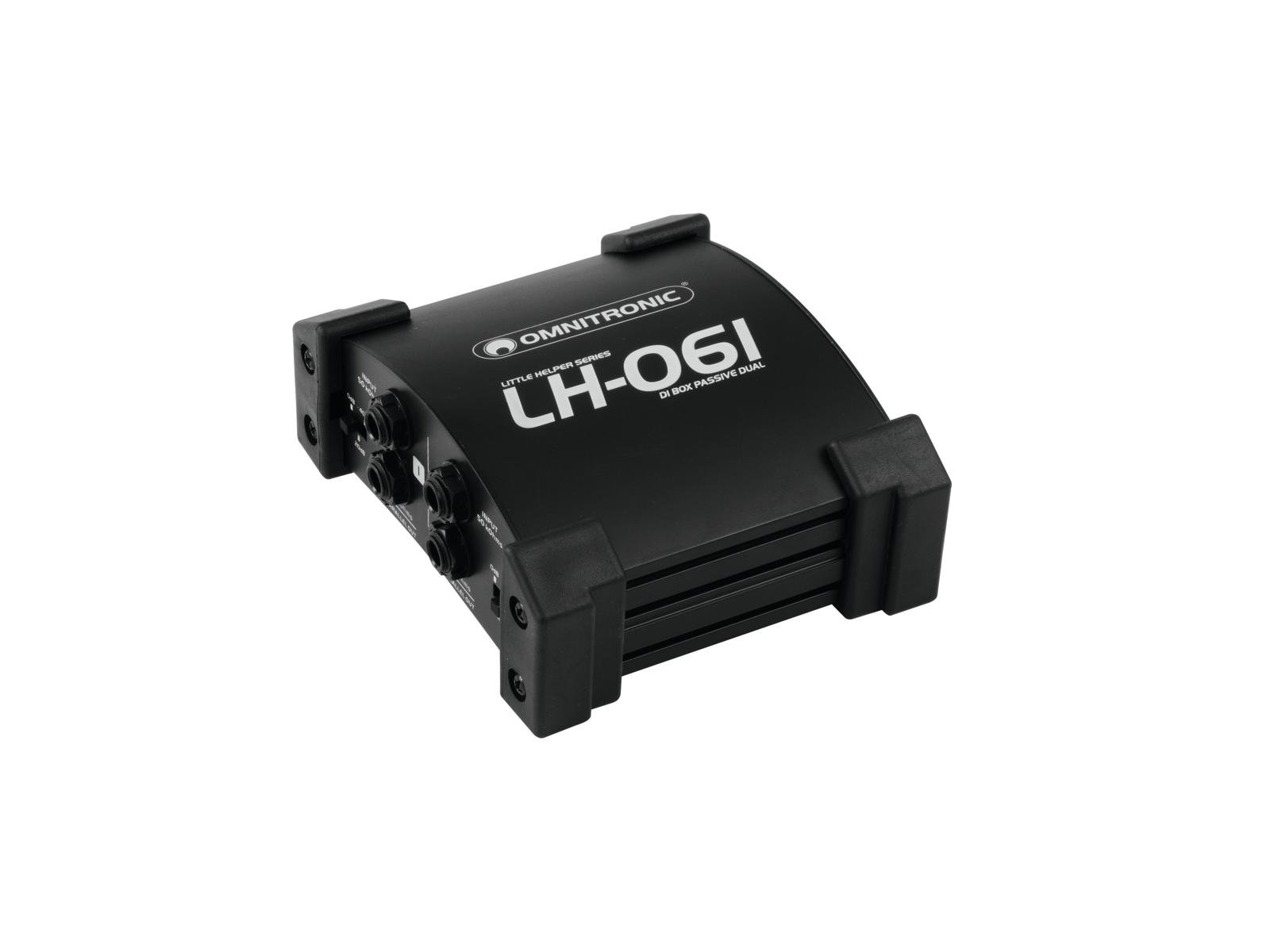

Omnitronic LH-061 PRO Passive Dual DI Box

Passive DI

2 intrări de semnal de înaltă impedanță prin două mufe de 6,3 mm
2 ieșiri XLR cu impedanță scăzută
convertește 2 intrări de linie neechilibrate separate (de ex. CD player, instrumente) în 2 ieșiri XLR echilibrate, pentru conectarea unui mixer
atenuare de intrare comutabilă: 0 dB, -20 dB, -40 dB
cablurile pot fi așezate sub carcasă

44⁷⁸ €

Reserved stock.

Central warehouse: 0

Add to cart

also deliverable via

229 points of loyalty

Shipping 16.00 €

Warranty 24 months

Returns 14 days

request details

Omnitronic LH-061 PRO Passive Dual DI Box Add to cart: 44⁷⁸ €

Passive DI box with 2 channels/splitter, black

2 high-impedance signal inputs via two 6.3 mm jacks
2 low-impedance XLR outputs
Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs for connecting to a mixer
Switchable input attenuation: 0 dB, -20 dB, -40 dB
Cables can be routed under the casing

Package contents

Frequency range:	15 - 30000 Hz
Impedance:	Input: 50 kOhm Output: 600 Ohm
Input attenuation:	0 dB, -20 dB, -40 dB; switchable
Control elements:	Groundlift selector
Connections:	Input: 2 x 6.3 mm jack (mono) mounting version Output: line via 2 x 3-pin XLR Link: 2 x 6.3 mm jack mounting version (mono).
Max. level:	Output: +6 dBu
Dimensions:	Width: 13.3 cm Depth: 11.5 cm Height: 5.4 cm
Weight:	610 g
