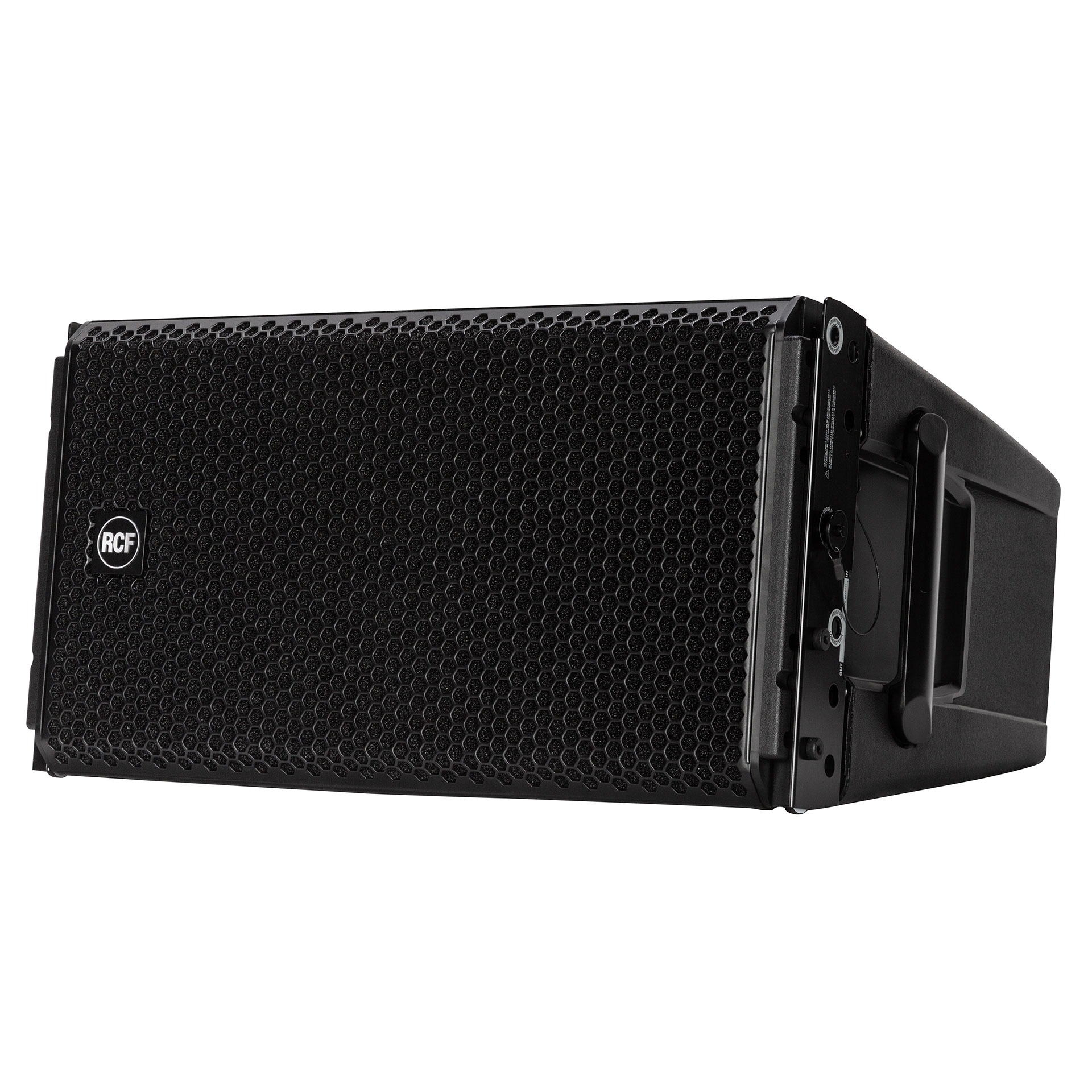

RCF HDL 28-A

Line-array module

compact and powerful bi-amplified system for versatile applications.
frequency response from 50 Hz to 20 kHz with a max SPL of 135 dB.
includes 1.4" titanium driver and dual 8" woofers for optimal sound.
features thermal and RMS protections, plus a soft limiter.
lightweight design at 21 kg with convenient mounting points.

2 993²³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

15245 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

RCF HDL 28-A Add to cart: 2 993²³ €

RCF HDL 28-A - Compact, active, bi-amplified system, suitable for a wide range of applications, both indoors and outdoors, with a focus on vocal intelligibility.

Frequency response: 50 Hz - 20 000 Hz
Max SPL: 135 dB
Coverage: 100° x 15°
1.4" titanium driver with 3.0" voice coil
2 x 8” woofers with 2.5” voice coil
Input connector: XLR, RDNet Ethercon
Output connector: XLR, RDNet Ethercon
Cross-Over Frequency: 750 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Preset, RDNet bypass
Total power: 2200 W PEAK
High frequencies: 600 W PEAK
Low frequencies: 1600 W PEAK
Nominal power: 1100 W RMS
High frequencies: 300 W RMS
Low frequencies: 800 W RMS
Cooling: Convection
Power supply: Powercon IN/OUT
Material: PP (polypropylene composite)
Mounting points: Line array
Handles: 2 on the back
Protection grille: Steel
Height: 294 mm
Width: 569 mm
Depth: 491 mm
Weight: 21 kg

Product code: 13000579

Specifications:

Cabinet type:	satellite
system name:	RCF HDL
