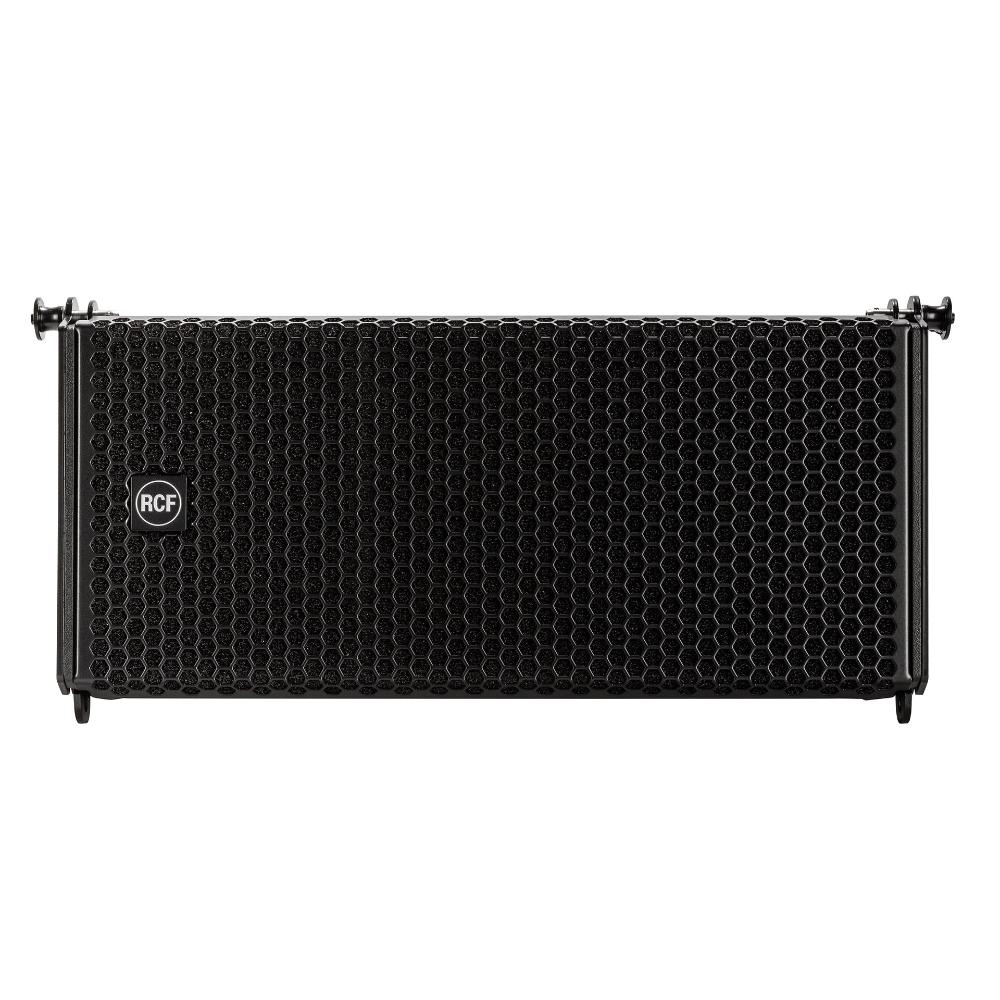

RCF HDL 26-A

RCF HDL 26-A - ultra-compact bi-amplified active system for small and medium events, both indoors and outdoors. Thanks to the advanced design of the transducer and the 2000 W class D amplifier, among the best in its class, it is capable of delivering extended levels and impeccable sound for a wide range of applications, either alone or in RDNet managed line-array configurations.

Features:

• Max SPL 133 dB
• 2000 W dual-channel amplifier
• Exclusive onboard FiRPHASE technology
• 750 Hz crossover for optimal vocal reproduction
• RDNet network management
• 1.5-inch titanium compression driver
• 2 x 6" high-power neodymium woofers
• 4 PATH waveguide

Technical Specifications:

• Frequency response: 55 - 20,000 Hz
• Max SPL at 1 m: 133 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 10°
• Compression driver: 1 x 1.5'' neo, 3.0'' v.c
• Woofer: 2 x 6.0'' neo, 2.0'' v.c
• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: +4 dBu
• Crossover frequency: 750 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Preset, RDNet bypass
• RDNet: Yes
• Total power: 2000 W peak, 1000 W RMS
• High frequencies: 600 W peak, 300 W RMS
• Low frequencies: 1400 W peak, 700 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT
• Cabinet material: Composite PP
• Hardware: Array fittings
• Handles: 2 at the back
• Grille: Steel
• Colour: Black
• Dimensions: 237 x 470 x 377 mm
• Weight: 13.5 kg
• Shipping dimensions: 260 x 550 x 425 mm
• Shipping weight: 14.9 kg
