Audac COM 108

Audio amplifier

class D mixing amplifier with 80W output power.
supports constant voltage systems (100V/70V) and low impedance (4 Ohm).
balanced and unbalanced inputs with various sensitivity options.
includes protection features against short circuits and overheating.
compact design with optional 19" rack mounting.

374¹⁸ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

1907 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Audac COM 108 Add to cart: 374¹⁸ €

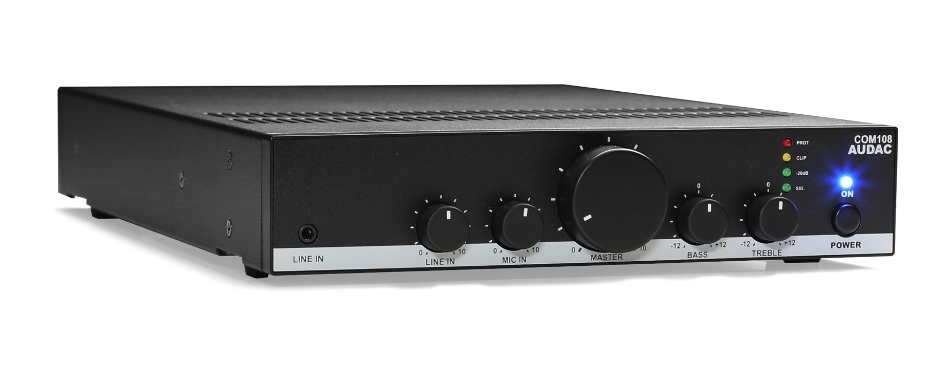

Audac COM 108 - is a Class D mixing amplifier that offers an output power of 80 watts for audio systems with constant voltage (100V and 70V) or with low impedance (4 Ohm).

RMS/AES power at 4 Ω 1 x 80 W
Inputs
- Balanced x1
  - Microphone sensitivity -0 dB ~ +50 dB
  - Euro Block terminal connector with 3 pins (pitch - 3.81 mm)
- Unbalanced stereo x 1
  - RCA / 3.5 mm Jack
  - Sensitivity -4 dB ~ 20 dB
- Frequency response (± 3 dB) 20 Hz - 20 kHz
- Signal / noise > 90 dB
- THD+N (at 1 kHz) < 0.5% (1/2 nominal power)
- Crosstalk (at 1 kHz) > 70 dB
- Class D technology
- Operating 100 ~ 240 V AC / 50 ~ 60 Hz
- The balanced microphone input requires phantom Power 15 V DC
- Outputs - Euro-Block terminal connector with 4 pins (pitch - 5.08 mm)
- Voltage / Impedance 100/ 70 V at 4 Ω
- Amplifier protection
  - DC short circuit
  - Overheating
  - Signal limiting
  - Convection cooling
- Operating temperature 0° ~ 40° @ 95% Humidity
- Dimensions 217.5 x 43.7 x 300 mm
- Weight 3 kg
- Mounting 1/2 19" / 1 HE or on table
- Steel construction
- Colour Black
- Accessories - Optional adapter for 19" rack mounting (not included)
