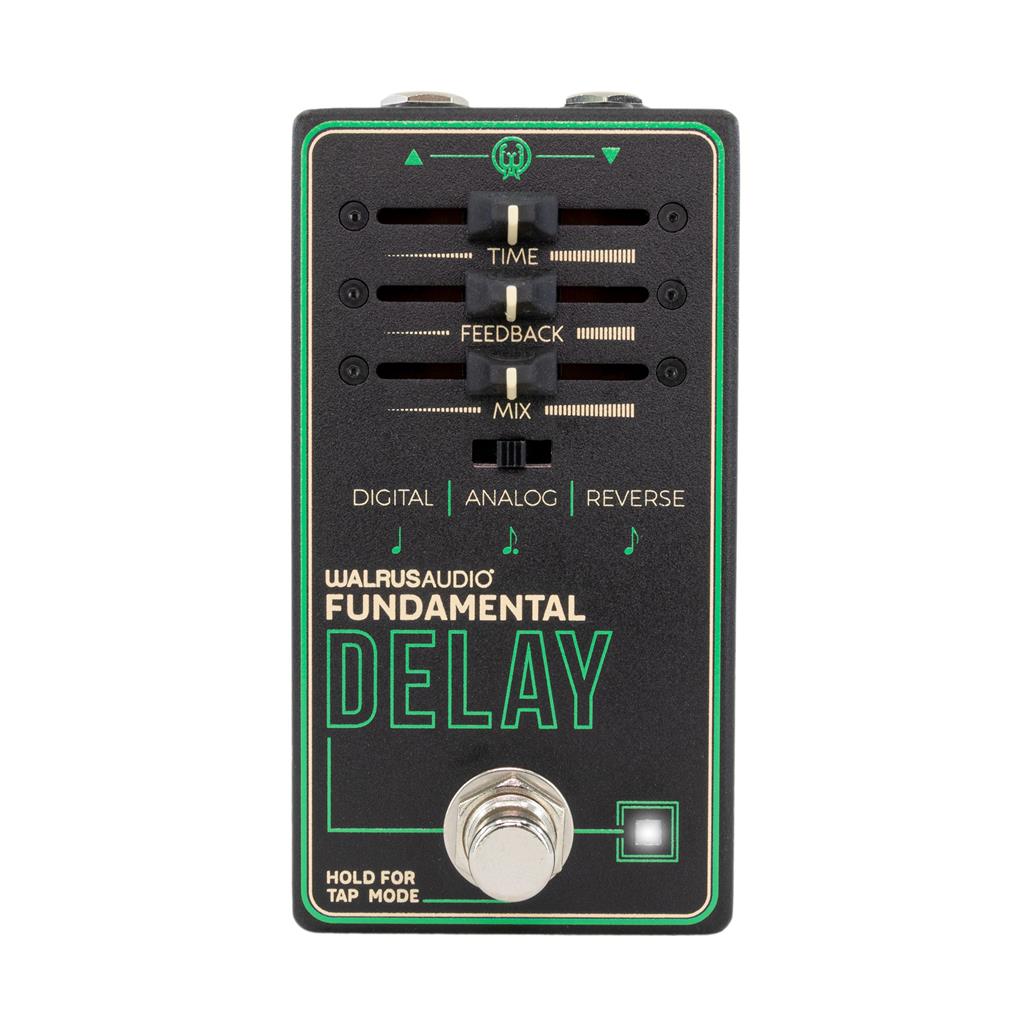

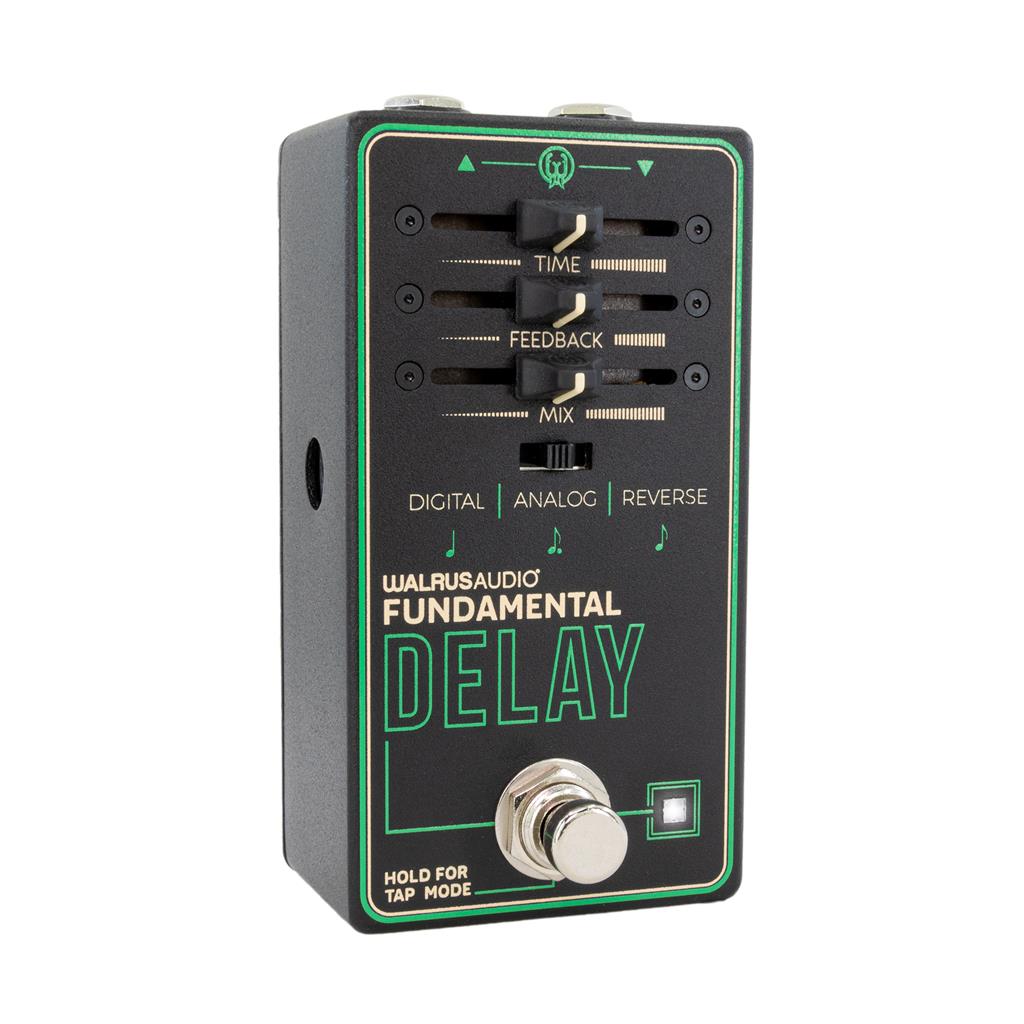

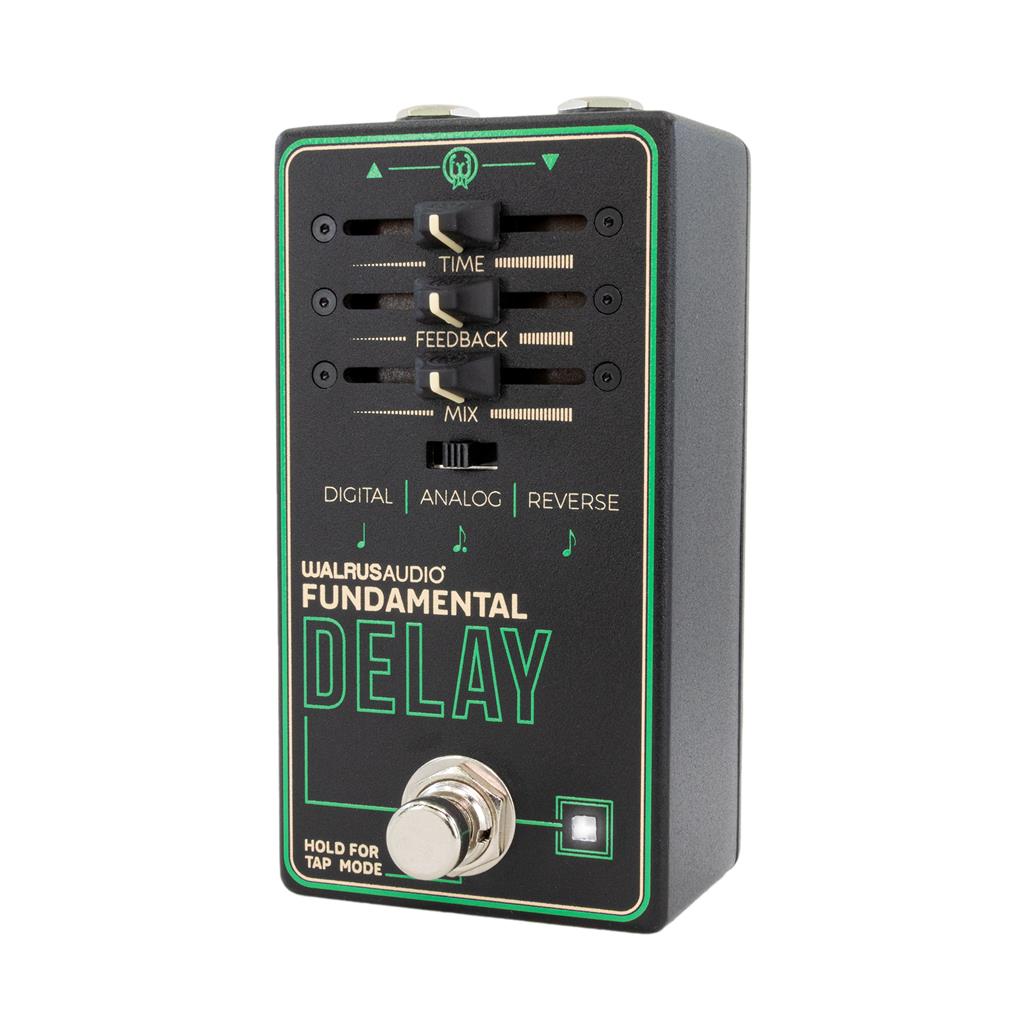

Walrus Audio Fundamental Series Delay

• Digital Delay that provides core sounds of repeated effects
• From clean digital feedback to an analog delay emulation, as well as reversing your trails.
• Parameters: Time, Feedback, Mix
• Change between 3 distinct delay algorithms
• Digital: add a clean rhythmic delay back into your signal, with transparent repeats.
• Analog: add a filtered and slightly distorted delay back into your signal, designed to replicate the characteristics of bucket brigade delay chips.
• Reverse: add reversed trails back into your signal, create gentle melodies, or push into reverse feedback overload.
• Tap Tempo control engageable
• Select division of tap tempo control: quarter, dotted eighth, eighth
• Adjustable trails mode
• Simplified controls to make it easy for newer pedal users to dial in precise and emotional sounds
• Textured black finish with green and off white ink
• Diecast enclousre size: 11.43 x 6.1 x 5.8 cm
• Power requirement: 9V DC 100mA
• The use of an isolated power supply is recommended
• Power Supply not included
• Designed and assembled at Walrus Audio HQ in OKC, USA.

The Fundamental Delay provides you with the core sounds of repeated effects. With three delay algorithms, you can go from clean digital feedback to an analog delay emulation, as well as reversing your trails.

Time slider controls the rate of the delayed repeats.
Feedback slider sets the number of repeats.
Mix controls the mix of the effect and the original clean signal. All the way to the left outputs a fully clean signal, and all the way to the right outputs only the delay repeats.

The slide switch allows you to change between three distinct delay algorithms:

• Digital: add a clean rhythmic delay back into your signal, with transparent repeats.
• Analog: add a filtered and slightly distorted delay back into your signal, designed to replicate the characteristics of bucket brigade delay chips.
• Reverse: add reversed trails back into your signal, create gentle melodies, or push into reverse feedback overload.

Tap Mode: To enter tap mode, hold down the bypass stompswitch until you see the LED flashing. Once it is flashing, tap mode is engaged and the stomp switch will only work as a tap tempo until tap mode is disengaged. While tap mode is engaged, adjusting the program Slide Switch will only change the division of the tap control, and not the delay program. To disengage tap mode, hold down bypass again until you see the LED turn back to solid white. The pedal will remember the tempo you have tapped in until adjusted again by either the time control or another tempo is tapped in.

Trails Modes: The Delay comes with trails mode active by default, to disengage trails mode hold down the bypass stomp switch when applying power to the pedal. Once the LED flashes it indicates that trails mode is turned off. To re-engage trails mode, repeat the process, and wait for the LED to turn dark, indicating that trails mode is back on. With trails mode active, your delay repeats will fade off naturally after turning the pedal off. With trails mode inactive, the decay abruptly cuts off when you turn off the pedal.

For the Fundamental Series, the team at Walrus Audio challenged themselves to design a set of pedals with the tonal integrity that’s required to live on a professional’s pedalboard, but with simplified controls friendly enough for even the newest effect pedal users. Each Fundamental pedal has three sliders for tweaking the sound and a three-way switch for changing pedal modes. The result is a line of pedals that will keep you covered from your first band practice all the way to a sold-out arena. Designed and assembled at Walrus Audio headquarters in Oklahoma City, USA.


***Check our DOWNLOADS section below for more info.***
