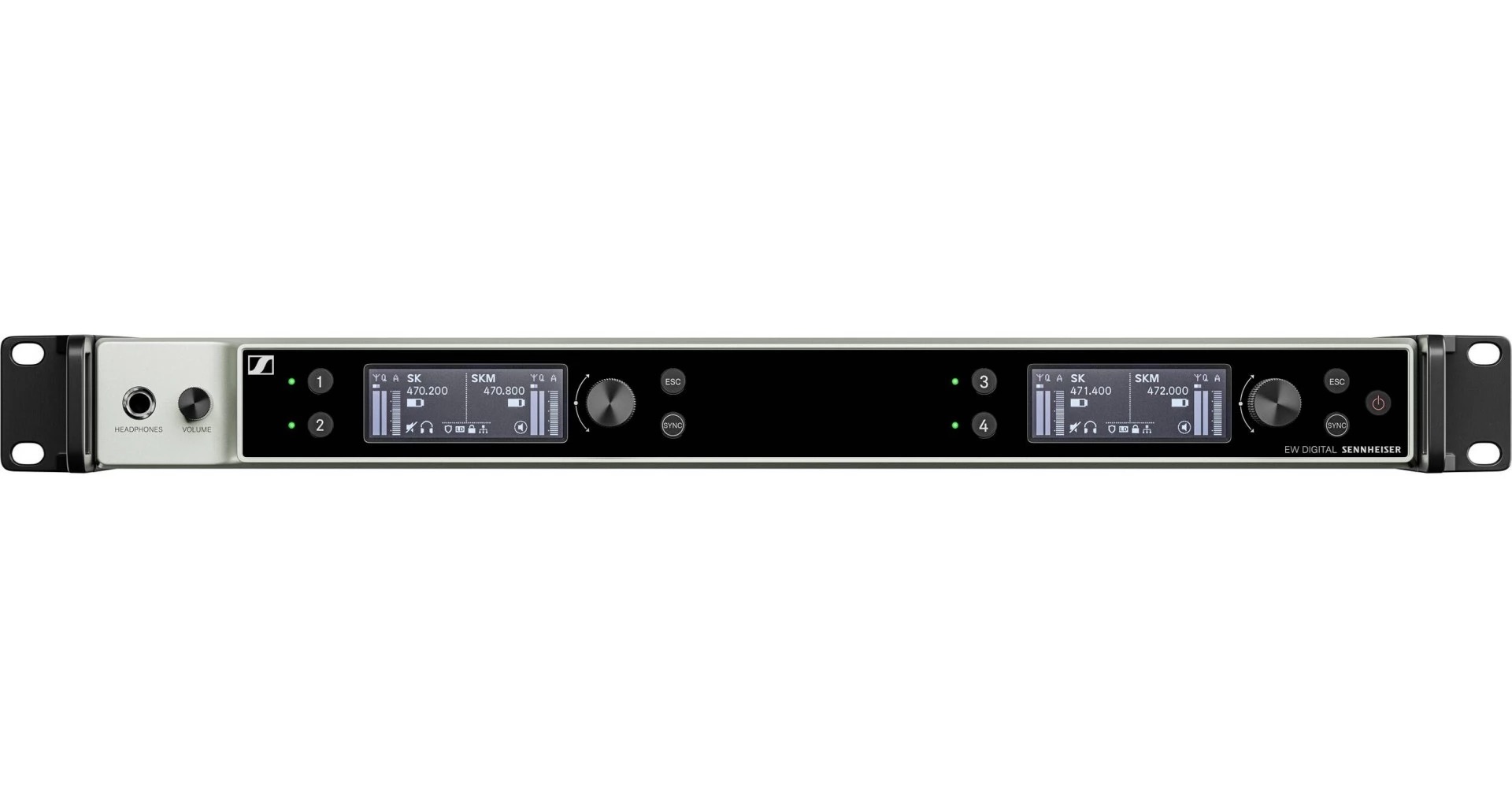

Sennheiser EW-DX EM 4 Dante S1-10 - 19" rack-mounted wireless receiver with 4 channels, equipped with a Dante interface for audio integration over the network. It offers a bandwidth of up to 88 MHz, low-latency transmission of 1.9 ms, and AES 256 encryption for confidentiality.
Allows remote control via the network, compatible with Sennheiser Control Cockpit and Wireless System Manager. With an OLED display, AutoScan, and output for headphones, it is ideal for professional live applications and broadcast.
- 19" rack-mounted wireless receiver
- Channels: 4
- Format: 19" rack, metal housing
- Audio interface: Dante
- Switching bandwidth: up to 88 MHz
- Standard Mode: spacing 600 kHz, up to 146 channels
- Link Density Mode: spacing 300 kHz, up to 293 channels
- Codec: Sennheiser Performance Audio Codec (SePAC)
- Latency: 1.9 ms
- Dynamic range: approx. 134 dB
- Frequency response: 20–20,000 Hz (-3 dB)
- THD: ≤ -60 dB at 1 kHz
- Audio output level: max. 18 dBu
- Headphone output: 2 × 70 mW at 32 Ω
- Network: 4 configurable ports for Control and Dante Prim/Sec
- Ethernet connectivity: IPv4 and IPv6
- Encryption: AES-256
- Control: Sennheiser Control Cockpit, Wireless System Manager, third-party systems, and Smart Assist application via Bluetooth LE
- AutoScan: automatic scanning and frequency allocation
- Indicator: LQI for connection quality
- Integrated antenna splitter with power for antennas and loop-through output
- Cascading connection: up to 16 channels / 4 × EW-DX EM 4
- Display: OLED
- Controls: navigation rotary and buttons
- Headphone output: selectable, with volume adjustment on the front panel
- Power supply: 90–265 V AC, 47–63 Hz
- Consumption: max. 37 W
- Bluetooth: 2402–2480 MHz, max. 10 mW EIRP
- Dimensions: 483 × 44 × 373 mm
- Weight: approx. 4.5 kg
- Contents: receiver, 2 antennas, 2 BNC cables for daisy-chain and EU/UK/US power adapters
