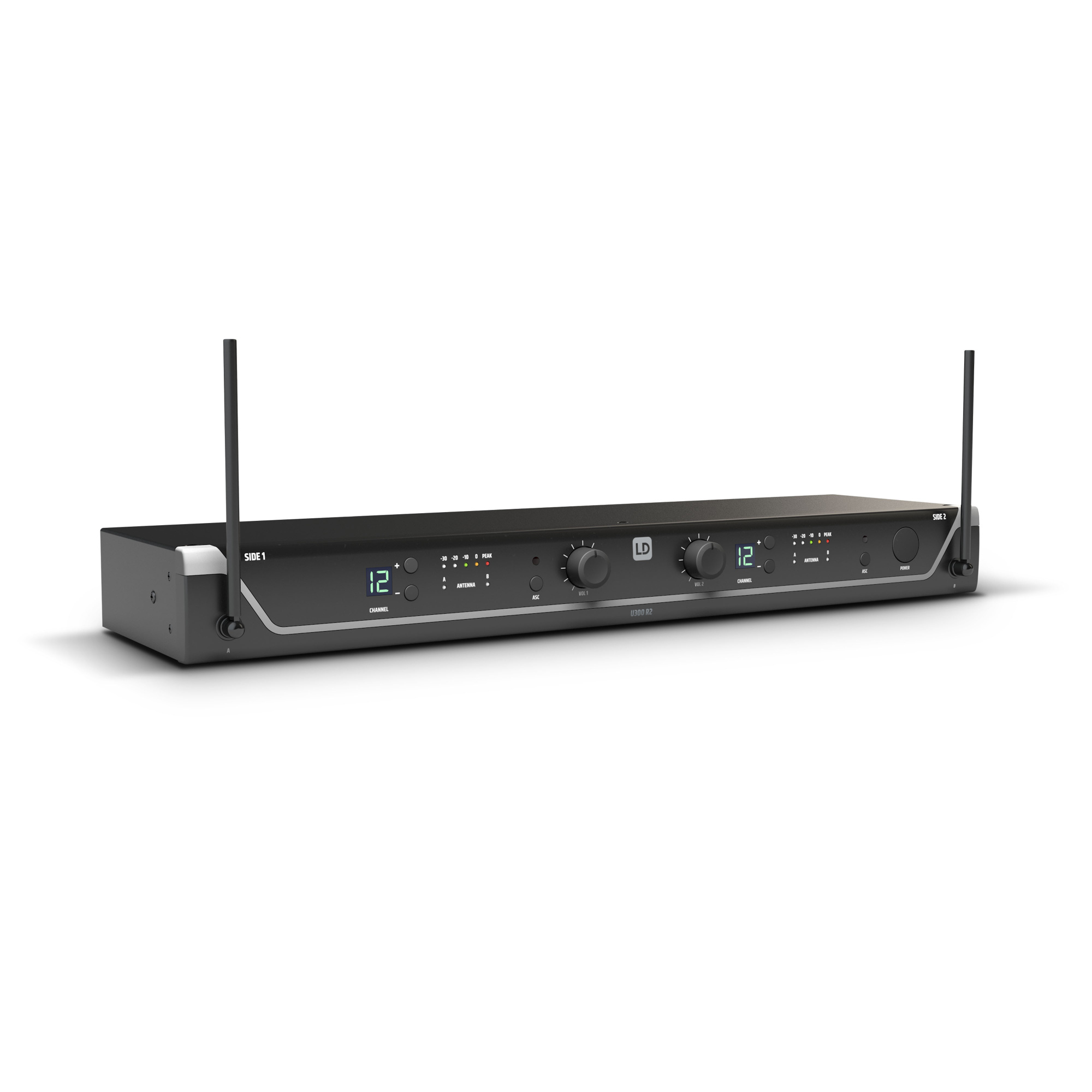

LD Systems U306 R2 Dual Receiver

LD Systems U306 R2 Dual Receiver - The UHF dual receiver from the U300 R2 series with 12 channels operates with FM technology in the frequency range of 655 - 679 MHz and has a frequency response of 35 Hz to 16 kHz. Convenient one-touch infrared synchronization ensures a quick and trouble-free wireless connection with the portable transmitter microphone or the backpack from the same series. A pilot tone squelch ensures uninterrupted operation. The U306 R2 dual receiver features a sleek metal housing, a bright LCD channel display, channel selection buttons, and LEDs that indicate audio signal strength and active antenna. Two balanced XLR outputs and two unbalanced 6.35 mm jacks are located on the rear panel, which can be adjusted to the instrument level for direct connection to guitar and bass amplifiers. A power supply adapter is included.

• Modulation type: FM
• Transmission frequency range: 655 - 679 MHz
• Channels: 12
• Groups: 1
• Antenna inputs: 2 x fixed
• Frequency response: 35 - 16,000 Hz
• Noise reduction: Squelch
• Transmission optimization: Pilot tone
• Total harmonic distortion (THD): < 0.3 %
• Signal-to-noise ratio: 104 dB
• Audio output, balanced: 3 x XLR
• Audio output, unbalanced: 6.3 mm jack, switchable unbalanced output level (Line/Instrument)
• Audio mixing output, balanced: XLR
• Audio mixing output, unbalanced: 6.3 mm jack
• Max. output level: +10 dBu (Bal), +7 dBV (Unbal, Line), +2.5 dBV (Unbal, Instr) dBu
• Controls: 2 x Volume, Channel down, Channel up, Line/Instrument level, Power On/Off
• Indicators: 5 LED VU meter, A/B antenna, LC display
• Operating voltage: 12 V DC, 500 mA
• Dimensions:
  • Width: 410 mm
  • Height: 43 mm
  • Depth: 120 mm
• Weight: 1.265 kg
• Included accessories: 2 x AA batteries, power supply
• Other features: IR frequency synchronization, pilot tone
