LD Systems U308 BPH2

Name: LD Systems U308 BPH2
Brand: LD Systems
SKU: LDU308BPH2
Price: 411.61 EUR
Availability: BackOrder

Dual wireless system

wireless set with 2 belt transmitters and 2 headset microphones.
uHF Diversity system with 12 selectable frequencies.
infrared ASC frequency synchronization.
operating range of 100m in open field.
audio frequency range: 55 Hz - 16 kHz.

Variants:

411⁶¹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

2054 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

LD Systems U308 BPH2 Add to cart: 411⁶¹ €

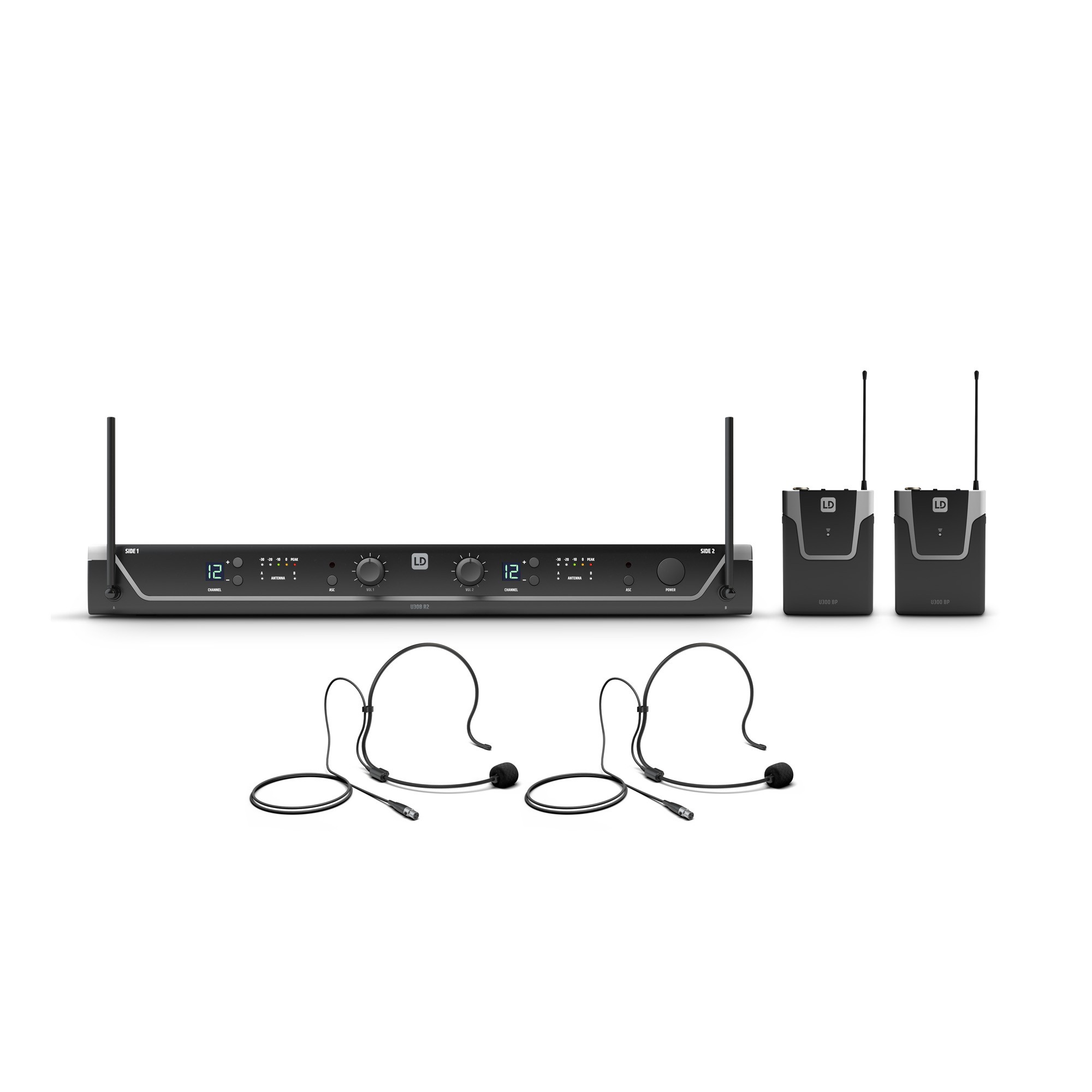

U308 BPH2 - Wireless set with 2 belt transmitters and 2 headset microphones, UHF Diversity system with FM technology and 12 channels, recommended for semi-professional applications:

UHF duplex gap: 823 MHz - 832 MHz + 863 - 865 MHz
operating range of 100m in open field
allows the use of 6 systems simultaneously on the frequency band
transmitter/receiver synchronization via infrared, ASC
U308R receiver:
- metal housing
- audio frequency range (+/-3 dB): 55 Hz - 16 kHz
- 12 preset UHF frequencies
- squelch, pilot tone
U308 BP transmitter
- RF power of 10 mW,
- powered by 2 x AA batteries,
- operating time of approximately 10 hours
- controls: switchable gain, on/off
WS100MH lavalier microphone:
- condenser type
- cardioid pattern
- impedance: 680 Ohms
- frequency range: 20 - 20,000 Hz
- mini XLR connector with 3 pins

Product code: LDU308BPH2

Unit of sale: set

Specifications:

Capsule type:	condenser
Polar pattern:	cardioid
Communication frequency, global classification (MHz):	800 - 900
System type:	Analog
Integrated antennas in receiver housing:	No
