Roland Bridge Cast One

Roland BRIDGE CAST ONE – USB audio mixer/interface 5x4 (Dual-Bus) for streaming, gaming, content creators, and vloggers.

• 24-bit / 96 kHz conversion
• Compatibility: Windows (10/11), MacOS 12 or later
• Easy integration of up to 3 audio/video streaming sources
• Dual-Bus architecture on 2 paths:
  • 1 x Stream Mix
  • 1 x Personal Mix
• Controllable via the Bridge CAST app
• Integrated 3-channel mixer (1 for microphone & 2 streaming channels)
• Features: educational, compressor, equaliser, de-esser, reverb, and high-pass filter for the microphone channel
• Effects:
  • voice effects from the Roland VT series, de-esser & compressor for the chat channel
  • EQ & Limiter for the gaming channel
  • Delay for streaming output with sync
• Integrated 32-bit DSP
• Ability to integrate background music & audio effects from Roland Cloud
• Illuminated push encoder
• MUTE button for mixer channels
• Selection button for Voice Transformer & game effects
• Volume control for headphone output

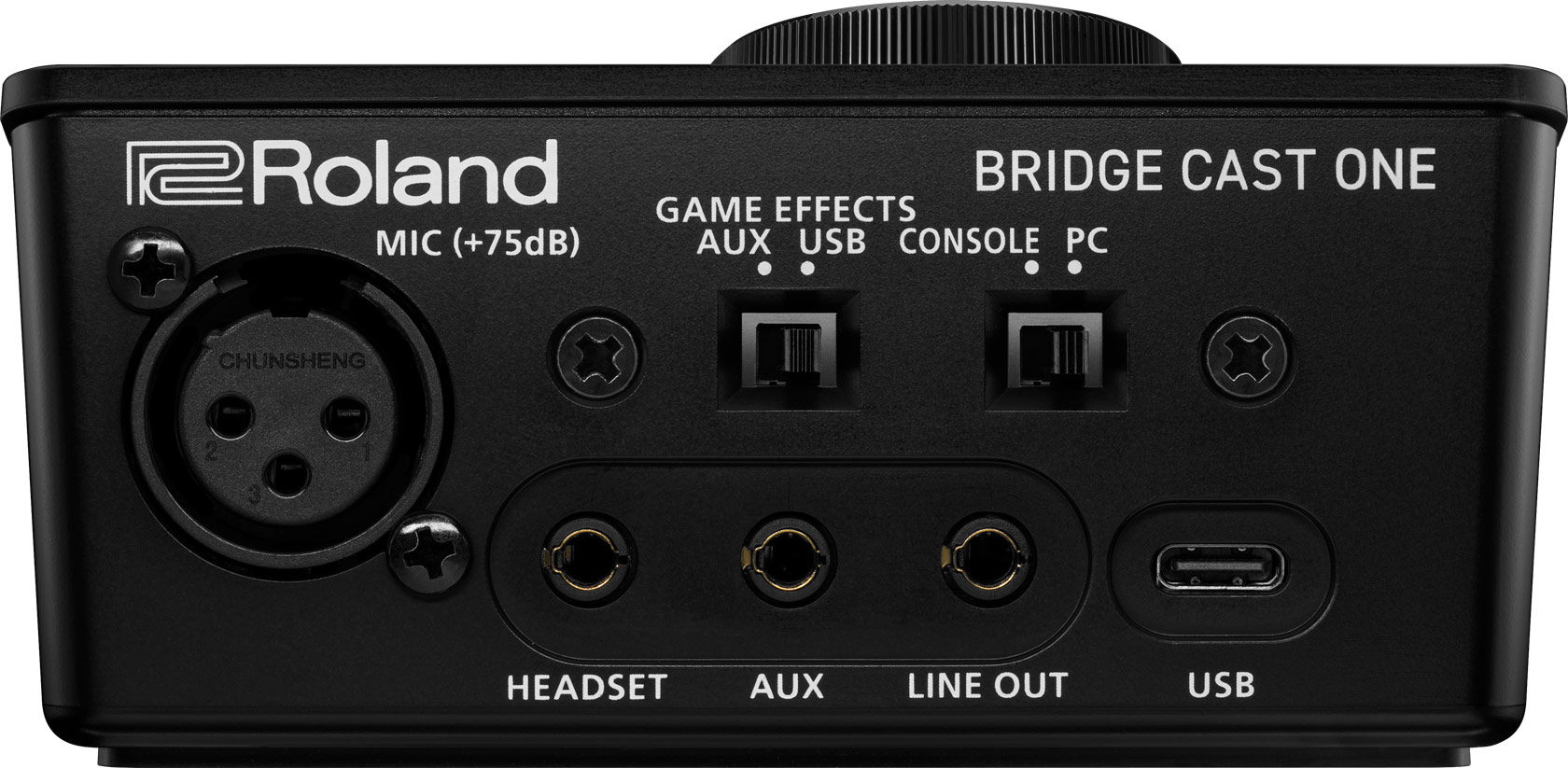

• Connectors:
  • Microphone input XLR / Phantom power +48 V / up to +75 dB gain
  • USB-C port for power / for connecting to PC, Mac & consoles (compatible with Sony PlayStation 5 & Nintendo Switch)
  • Line output: 3.5 mm stereo jack
  • Headphone output: 3.5 mm stereo jack, CTIA
  • AUX input: 3.5 mm jack
• Includes: user manual & USB-C cable
• Dimensions: 111 x 109 x 56 mm
• Weight: 275 g
