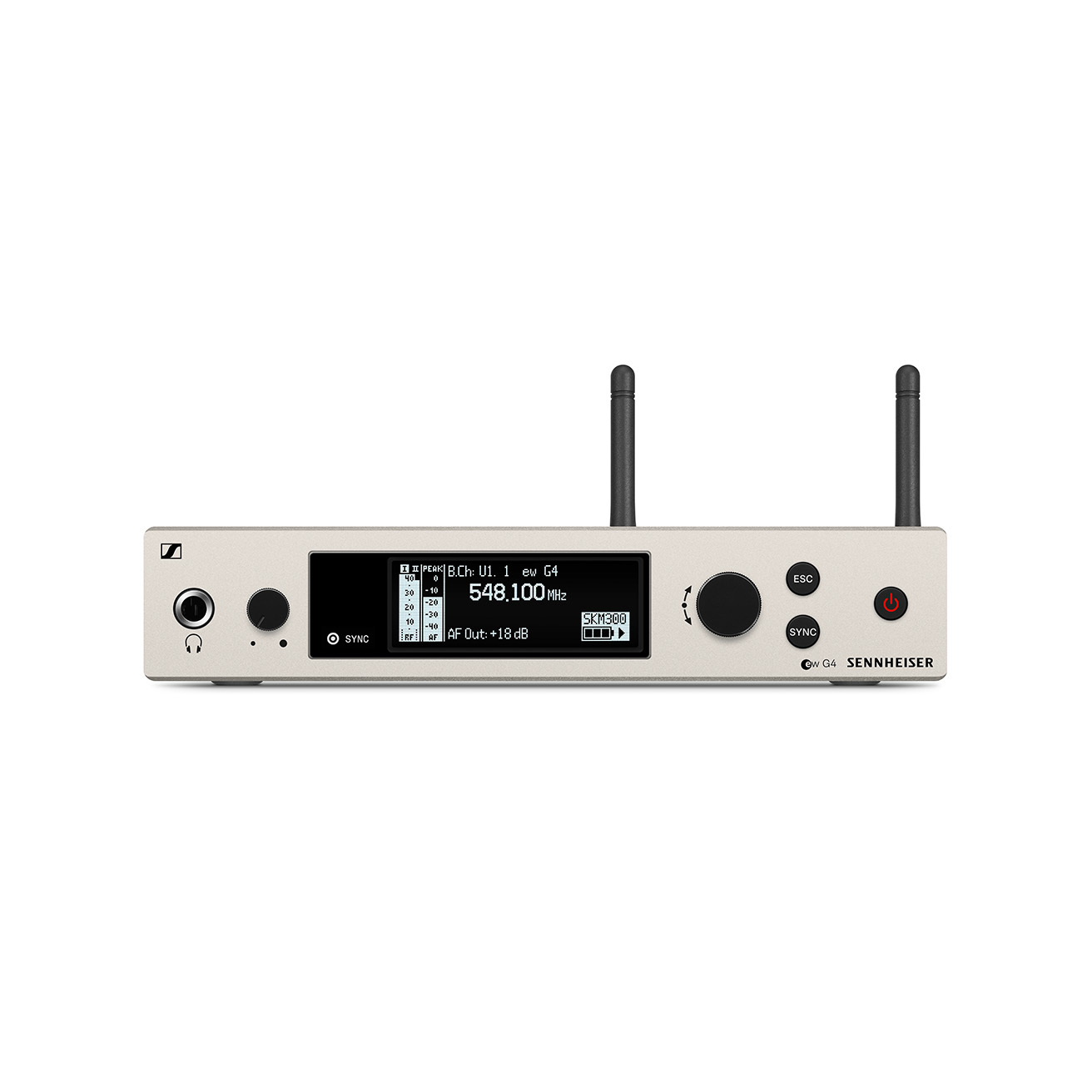

Sennheiser EM 300-500 G4, rack-mountable wireless receiver in a robust metal housing, OLED display, for EW 300-500 G4 wireless systems.
Ethernet data port, RJ45: allows integration of receivers into a network and automatic scanning, monitoring for the entire system via Sennheiser Control Cockpit and WSM Software
true diversity system
automatic scanning of free frequencies
infrared synchronization with G4 series transmitters
Soundcheck mode allows checking audio and RF signals during installation
UHF bandwidth of 72 MHz with 3520 selectable frequencies in 25 kHz steps
20 frequency banks with 32 presets each plus 6 banks with 32 programmable channels
transmission range of up to 100 meters in open field
high-fidelity HDX compander
pilot tone, squelch
Auto-Lock function for locking settings
integrated equalizer with 4 presets
Flat
Low Cut (-3 dB at 180 Hz)
Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
High Boost (+6 dB at 10 kHz)
UHF band Bw: 626 - 698 MHz (other bands available on special order)
