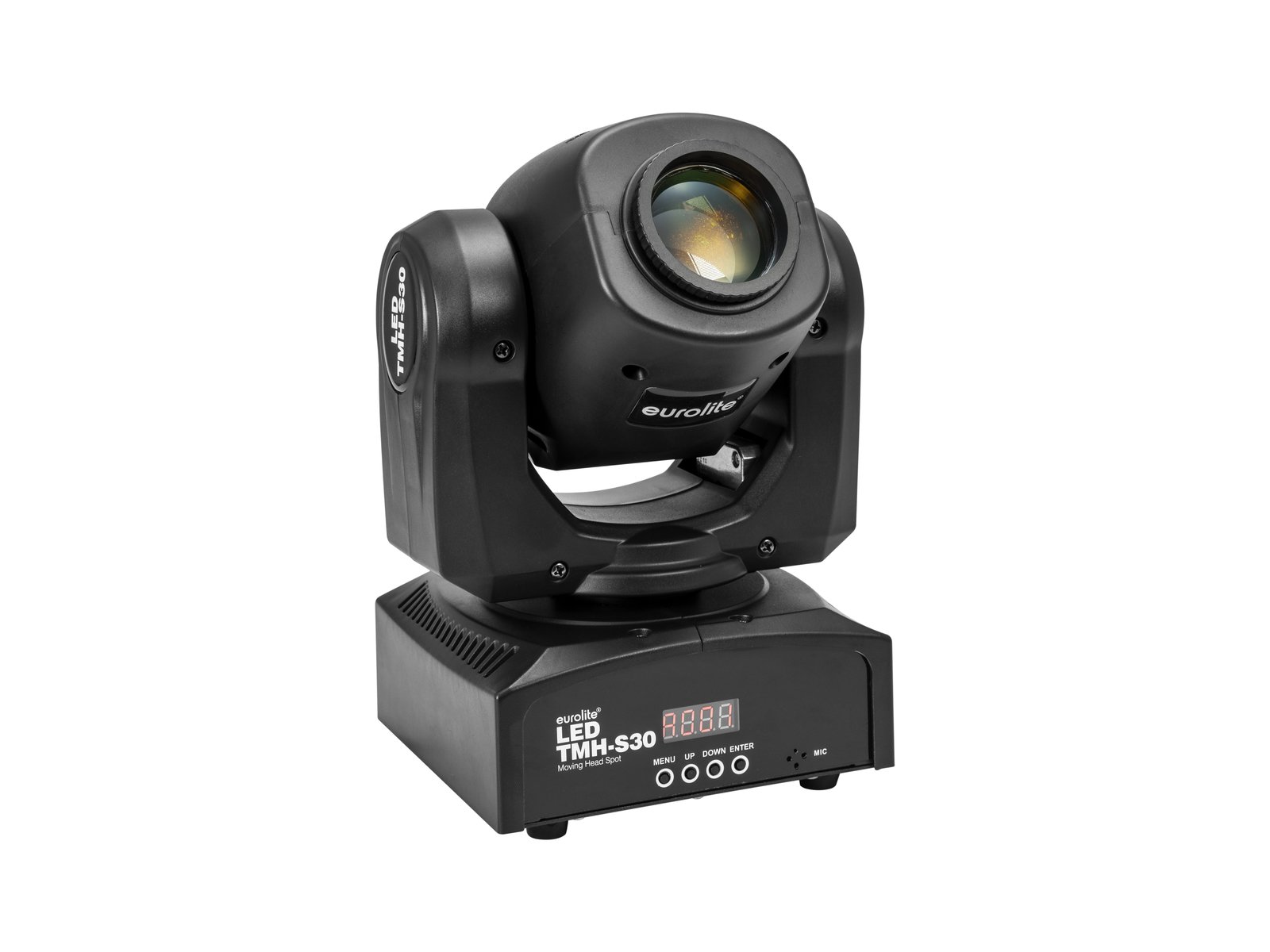

Eurolite LED TMH-S30 Spot

Eurolite LED TMH-S30 Spot - Compact spot with a moving head featuring a 30 W LED, gobo, and colour wheel.

Features:

• 540° PAN and 180° TILT positioning
• Precise positioning with 16-bit PAN/TILT movement resolution
• Adjustable speed strobe effect
• Electronic dimmer (0-100%)
• 1 powerful 30 W COB (chip-on-board) cool white LED (CW)
• Colour wheel with 7 dichroic filters plus open
• Rainbow effect with adjustable speed in both directions
• Gobo wheel with rotating gobo, 7 gobos and open
• Shake effect
• Interchangeable gobos
• Gobo slot system for tool-free gobo exchange
• Integrated show programs
• Operable in 10; 12 CH mode
• The device is cooled by a cooling fan
• Standalone control; DMX; Sound to light via microphone; Master/slave function; CRMX by LumenRadio via USB (optional); W-DMX wireless solution via USB (optional); QuickDMX via USB (optional)
• Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light captain
• Without flickering
• Effect: Single beam; Strobe effect
• With a beam angle of 8°
• LED display with 4 digits and 7 segments
• Package contents:

  • 1 x moving light
  • 1 x user manual
  • 1 x power cable
  • 1 x Omega bracket
  • 1 x safety eye

Technical Specifications:

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 45 W
• IP rating: IP20
• Power connection: mains input via P-Con (blue), power cable mounting version with safety plug (included)
• Fuse: T 1 A replaceable fuse
• Type of lamp: LED lamp
• LED: 1 x 30 W COB (chip-on-board) cool white (CW)
• Colour temperature: 8000K
• Max. TILT movement: Precise positioning (16-bit resolution) 170°
• Max. PAN movement: Precise positioning (16-bit resolution) 540°
• Equipment: Colour wheel; Manual focus; gobo wheel with rotating gobo
• Colour generation: colour wheel with 7 dichroic filters plus open
• Gobo: gobo wheel with rotating gobo, 7 gobos and open
• Outer diameter 14 mm
• Image diameter 10 mm
• Shake effect
• Interchangeable gobos
• Gobo slot system for tool-free gobo exchange
• DMX channels: 10; 12
• DMX input: XLR (M) mounting version with 3 pins
• DMX output: XLR (F) mounting version with 3 pins
• Cooling: cooling fan
• Control: standalone; DMX; Sound to light via microphone; Master/slave function; Light´J; LED PC-Control 512; EASY SHOW 1; CRMX by LumenRadio via USB (optional); W-DMX wireless solution via USB (optional); QuickDMX via USB (optional); Light captain
• Beam angle: 8°
• Beam angle (1/2 peak): 8°
• Illuminance in lux (lx): cool white (CW) 1m: 14450 lx, 3m: 1574 lx, 6m: 377 lx
• Housing colour: Black
• Display type: LED display with 4 digits and 7 segments
• Dimensions:
  • Width: 17.0 cm
  • Depth: 15.0 cm
  • Height: 24.0 cm
• Weight: 3.03 kg
• Noise classification: Class 2 (light noise)
• Legal specifications

  • Special product: Not designed for lighting a domestic room
  • Intended use: Display lighting with effect
