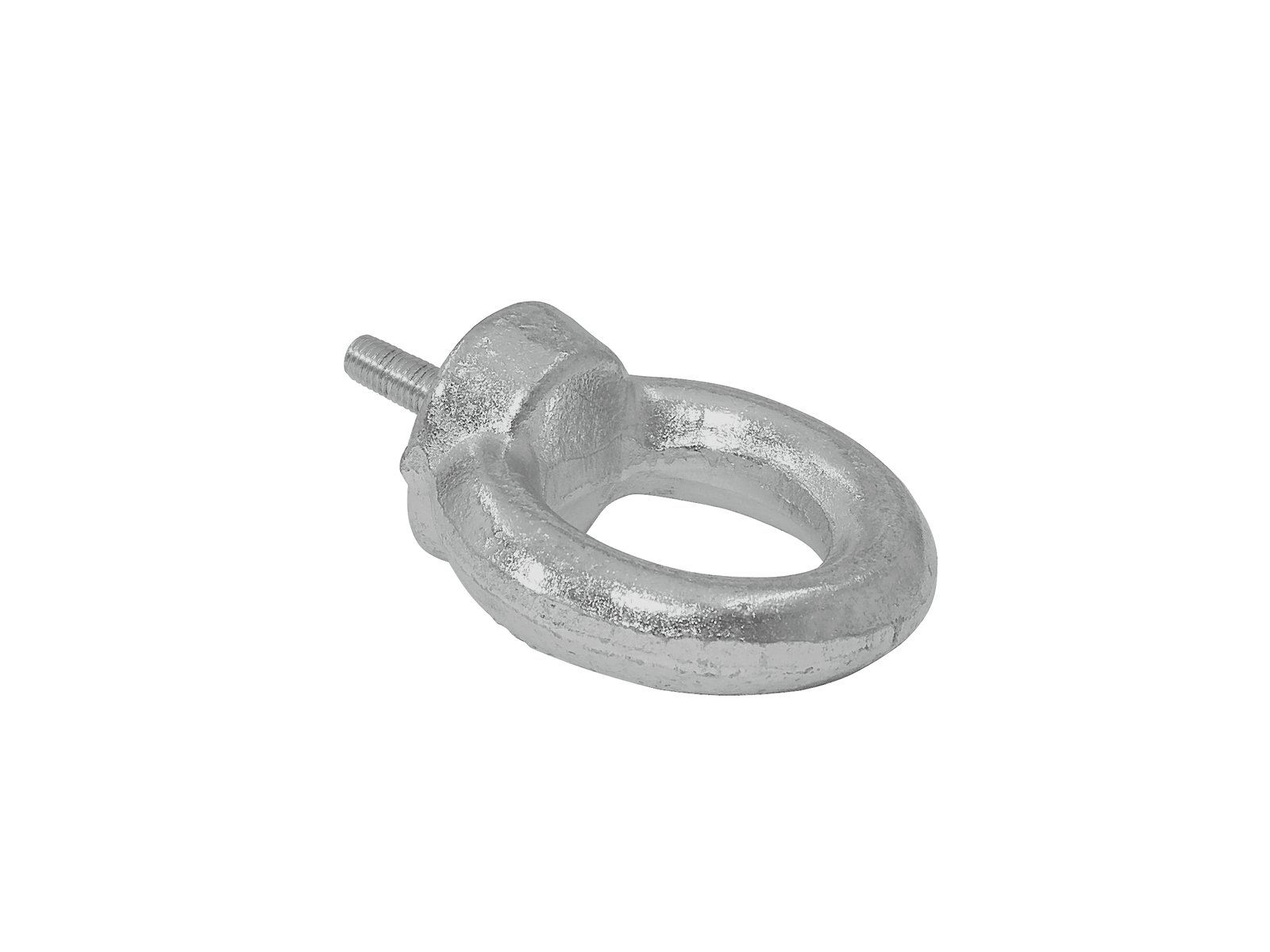

Eye Bolt M6


Stage accessory

  • for holding, carrying, suspending and securing
  • can be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinet
  • warning: the given working load limit (WLL) of this product is valid for holding and carrying loads with lifting gear. The WLL does not describe the maximum load for overhead rigging!
  • m6 thread
Variante:
Eye Bolt M10
Eye Bolt M10
Ring Nut M20 DIN 582 C15
Ring Nut M20 DIN 582 C15
316
Currently unavailable. Request details
Central warehouse: 0
Add to cart
also deliverable via  Deliverable via parcel locker
16 points of loyalty
Shipping 15.40 €
Returns 14 days

Safety eyelet

  • For holding, carrying, suspending and securing
  • Can be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinet
  • Warning: the given working load limit (WLL) of this product is valid for holding and carrying loads with lifting gear. The WLL does not describe the maximum load for overhead rigging!
  • M6 thread


Maximum load BGV C1 (8-fold):37,5 kg
Max. load WLL (4-fold):75 kg
Inside diameter:Ø 1,9 cm
Outside diameter:Ø 3,6 cm
Thread:M6 thread x 13 mm
Dimensions:Length: 4,9 cm
Width: 3,6 cm
Height: 2,1 cm
Weight:50 g

Product code: 30001164

Unit of sale: piece
