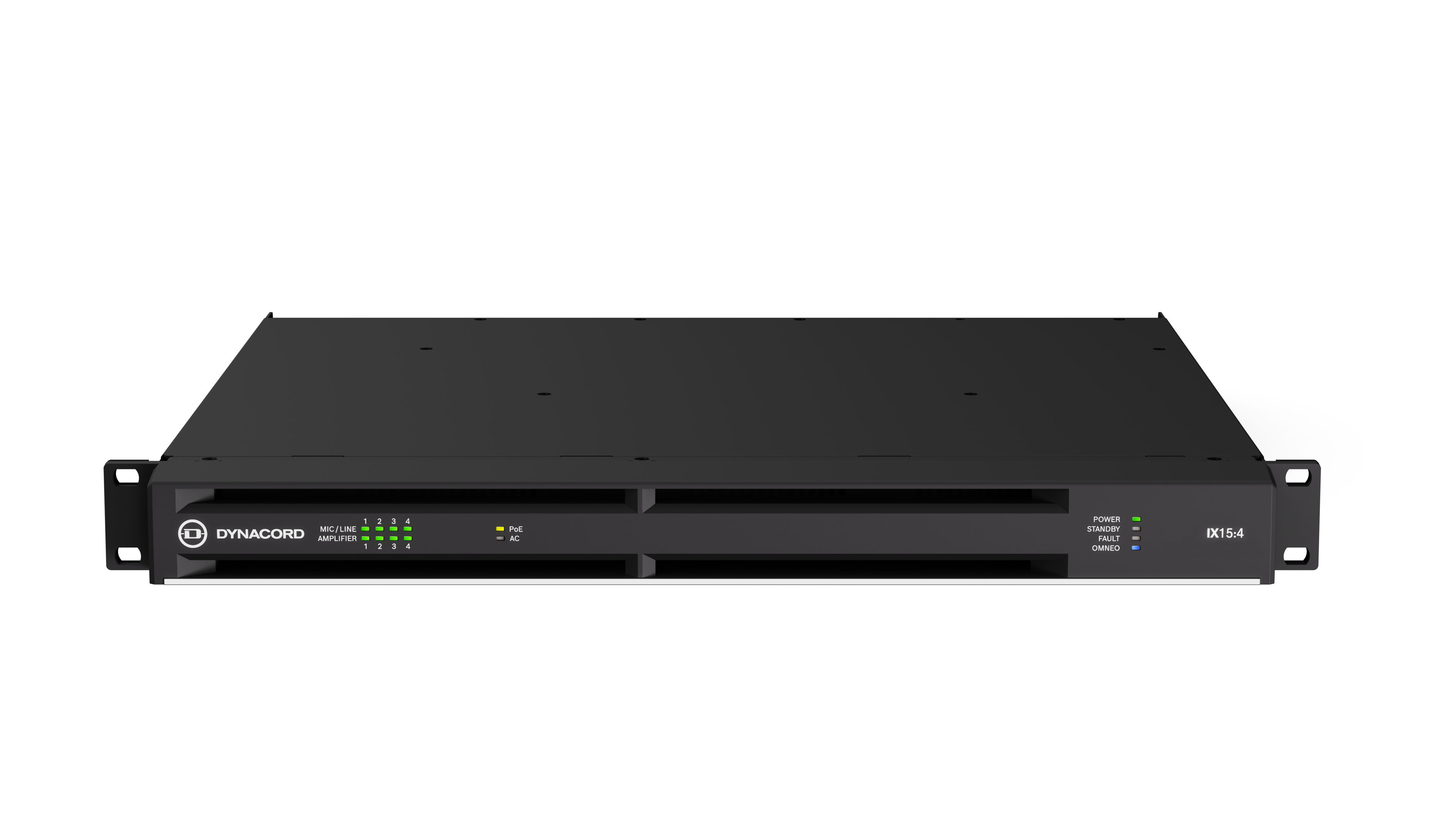

Dynacord IX15:4 - Network DSP amplifier with 4 channels and a total power of 1.5 kW, ideal for a wide range of applications, from sports venues to places of worship, performance halls, and hospitality. Thanks to powerTANK technology, it can handle both high (Hi-Z) and low (Lo-Z) impedance loads, providing remarkable operational flexibility.
Features:
- Network DSP Amplifier with 4 Channels: Total power of 1.5 kW.
- powerTANK Technology: Maximum flexibility to drive Hi-Z or Lo-Z loads.
- Dante Connectivity & Control: Equipped with 8 inputs and 8 Dante outputs, plus remote control via OCA/AES70. Includes 4 mic/line inputs that can be used as Dante input points.
- Powerful DSP at 96 kHz: Equipped with a complete 12x12 matrix mixer, EQs, dynamics, Dynacord effects (FX), and FIR-Drive capability. All 12 inputs have pilot tone detection, and outputs allow for pilot tone addition up to 30 kHz.
- ghostPOWER via PoE: Maintains the entire DSP, Dante network, and active mic/line inputs even without main power.
- ecoRAIL Technology: High energy efficiency optimised for lower operating costs.
- MXE Style TaskEngine: Enables system automation, scheduling, control, and integration with third-party devices.
- Fully compatible with Dynacord SONICUE Sound System software and can be used as a SONICUE control server (for WPN1 panels, TPC-1, iOS and Windows devices)
Specifications:
- Network DSP Amplifier with 4 Channels
- Rated Power: 1500 W
- Number of Amplification Channels: 4
- Maximum Power per Channel at 4 Ω: 1000 W
- Maximum Output Voltage (Hi-Z / 8 Ω): 145 V
- DSP & Audio:
- Internal Conversion Rate: 96 kHz
- Latency (analog input → speaker output): 0.77 ms
- Frequency Response: 20 Hz – 20 kHz (±1 dB)
- THD+N (at 1 kHz): < 0.1 %
- Total Number of Inputs: 4
- Phantom Power: +48 V, switchable
- Maximum Input Level: +18 dBu
- Network Connectivity (Dante)
- Audio over Network (Inputs × Outputs): 8 × 8
- Network Speed: 1000base-T / 100base-TX: Integrated switch
- Backup Power: ghostPOWER (1 × PoE, IEEE 802.3af)
- Power Consumption (1/8 of maximum power):
- Maximum: 300 W
- Eco Mode: 25 W
- Power Supply Voltage: 100–240 V AC, 50–60 Hz
- Dimensions (W × H × D): 483 mm × 44.1 mm × 447 mm (1U)
- Weight: 7.45 kg
