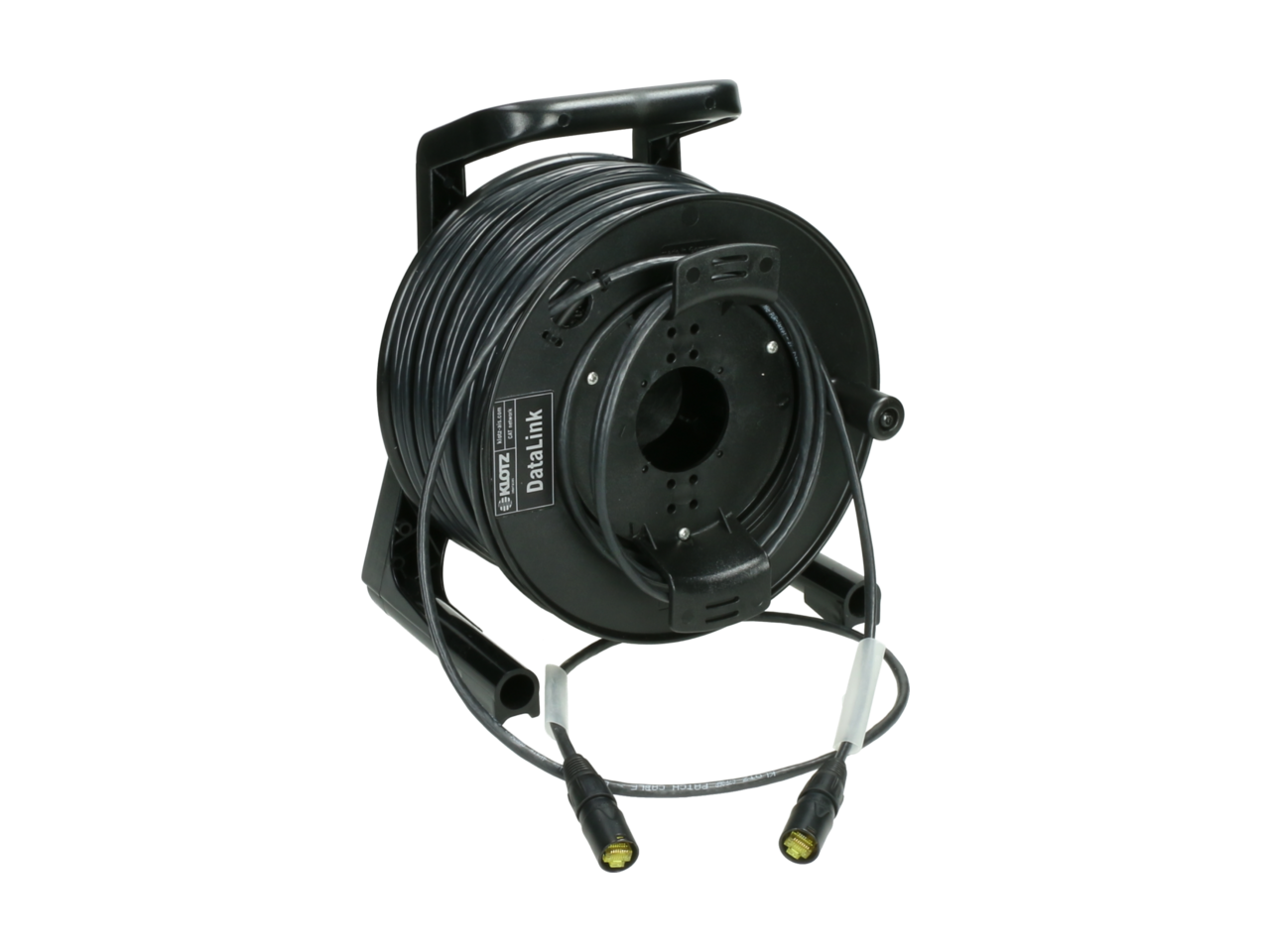

Klotz flexible professional patch cable with PVC jacket on cable drumCAT7 (S/FTP) / etherCON - etherCON - 30 m

• flexible data cable
• frequency range up to 600 MHz
• use in class D, E, EA and F applications like 10Base-T, 100Base-T, 1000Base-T, 10GBase-T, token ring, FDDI, ISDN, ATM, audio networks like Ethersound™ and DMX lighting controls
• for a wide range of applications as device connection, patch or link cable
• with CAT6a RJ45 connectors
• with transparent heat shrink for free labeling

The CP6 is a flexible and robust patch cable, cold flexible up to -40°C, chemical resistant and in the PUR version also extremely abrasion resistant. It is suitable for the transmission of analog and digital signals in the frequency range up to 600 MHz. The cable material is our proven C7P06, which meets the requirements of category 7 according to ISO/IEC 61156-6. We use high-quality CAT6A connectors from Hirose, also in combination with the Neutrik etherCON housing. The assembled cables are available in lengths up to 50 m for bandwidths up to 10 Gbit/s. A top quality patch cable from KLOTZ, for use in Class D, E, EA and F applications such as 10Base-T, 100Base-T, 1000Base-T, 10GBase-T,Token Ring, FDDI, ISDN, ATM, audio networks such as Ethersound™ and DMX lighting controls.

cable

cable typ: C7PS/F06 [P], Ø 6.3 mm, S/FTP, AWG 26/7, 600 MHz

max. data transmission rate: 10 Gbit/s

connectors

connector 1: etherCON M

connector 2: etherCON M

Caracteristici

connectors	etherCON - etherCON
shell/sleeve	black
cable color	black
cable jacket	PVC
cable drum	GT235
heat shrink	2 x transparent
length	30 m
