CKS KSM-1202


Paging Microphone

  • remote microphone with 2 zones for the paging system.
  • cost-effective paging solution with the PAZ series amplifier.
  • connects up to 8 remote microphone units per amplifier.
  • zone selection button and status indicators.
  • operating power consumption of 3W.
CKS
19918
Currently unavailable. Request details
Central warehouse: 0
Add to cart
also deliverable via  Deliverable via parcel locker
991 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

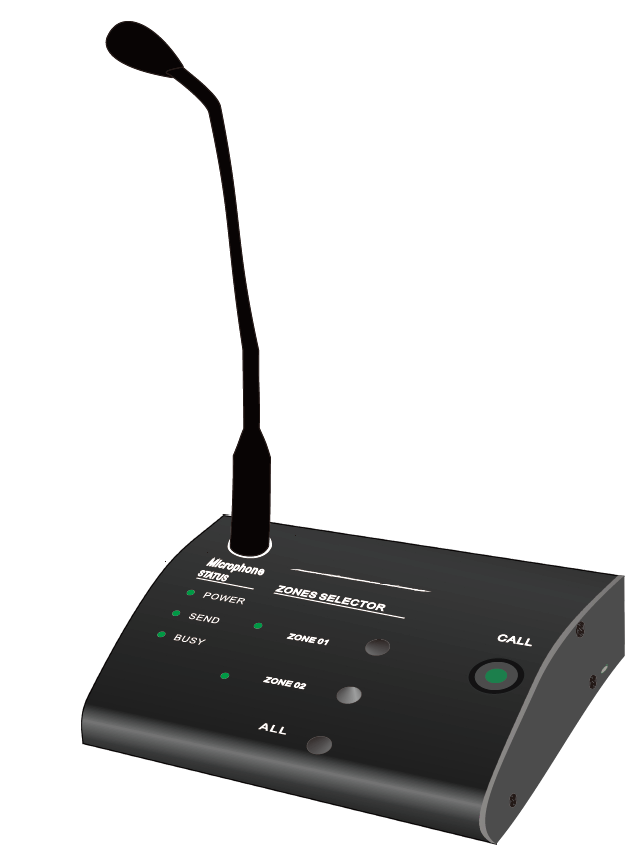

CKS KSM-1202 is a remote paging microphone that works exclusively with the PAZ series amplifier, providing paging across 2 zones and a communication distance of up to 300 metres via CAT6 cable. Each amplifier can connect up to 8 remote paging microphone units, which can be preset with different priorities. The remote paging microphone is powered directly by the amplifier.

  • Remote microphone with 2 zones for the paging system.
  • Cost-effective paging solution with the PAZ series amplifier.
  • Each amplifier's capacity to connect 8 remote microphone units.

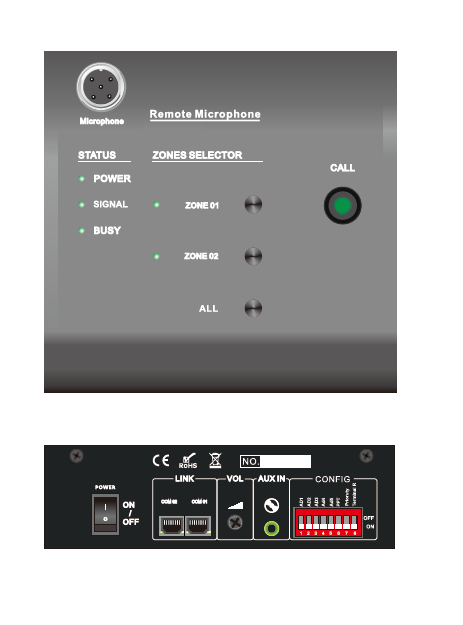

  • Zone or all zones selection button.
  • Zone selection and status indicators (power, active, busy).
  • Call button to activate the announcement after zone selection.
  • With buzzer for reminder before announcement.
  • Two RJ45 ports for amplifier and next remote microphone.
  • Microphone volume control and auxiliary input.
  • Priority switch for configuring master and slave units.
  • CAT6 cable for communication up to 300 metres.

Parameters

  • Operating power consumption: 3W
  • Zones: 2
  • Auxiliary input with level control: 350mV, 10kΩ
  • Microphone input: 5 mV, 600Ω
  • Frequency range: 80Hz~16kHz
  • THD: <1% at RMS, 1KHz
  • Permissible ambient temperature: -20°C to +70°C
  • Dimensions: 153×52×175mm
  • Power supply: Direct from amplifier, 24V DC, ±20%
  • Weight: 0.8 kg

Product code: KSM-1202

Unit of sale: piece

Specifications:
Audio frequency range: 80 - 16.000 Hz
mono/stereo/set: mono
